SLNR6312 シリーズ

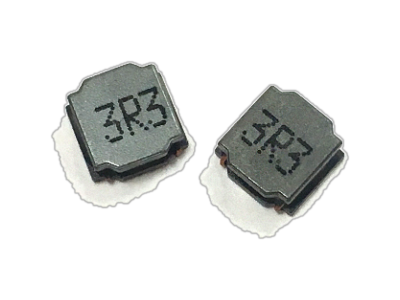

• Miniature SMD shielded power inductor.
• Low profile 1.2mm max height.
• Inductance range of 2.50uH to 100.0uH.
• Ideal for DC to DC power converter application.
• Operating temperature range of -55.0 °C ~ +130.0°C.
• RoHS and HF compliant.
• Tape and Reel quantities: 1,000pcs, 7” Reel.
• Low profile 1.2mm max height.
• Inductance range of 2.50uH to 100.0uH.
• Ideal for DC to DC power converter application.
• Operating temperature range of -55.0 °C ~ +130.0°C.
• RoHS and HF compliant.
• Tape and Reel quantities: 1,000pcs, 7” Reel.
| 部品番号 | Length (mm) Max | Height (mm) Max | Dimension W (mm) Max | Description | ダウンロード | |
|---|---|---|---|---|---|---|
| 6.3 | 1.2 | 6.3 | 6.8uH, 20%, 165mOhm, 1.3Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 1.2 | 6.3 | 68uH, 20%, 1350mOhm, 0.44Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 1.2 | 6.3 | 5.3uH, 20%, 125mOhm, 1.5Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 1.2 | 6.3 | 4uH, 30%, 105mOhm, 1.8Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 1.2 | 6.3 | 47uH, 20%, 1050mOhm, 0.52Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 1.2 | 6.3 | 33uH, 20%, 700mOhm, 0.59Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 1.2 | 6.3 | 2.5uH, 30%, 90mOhm, 2.1Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 1.2 | 6.3 | 22uH, 20%, 530mOhm, 0.76Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 1.2 | 6.3 | 15uH, 20%, 330mOhm, 0.8Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 1.2 | 6.3 | 100uH, 20%, 2180mOhm, 0.35Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 1.2 | 6.3 | 10uH, 20%, 235mOhm, 1Amp Max. SMD Shielded Drum Inductor | Data Sheet |
