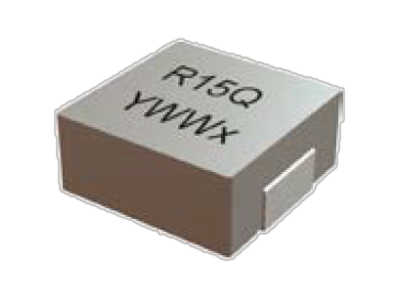

SM2011Q Serie
• AEC-Q200 Grade 1 Compliant .
• 5.70 x 5.40 mm foot Print, 3.00mm Max. height SMD Power Inductor for high frequency
• application, Operating frequency up to 5MHz.
• Inductance range from 0.47uH to 10.0uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter.
• Operating Temperature Range: -55˚C to 165˚C (ambient + self-temperature rise) .
• T & R Qtys: 2000 pcs , 13'' Reel and Plastic tape: 12mm wide, 8mm pocket spacing.
• RoHS and HF Compliant.
• 5.70 x 5.40 mm foot Print, 3.00mm Max. height SMD Power Inductor for high frequency
• application, Operating frequency up to 5MHz.
• Inductance range from 0.47uH to 10.0uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter.
• Operating Temperature Range: -55˚C to 165˚C (ambient + self-temperature rise) .
• T & R Qtys: 2000 pcs , 13'' Reel and Plastic tape: 12mm wide, 8mm pocket spacing.
• RoHS and HF Compliant.
| Numero di parte | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Scarica | |
|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 0.75 | 6.8 | 10 | 11.5 | 5.7 | 5.4 | 0.75uH, 20%, 6.8mOhm, 11.5A Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 0.68 | 6.75 | 10 | 13 | 5.7 | 5.4 | 0.68uH, 20%, 6.75mOhm, 13A Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 0.47 | 5.25 | 11 | 13 | 5.7 | 5.4 | 0.47uH, 20%, 5.25mOhm, 13A Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 6.8 | 63.5 | 3 | 4 | 5.7 | 5.4 | 6.8uH, 20%, 63.5mOhm, 4A Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 5.6 | 51 | 3.5 | 4.6 | 5.7 | 5.4 | 5.6uH, 20%, 51mOhm, 4.6A Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 4.7 | 40 | 4.8 | 5.8 | 5.7 | 5.4 | 4.7uH, 20%, 40mOhm, 5.8A Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 3.3 | 30 | 5.5 | 7.5 | 5.7 | 5.4 | 3.3uH, 20%, 30mOhm, 7.5A Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 2.2 | 20.4 | 7.5 | 7.8 | 5.7 | 5.4 | 2.2uH, 20%, 20.4mOhm, 7.8A Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 1.5 | 14.6 | 8.5 | 9.5 | 5.7 | 5.4 | 1.5uH, 20%, 14.6mOhm, 9.5A Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 1 | 9 | 8.8 | 9.5 | 5.7 | 5.4 | 1uH, 20%, 9mOhm, 9.5A Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 10 | 80 | 2.5 | 2.6 | 5.7 | 5.4 | 10uH, 20%, 80mOhm, 2.6A Max. SMD Molded Inductor | Data Sheet |
