- DIP

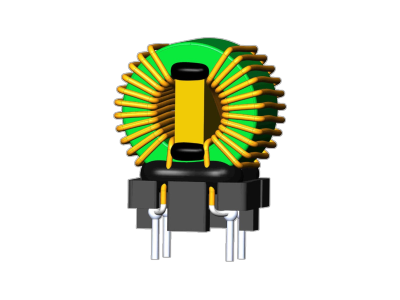

C201021A シリーズ
• 17.50 × 13.00mm Max.(L×W),22.0mm Max. Height.
• Inductance range: 1.0mH～20.0mH,Custom values are welcomed.
• AC common mode noise filter for Power Supplies and Lighting Application.
• Rated Voltage: 250VAC.
• Dielectric strength:1500Vrms,winding to winding.
• UL 94 V-0 Material.
• Operating temperature: -40 to +125℃.
• RoHs & HF Compliant Components.
• Inductance range: 1.0mH～20.0mH,Custom values are welcomed.
• AC common mode noise filter for Power Supplies and Lighting Application.
• Rated Voltage: 250VAC.
• Dielectric strength:1500Vrms,winding to winding.
• UL 94 V-0 Material.
• Operating temperature: -40 to +125℃.
• RoHs & HF Compliant Components.
| 部品番号 | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | ダウンロード | |||
|---|---|---|---|---|---|---|---|---|
| 22 | 17.5 | 13 | 3.3mH, 30%, 112.0mOhm, 1.5A Max. DIP Common Mode Choke | Data Sheet | LT Spice | LT Spice | S Parameter | |
| 22 | 17.5 | 13 | 2.2mH, 30%, 62.0mOhm, 2.0A Max. DIP Common Mode Choke | Data Sheet | LT Spice | LT Spice | S Parameter | |
| 22 | 17.5 | 13 | 20.0mH, 30%, 540.0mOhm, 0.5A Max. DIP Common Mode Choke | Data Sheet | LT Spice | LT Spice | S Parameter | |
| 22 | 17.5 | 13 | 10.0mH, 30%, 345.0mOhm, 1.0A Max. DIP Common Mode Choke | Data Sheet | LT Spice | LT Spice | S Parameter | |
| 22 | 17.5 | 13 | 1.0mH, 30%, 30.0mOhm, 3.0A Max. DIP Common Mode Choke | Data Sheet | LT Spice | LT Spice | S Parameter |
