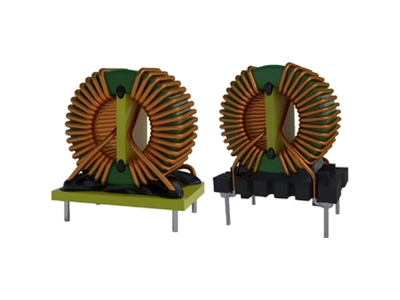

C201367A シリーズ
• 31.5 × 23.5mm Max.(L×W), 35.0mm Max. Height.
• Inductance range: 1.0mH～5.0mH,Custom values are welcomed.
• AC common mode noise filter for Power Supplies and Lighting Application.
• Dielectric strength:1500Vrms,winding to winding.
• UL 94 V-0 Material.
• Operating temperature: -40 to +125℃.
• Inductance range: 1.0mH～5.0mH,Custom values are welcomed.
• AC common mode noise filter for Power Supplies and Lighting Application.
• Dielectric strength:1500Vrms,winding to winding.
• UL 94 V-0 Material.
• Operating temperature: -40 to +125℃.
| 部品番号 | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | ダウンロード | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| 35 | 30.5 | 21 | 5.0mH, 30%, 45.0mOhm, 5.0A Max. DIP Common Mode Choke | Data Sheet | LT Spice | LT Spice | S Parameter | |||
| 35 | 30.5 | 21 | 3.3mH, 30%, 25.0mOhm, 6.8A Max. DIP Common Mode Choke | Data Sheet | LT Spice | LT Spice | S Parameter | 3D Step File | ||
| 35 | 30.5 | 21 | 2.2mH, 30%, 14.0mOhm, 9.0A Max. DIP Common Mode Choke | Data Sheet | LT Spice | LT Spice | S Parameter | |||
| 30 | 31.5 | 23.5 | 1.5mH, 30%, 11.0mOhm, 10.0A Max. DIP Common Mode Choke | Data Sheet | LT Spice | LT Spice | S Parameter | |||
| 30 | 31.5 | 23.5 | 1.0mH, 30%, 8.0mOhm, 12.0A Max. DIP Common Mode Choke | Data Sheet | LT Spice | LT Spice | S Parameter |
