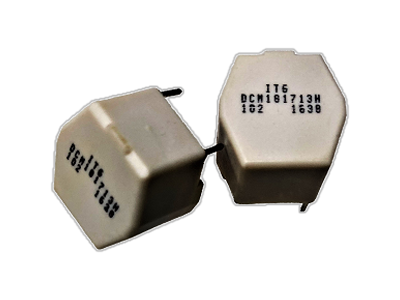

DCM181713H シリーズ
• 18.0×17.5mm Max.(L×W),13.0mm Max. Height.
• Inductance range: 0.70mH～39.0mH,Custom values are welcomed.
• Ideally used as AC common mode noise filter for TV, VCR, Switch Mode Power Supply, Inverter, Industrial Equipment.
• Attenuation and control unit with better characteristics in low frequency band.
• Dielectric strength:1500Vrms,winding to winding.
• UL Class B Compliance Common Mode Chokes.
• Operating temperature:-55 to +130℃.
• Inductance range: 0.70mH～39.0mH,Custom values are welcomed.
• Ideally used as AC common mode noise filter for TV, VCR, Switch Mode Power Supply, Inverter, Industrial Equipment.
• Attenuation and control unit with better characteristics in low frequency band.
• Dielectric strength:1500Vrms,winding to winding.
• UL Class B Compliance Common Mode Chokes.
• Operating temperature:-55 to +130℃.
| 部品番号 | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | ダウンロード | ||||
|---|---|---|---|---|---|---|---|---|---|
| 13 | 18 | 17.5 | 700uH, 30%, 27mOhm, 5Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 13 | 18 | 17.5 | 6,800uH, 30%, 280mOhm, 1.2Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 13 | 18 | 17.5 | 39,000uH, 30%, 1700mOhm, 0.3Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 13 | 18 | 17.5 | 3,300uH, 30%, 140mOhm, 1.5Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 13 | 18 | 17.5 | 27,000uH, 30%, 1200mOhm, 0.4Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 13 | 18 | 17.5 | 2,200uH, 30%, 90mOhm, 2Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 13 | 18 | 17.5 | 15,000uH, 30%, 780mOhm, 0.5Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 13 | 18 | 17.5 | 10,000uH, 30%, 500mOhm, 0.7Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 13 | 18 | 17.5 | 1,000uH, 30%, 55mOhm, 2.5Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter |
