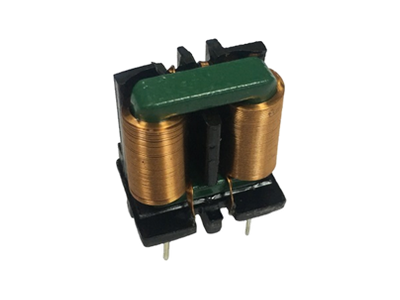

FCM231426V シリーズ
• 23.0×14mm Max.(L×W),25.5mm Max. Height
• Single Layer flat wire design which can reduce high-frequency noise and skin effect loss.Inductance range: 6.00mH～15.0mH, Custom values are welcomed.
• Ideally used as AC common mode noise filter for TV, VCR, switch mode power supply, inverter, measurement, attenuation and control unit with better characteristics in low frequency band.
• Dielectric strength: 1800Vrms, winding to winding
• Insulation Resistance: 100MΩ Min (Coil to core) at 500Vdc
• Operating temperature: -25 to +105℃
• RoHS & HF compliant
• Single Layer flat wire design which can reduce high-frequency noise and skin effect loss.Inductance range: 6.00mH～15.0mH, Custom values are welcomed.
• Ideally used as AC common mode noise filter for TV, VCR, switch mode power supply, inverter, measurement, attenuation and control unit with better characteristics in low frequency band.
• Dielectric strength: 1800Vrms, winding to winding
• Insulation Resistance: 100MΩ Min (Coil to core) at 500Vdc
• Operating temperature: -25 to +105℃
• RoHS & HF compliant
| 部品番号 | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | ダウンロード | ||||
|---|---|---|---|---|---|---|---|---|---|
| 25.5 | 24 | 14 | 10.0mH, 30%, 90.0mOhm, 2.6A Common Mode Choke | Data Sheet | |||||
| 25.5 | 23 | 14 | 6mH, 30%, 53 mOhm DCR, 3.2A Common Mode Choke | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 25.5 | 23 | 14 | 15mH, 30%, 200 mOhm DCR, 5.2A Common Mode Choke | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 25.5 | 23 | 14 | 10mH, 30%, 128 mOhm DCR, 2A Common Mode Choke | Data Sheet | LT Spice | LT Spice | S Parameter |
