- DIP
L201392A シリーズ

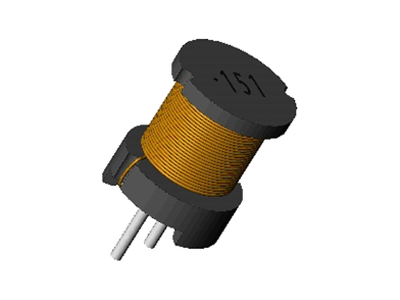

• Radial leaded unshielded Drum Inductor.
• Low DC Resistance for high current application.
• Ideal for noise filtering, storage and DC
• DC convertor applications.
• Inductance Range of 150.0uH to 1000.0uH,Custom values are welcomed.
• Surge Voltage: 400VDC.
• Operating Temperature Range: -55°C to + 130°C , RoHS & HF compliant.
• Low DC Resistance for high current application.
• Ideal for noise filtering, storage and DC
• DC convertor applications.
• Inductance Range of 150.0uH to 1000.0uH,Custom values are welcomed.
• Surge Voltage: 400VDC.
• Operating Temperature Range: -55°C to + 130°C , RoHS & HF compliant.
| 部品番号 | Length (mm) Max | Height (mm) Max | Dimension W (mm) Max | Description | ダウンロード | ||
|---|---|---|---|---|---|---|---|
| 8.3 | 10 | 8.3 | 820.0uH, 10%, 1.365mOhm, 0.64A Max. DIP Drum Inductor | Data Sheet | |||
| 8.3 | 10 | 8.3 | 680.0uH, 10%, 1.220mOhm, 0.73A Max. DIP Drum Inductor | Data Sheet | |||
| 8.3 | 10 | 8.3 | 560.0uH, 10%, 1.050mOhm, 0.78A Max. DIP Drum Inductor | Data Sheet | |||
| 8.3 | 10 | 8.3 | 470.0uH, 10%, 0.813mOhm, 0.84A Max. DIP Drum Inductor | Data Sheet | |||
| 8.3 | 10 | 8.3 | 330.0uH, 10%, 0.532mOhm, 0.94A Max. SIP Drum Inductor | Data Sheet | |||
| 8.3 | 10 | 8.3 | 220.0uH, 10%, 0.423mOhm, 1.20A Max. DIP Drum Inductor | Data Sheet | |||
| 8.3 | 10 | 8.3 | 1.80uH, 10%, 0.345mOhm, 1.40A Max. DIP Drum Inductor | Data Sheet | |||
| 8.3 | 10 | 8.3 | 150.0uH, 10%, 0.255mOhm, 1.50A Max. DIP Drum Inductor | Data Sheet | |||
| 8.3 | 10 | 8.3 | 1000.0uH, 10%, 1.780mOhm, 0.56A Max. DIP Drum Inductor | Data Sheet | 3D Step File |
