- DIP

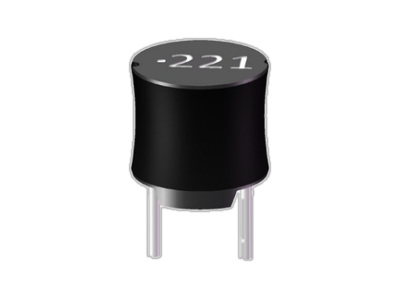

SCH3028T シリーズ
• Radial leaded unshielded Drum Inductor.
• Low DC Resistance for high current application.
• With UL rated shrink sleeve wrap to protect the winding.
• Ideal for noise filtering, storage and DC
• DC convertor applications.
• Inductance Range of 3.3uH to 1000.0uH,Custom values are welcomed.
• Operating Temperature Range: -55°C to + 130°C , RoHS & HF compliant.
• Low DC Resistance for high current application.
• With UL rated shrink sleeve wrap to protect the winding.
• Ideal for noise filtering, storage and DC
• DC convertor applications.
• Inductance Range of 3.3uH to 1000.0uH,Custom values are welcomed.
• Operating Temperature Range: -55°C to + 130°C , RoHS & HF compliant.
| 部品番号 | Length (mm) Max | Height (mm) Max | Dimension W (mm) Max | Description | ダウンロード | |
|---|---|---|---|---|---|---|
| 7.5 | 7 | 7.5 | 8.2uH, 20%, 30mOhm, 3.7Amp Max. DIP Drum Inductor | Data Sheet | ||
| 7.5 | 7 | 7.5 | 820uH, 10%, 2,428mOhm, 0.37Amp Max. DIP Drum Inductor | Data Sheet | ||
| 7.5 | 7 | 7.5 | 82uH, 20%, 247mOhm, 1.12Amp Max. DIP Drum Inductor | Data Sheet | ||
| 7.5 | 7 | 7.5 | 6.8uH, 20%, 27mOhm, 3.8Amp Max. DIP Drum Inductor | Data Sheet | ||
| 7.5 | 7 | 7.5 | 680uH, 10%, 1,957mOhm, 0.4Amp Max. DIP Drum Inductor | Data Sheet | ||
| 7.5 | 7 | 7.5 | 68uH, 20%, 209mOhm, 1.25Amp Max. DIP Drum Inductor | Data Sheet | ||
| 7.5 | 7 | 7.5 | 5.6uH, 20%, 21mOhm, 4.2Amp Max. DIP Drum Inductor | Data Sheet | ||
| 7.5 | 7 | 7.5 | 560uH, 10%, 1,574mOhm, 0.42Amp Max. DIP Drum Inductor | Data Sheet | ||
| 7.5 | 7 | 7.5 | 56uH, 20%, 167mOhm, 1.3Amp Max. DIP Drum Inductor | Data Sheet | ||
| 7.5 | 7 | 7.5 | 4.7uH, 20%, 19mOhm, 4.8Amp Max. DIP Drum Inductor | Data Sheet | ||
| 7.5 | 7 | 7.5 | 470uH, 10%, 1,381mOhm, 0.47Amp Max. DIP Drum Inductor | Data Sheet | ||
| 7.5 | 7 | 7.5 | 47uH, 20%, 138mOhm, 1.5Amp Max. DIP Drum Inductor | Data Sheet | ||
| 7.5 | 7 | 7.5 | 3.3uH, 20%, 13mOhm, 5.5Amp Max. DIP Drum Inductor | Data Sheet | ||
| 7.5 | 7 | 7.5 | 39uH, 20%, 112mOhm, 1.6Amp Max. DIP Drum Inductor | Data Sheet | ||
| 7.5 | 7 | 7.5 | 330uH, 10%, 1,016mOhm, 0.6Amp Max. DIP Drum Inductor | Data Sheet | ||
| 7.5 | 7 | 7.5 | 33uH, 20%, 102mOhm, 1.7Amp Max. DIP Drum Inductor | Data Sheet | ||
| 7.5 | 7 | 7.5 | 27uH, 20%, 81mOhm, 1.9Amp Max. DIP Drum Inductor | Data Sheet | ||
| 7.5 | 7 | 7.5 | 220uH, 10%, 642mOhm, 0.68Amp Max. DIP Drum Inductor | Data Sheet | ||
| 7.5 | 7 | 7.5 | 22uH, 20%, 67mOhm, 2.1Amp Max. DIP Drum Inductor | Data Sheet | ||
| 7.5 | 7 | 7.5 | 180uH, 10%, 600mOhm, 0.77Amp Max. DIP Drum Inductor | Data Sheet | ||
| 7.5 | 7 | 7.5 | 18uH, 20%, 61mOhm, 2.4Amp Max. DIP Drum Inductor | Data Sheet | ||
| 7.5 | 7 | 7.5 | 150uH, 10%, 428mOhm, 0.85Amp Max. DIP Drum Inductor | Data Sheet | ||
| 7.5 | 7 | 7.5 | 15uH, 20%, 49mOhm, 2.6Amp Max. DIP Drum Inductor | Data Sheet | ||
| 7.5 | 7 | 7.5 | 120uH, 10%, 367mOhm, 0.95Amp Max. DIP Drum Inductor | Data Sheet | ||
| 7.5 | 7 | 7.5 | 12uH, 20%, 41mOhm, 2.9Amp Max. DIP Drum Inductor | Data Sheet | ||
| 7.5 | 7 | 7.5 | 1,000uH, 10%, 2,834mOhm, 0.34Amp Max. DIP Drum Inductor | Data Sheet | ||
| 7.5 | 7 | 7.5 | 100uH, 10%, 287mOhm, 1.02Amp Max. DIP Drum Inductor | Data Sheet | ||
| 7.5 | 7 | 7.5 | 10uH, 20%, 36mOhm, 3.2Amp Max. DIP Drum Inductor | Data Sheet |
