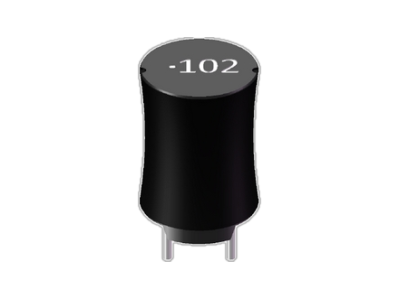

SCH3753T シリーズ
• Radial leaded unshielded Drum Inductor.
• Low DC Resistance for high current application.
• With UL rated shrink sleeve wrap to protect the winding.
• Ideal for noise filtering, storage and DC
• DC convertor applications.
• Inductance Range of 3.3uH to 1000.0uH,Custom values are welcomed.
• Operating Temperature Range: -55°C to + 130°C , RoHS & HF compliant.
• Low DC Resistance for high current application.
• With UL rated shrink sleeve wrap to protect the winding.
• Ideal for noise filtering, storage and DC
• DC convertor applications.
• Inductance Range of 3.3uH to 1000.0uH,Custom values are welcomed.
• Operating Temperature Range: -55°C to + 130°C , RoHS & HF compliant.
| 部品番号 | Length (mm) Max | Height (mm) Max | Dimension W (mm) Max | Description | ダウンロード | |
|---|---|---|---|---|---|---|
| 9.5 | 13.5 | 9.5 | 8.2uH, 20%, 15mOhm, 7.9Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9.5 | 13.5 | 9.5 | 820uH, 10%, 992mOhm, 0.83Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9.5 | 13.5 | 9.5 | 82uH, 20%, 106mOhm, 2.6Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9.5 | 13.5 | 9.5 | 6.8uH, 20%, 12mOhm, 8.8Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9.5 | 13.5 | 9.5 | 680uH, 10%, 867mOhm, 0.9Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9.5 | 13.5 | 9.5 | 68uH, 20%, 92mOhm, 2.8Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9.5 | 13.5 | 9.5 | 5.6uH, 20%, 10mOhm, 9.7Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9.5 | 13.5 | 9.5 | 560uH, 10%, 698mOhm, 0.98Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9.5 | 13.5 | 9.5 | 56uH, 20%, 71mOhm, 3Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9.5 | 13.5 | 9.5 | 4.7uH, 20%, 8mOhm, 10.8Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9.5 | 13.5 | 9.5 | 470uH, 10%, 562mOhm, 1.1Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9.5 | 13.5 | 9.5 | 47uH, 20%, 64mOhm, 3.3Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9.5 | 13.5 | 9.5 | 3.3uH, 20%, 7mOhm, 11.7Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9.5 | 13.5 | 9.5 | 39uH, 20%, 56mOhm, 3.7Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9.5 | 13.5 | 9.5 | 330uH, 10%, 403mOhm, 1.25Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9.5 | 13.5 | 9.5 | 33uH, 20%, 45mOhm, 4Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9.5 | 13.5 | 9.5 | 27uH, 20%, 36mOhm, 4.5Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9.5 | 13.5 | 9.5 | 220uH, 10%, 278mOhm, 1.5Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9.5 | 13.5 | 9.5 | 22uH, 20%, 31mOhm, 4.9Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9.5 | 13.5 | 9.5 | 180uH, 10%, 242mOhm, 1.7Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9.5 | 13.5 | 9.5 | 18uH, 20%, 25mOhm, 5.3Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9.5 | 13.5 | 9.5 | 150uH, 10%, 193mOhm, 1.9Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9.5 | 13.5 | 9.5 | 15uH, 20%, 24mOhm, 5.8Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9.5 | 13.5 | 9.5 | 120uH, 10%, 157mOhm, 2.1Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9.5 | 13.5 | 9.5 | 12uH, 20%, 20mOhm, 6.3Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9.5 | 13.5 | 9.5 | 1,000uH, 10%, 1,224mOhm, 0.7Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9.5 | 13.5 | 9.5 | 100uH, 10%, 141mOhm, 2.4Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9.5 | 13.5 | 9.5 | 10uH, 20%, 17mOhm, 7Amp Max. DIP Drum Inductor | Data Sheet |
