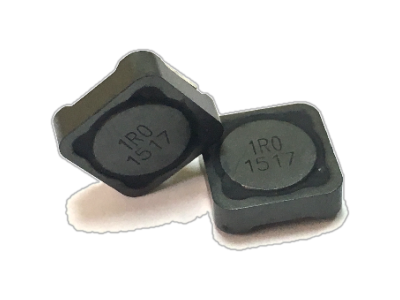

SDRH124 シリーズ
• Ferrite based SMD Inductor with lower core loss.
• Inductance Range: 2.4uH to 330.0uH. Custom values welcomed.
• High current output chokes, up to 6.5 Amp with 25% roll off.
• Footprint 12.5 x 12.5mm Max.
• Ideal for LCD Driver, DSC
• DVC, Notebook PC or High Density Board Design.
• Quantity Per Reel: 750 pcs per 13" Reel
• Operating Temperature Range -55°C to + 130°C
• Inductance Range: 2.4uH to 330.0uH. Custom values welcomed.
• High current output chokes, up to 6.5 Amp with 25% roll off.
• Footprint 12.5 x 12.5mm Max.
• Ideal for LCD Driver, DSC
• DVC, Notebook PC or High Density Board Design.
• Quantity Per Reel: 750 pcs per 13" Reel
• Operating Temperature Range -55°C to + 130°C
| 部品番号 | Length (mm) Max | Height (mm) Max | Dimension W (mm) Max | Description | ダウンロード | |
|---|---|---|---|---|---|---|
| 12.5 | 4.5 | 12.5 | 8.2uH, 30%, 26mOhm, 4.6Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 4.5 | 12.5 | 8.2uH, 20%, 26mOhm, 4.6Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 4.5 | 12.5 | 82uH, 20%, 260mOhm, 1.3Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 4.5 | 12.5 | 6.8uH, 30%, 23mOhm, 4.9Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 4.5 | 12.5 | 6.8uH, 20%, 23mOhm, 4.9Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 4.5 | 12.5 | 68uH, 20%, 220mOhm, 1.5Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 4.5 | 12.5 | 56uH, 20%, 190mOhm, 1.8Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 4.5 | 12.5 | 4.7uH, 30%, 18mOhm, 5.7Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 4.5 | 12.5 | 4.7uH, 20%, 18mOhm, 5.7Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 4.5 | 12.5 | 47uH, 20%, 160mOhm, 1.9Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 4.5 | 12.5 | 3.3uH, 30%, 15mOhm, 6.5Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 4.5 | 12.5 | 3.3uH, 20%, 15mOhm, 6.5Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 4.5 | 12.5 | 39uH, 20%, 132mOhm, 2.1Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 4.5 | 12.5 | 330uH, 20%, 990mOhm, 0.5Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 4.5 | 12.5 | 33uH, 20%, 97mOhm, 2.7Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 4.5 | 12.5 | 2.4uH, 30%, 14mOhm, 4.9Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 4.5 | 12.5 | 2.4uH, 20%, 14mOhm, 4.9Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 4.5 | 12.5 | 270uH, 20%, 870mOhm, 0.6Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 4.5 | 12.5 | 27uH, 20%, 80mOhm, 2.8Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 4.5 | 12.5 | 220uH, 20%, 700mOhm, 0.8Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 4.5 | 12.5 | 22uH, 20%, 66mOhm, 2.9Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 4.5 | 12.5 | 180uH, 20%, 620mOhm, 0.85Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 4.5 | 12.5 | 18uH, 20%, 57mOhm, 3.1Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 4.5 | 12.5 | 150uH, 20%, 530mOhm, 0.95Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 4.5 | 12.5 | 15uH, 20%, 50mOhm, 3.2Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 4.5 | 12.5 | 120uH, 20%, 380mOhm, 1.1Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 4.5 | 12.5 | 12uH, 20%, 38mOhm, 4Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 4.5 | 12.5 | 100uH, 20%, 308mOhm, 1.2Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 4.5 | 12.5 | 10uH, 20%, 28mOhm, 4.5Amp Max. SMD Shielded Drum Inductor | Data Sheet |
