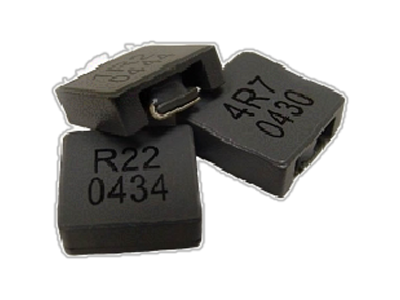

SC5021 シリーズ
• 0.50” Package SMD Power Inductor.
• Ideal for DC to DC converter. VRM & High density board design.
• Low leakage flux.
• Shielded inductor design.
• Low profile 5.7mm maximum height.
• Suitable for IR reflow and wave solder process.
• Tight DCR tolerance features for current sensing application.
• RoHS and HF Compliant.
• T & R Qtys: 500pcs, 13” Reel.
• Ideal for DC to DC converter. VRM & High density board design.
• Low leakage flux.
• Shielded inductor design.
• Low profile 5.7mm maximum height.
• Suitable for IR reflow and wave solder process.
• Tight DCR tolerance features for current sensing application.
• RoHS and HF Compliant.
• T & R Qtys: 500pcs, 13” Reel.
| 部品番号 | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | ダウンロード | |
|---|---|---|---|---|---|---|
| 5.7 | 13.5 | 13 | 0.8uH, 20%, 1.42mOhm, 38Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 5.7 | 13.5 | 13 | 0.5uH, 20%, 0.82mOhm, 60Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 5.7 | 13.5 | 13 | 1uH, 20%, 1.42mOhm, 37Amp Max. SMD Flat Wire Inductor | Data Sheet |
