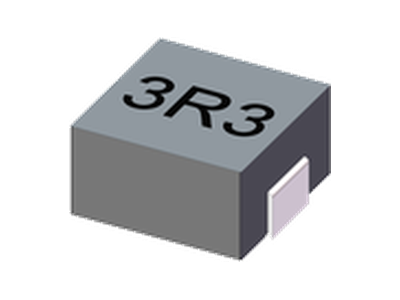

SMHC2011 シリーズ
• Molding Inductor with lower core loss for high frequency(5MHz+) application.
• Inductance Range:0.20uH to 6.8uH. Custom values are welcomed.
• High current output chokes, up to 25.0 Amp.with approx. 30% roll off.
• Ideal for desktop computers,servers,workstations,VGA card ,High-End switches and routers,Voltage-regulator modules & High Density Board Design.
• Very low DC resistance and compact size,high performance,low cost.
• Operating Temperature Range -55°C to + 130°C ; RoHs & HF compliance.
• T & R Qtys: 1000 pcs , 13'' Reel
• Inductance Range:0.20uH to 6.8uH. Custom values are welcomed.
• High current output chokes, up to 25.0 Amp.with approx. 30% roll off.
• Ideal for desktop computers,servers,workstations,VGA card ,High-End switches and routers,Voltage-regulator modules & High Density Board Design.
• Very low DC resistance and compact size,high performance,low cost.
• Operating Temperature Range -55°C to + 130°C ; RoHs & HF compliance.
• T & R Qtys: 1000 pcs , 13'' Reel
| 部品番号 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | ダウンロード | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 0.68 | 11 | 8.5 | 17 | 4.95 | 5.25 | 0.68uH, 20%, 11mOhm, 17Amp Max. SMD Molded Inductor | Data Sheet | |||
| 3 | 0.2 | 4.2 | 15 | 25 | 4.95 | 5.35 | 0.2uH, 20%, 4.2mOhm, 25Amp Max. SMD Molded Inductor | Data Sheet | |||
| 3 | 4.7 | 59 | 3.5 | 5.2 | 5.43 | 5.74 | 4.7uH, 20%, 59mOhm, 5.2Amp Max. SMD Molded Inductor | Data Sheet | |||
| 3 | 3.3 | 32 | 5 | 9 | 5.43 | 5.74 | 3.3uH, 20%, 32mOhm, 9Amp Max. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 3 | 2.2 | 29 | 5.5 | 10 | 4.95 | 5.25 | 2.2uH, 20%, 29mOhm, 10Amp Max. SMD Molded Inductor | Data Sheet | |||
| 3 | 1.5 | 20 | 6 | 11 | 4.95 | 5.25 | 1.5uH, 20%, 20mOhm, 11Amp Max. SMD Molded Inductor | Data Sheet | |||
| 3 | 1.2 | 15 | 6.5 | 12 | 4.95 | 5.25 | 1.2uH, 20%, 15mOhm, 12Amp Max. SMD Molded Inductor | Data Sheet | |||
| 3 | 1 | 13 | 7 | 13 | 4.95 | 5.25 | 1uH, 20%, 13mOhm, 13Amp Max. SMD Molded Inductor | Data Sheet |
