- DIP

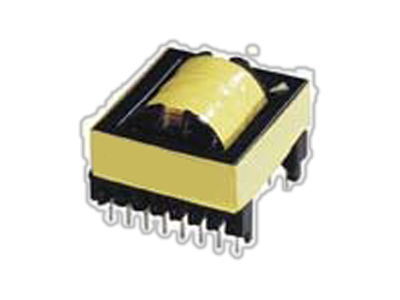

PFC02454440DH シリーズ
• Ferrite cores are used to realize lower core loss.
• Ideally used as Power Factor Correction choke.
• Also can be used as boost inductor in power supplies.
• 45.0mm×44.0×40.0mm (L×W×H) Max. Custom value are welcomed.
• Operating Temperature Range -55°C to + 130°C; RoHs & HF compliance.
• Ideally used as Power Factor Correction choke.
• Also can be used as boost inductor in power supplies.
• 45.0mm×44.0×40.0mm (L×W×H) Max. Custom value are welcomed.
• Operating Temperature Range -55°C to + 130°C; RoHs & HF compliance.
| 部品番号 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Dimension L (mm) Max | Dimension W (mm) Max | Description | ダウンロード |
|---|---|---|---|---|---|---|---|
| 40 | 250 | 80.78 | 45 | 44 | 250uH, 20%, 80.78mOhm, 12Amp Max. DIP PFC Chokes | Data Sheet | |
| 40 | 220 | 81.36 | 45 | 44 | 220uH, 20%, 81.36mOhm, 14Amp Max. DIP PFC Chokes | Data Sheet |
