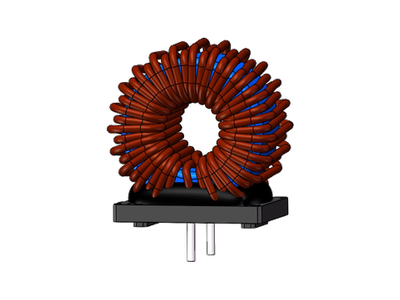

PFC104124D シリーズ
• Alloy powder based DIP Inductor with lower core loss
• No thermal aging concerns
• Low leakage magnetic flux
• Elimination for impulse (EMI) noise
• Inductance Range: 100.0uH to 1000.0uH, custom values are welcomed
• High current output chokes, up to 16.1 Amp with approx. 50% roll off
• Designed and developed for Power Factor Correction applications
• Foot Print: 26.5×18.5mm max., 31.5 max. Height
• Surge Voltage: 400VDC
• Operating Temperature Range: -55°C to + 130°C
• RoHs & HF compliant
• No thermal aging concerns
• Low leakage magnetic flux
• Elimination for impulse (EMI) noise
• Inductance Range: 100.0uH to 1000.0uH, custom values are welcomed
• High current output chokes, up to 16.1 Amp with approx. 50% roll off
• Designed and developed for Power Factor Correction applications
• Foot Print: 26.5×18.5mm max., 31.5 max. Height
• Surge Voltage: 400VDC
• Operating Temperature Range: -55°C to + 130°C
• RoHs & HF compliant
| 部品番号 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Dimension L (mm) Max | Dimension W (mm) Max | Description | ダウンロード | |
|---|---|---|---|---|---|---|---|---|
| 31.5 | 1000 | 385 | 26.5 | 18.5 | Power Factor Correction Chokes 1000.0uH, 5.1Amp, 385.0mOhm | Data Sheet | ||
| 31.5 | 820 | 348 | 26.5 | 18.5 | Power Factor Correction Chokes 820.0uH, 5.6Amp, 348.0mOhm | Data Sheet | ||
| 31.5 | 690 | 272 | 26.5 | 18.5 | Power Factor Correction Chokes 690.0uH, 6.2Amp, 272.0mOhm | Data Sheet | ||
| 31.5 | 560 | 210 | 26.5 | 18.5 | Power Factor Correction Chokes 560.0uH, 6.8Amp, 210.0mOhm | Data Sheet | ||
| 31.5 | 470 | 190 | 26.5 | 18.5 | Power Factor Correction Chokes 470.0uH, 7.5Amp, 19.0mOhm | Data Sheet | ||
| 31.5 | 350 | 133 | 26.5 | 18.5 | Power Factor Correction Chokes 350.0uH, 8.6Amp, 133.0mOhm | Data Sheet | ||
| 31.5 | 250 | 98 | 26.5 | 18.5 | Power Factor Correction Chokes 250.0uH, 10.3Amp, 98.0mOhm | Data Sheet | ||
| 31.5 | 200 | 77 | 26.5 | 18.5 | Power Factor Correction Chokes 200.0uH, 11.5Amp, 77.0mOhm | Data Sheet | ||
| 31.5 | 100 | 40 | 26.5 | 18.5 | Power Factor Correction Chokes 100.0uH, 16.1Amp, 40.0mOhm | Data Sheet |
