- SMD

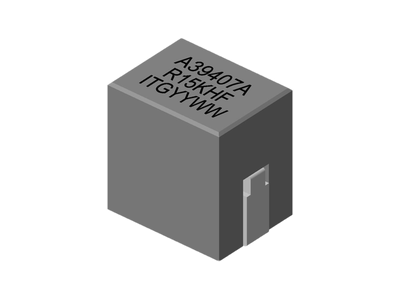

AH39407 シリーズ
• Ferrite based SMD inductor with lower core loss.
• Inductance value: 150.0nH , custom values are welcomed.
• High current output choke of up to 66.0 Amp with approx. 20% roll off.
• Low profile 10.20 mm Max. height.
• 10.00 x 7.30 mm max Foot Print.
• Perfect for high density designs with limited board space.
• Operating frequency of up to 5.0MHz.
• Operating temperature range of -55°C to + 130°C.
• RoHS & HF compliant.
• T & R Qty’s: 350pcs, 13'' Reel.
• Inductance value: 150.0nH , custom values are welcomed.
• High current output choke of up to 66.0 Amp with approx. 20% roll off.
• Low profile 10.20 mm Max. height.
• 10.00 x 7.30 mm max Foot Print.
• Perfect for high density designs with limited board space.
• Operating frequency of up to 5.0MHz.
• Operating temperature range of -55°C to + 130°C.
• RoHS & HF compliant.
• T & R Qty’s: 350pcs, 13'' Reel.
| 部品番号 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | ダウンロード | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10.2 | 0.15 | 0.2 | 61 | 66 | 60 | 10 | 7.3 | 0.15uH, 10%, 0.2mOhm, 66Amp Max. SMD Power bead | Data Sheet |
