- SMD

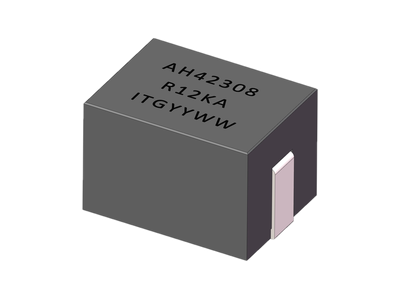

AH42308 シリーズ
• Ferrite based SMD Inductor with lower core loss.
• Inductance Range:120nH to 150nH , Custom values are welcomed.
• High current output chokes, upto 95.0 Amp with approx. 20% roll off.
• Low Profile 7.5 mm max. Height .
• 10.9 x 8.0 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 2.0 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance .
• T & R Qtys: 500 pcs , 13'' Reel.
• Inductance Range:120nH to 150nH , Custom values are welcomed.
• High current output chokes, upto 95.0 Amp with approx. 20% roll off.
• Low Profile 7.5 mm max. Height .
• 10.9 x 8.0 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 2.0 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance .
• T & R Qtys: 500 pcs , 13'' Reel.
| 部品番号 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | ダウンロード | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 7.5 | 0.15 | 0.18 | 70 | 68 | 58 | 10.9 | 8 | 0.15uH, 10%, 0.18mOhm, 68Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.12 | 0.18 | 70 | 95 | 86 | 10.9 | 8 | 0.12uH, 10%, 0.18mOhm, 95Amp Max. SMD Power bead | Data Sheet |
