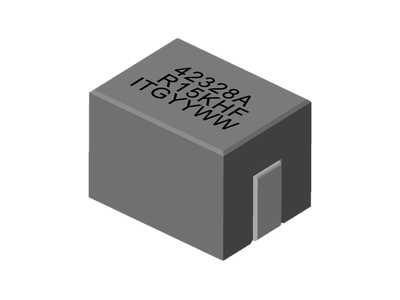

AH42328A シリーズ
• Ferrite based SMD inductor with lower core loss.
• Inductance range: 70nH to 300.0 nH , custom values are welcomed.
• High current output chokes, up to 155.0 Amp with approx. 20% roll off.
• Low profile 7.90 mm typical Height.
• 10.90 x 8.00 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency of up to 5.0 MHz.
• Operating temperature range of -55 C to + 130 C.
• T & R Qty’s: 450pcs, 13'' Reel. RoHS & HF compliant.
• Inductance range: 70nH to 300.0 nH , custom values are welcomed.
• High current output chokes, up to 155.0 Amp with approx. 20% roll off.
• Low profile 7.90 mm typical Height.
• 10.90 x 8.00 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency of up to 5.0 MHz.
• Operating temperature range of -55 C to + 130 C.
• T & R Qty’s: 450pcs, 13'' Reel. RoHS & HF compliant.
| 部品番号 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | ダウンロード | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7.8 | 0.3 | 0.18 | 73 | 33 | 30 | 10.9 | 8 | 0.3uH, 10%, 0.18mOhm, 33Amp Max. SMD Power bead | Data Sheet | 3D Step File | ||||
| 7.8 | 0.27 | 0.18 | 73 | 37 | 34 | 10.9 | 8 | 0.27uH, 10%, 0.18mOhm, 37Amp Max. SMD Power bead | Data Sheet | 3D Step File | ||||
| 7.8 | 0.22 | 0.18 | 73 | 58 | 52 | 10.9 | 8 | 0.22uH, 10%, 0.18mOhm, 58Amp Max. SMD Power bead | Data Sheet | 3D Step File | ||||
| 7.8 | 0.18 | 0.18 | 73 | 66 | 60 | 10.9 | 8 | 0.18uH, 10%, 0.18mOhm, 66Amp Max. SMD Power bead | Data Sheet | 3D Step File | ||||
| 7.8 | 0.17 | 0.18 | 73 | 71 | 64 | 10.9 | 8 | 0.17uH, 10%, 0.18mOhm, 71Amp Max. SMD Power bead | Data Sheet | 3D Step File | ||||
| 7.8 | 0.15 | 0.18 | 73 | 81 | 73 | 10.9 | 8 | 0.15uH, 10%, 0.18mOhm, 81Amp Max. SMD Power bead | Data Sheet | 3D Step File | ||||
| 7.9 | 0.12 | 0.18 | 73 | 100 | 92 | 10.9 | 8 | 0.12uH, 10%, 0.18mOhm, 100Amp Max. SMD Power bead | Data Sheet | 3D Step File | 3D Step File | 3D Step File | ||
| 8.42 | 0.07 | 0.18 | 73 | 155 | 130 | 10.6 | 8 | 70.0nH, 15%, 0.18mOhm, 155.0A Max. SMD Power Bead | Data Sheet | 3D Step File |
