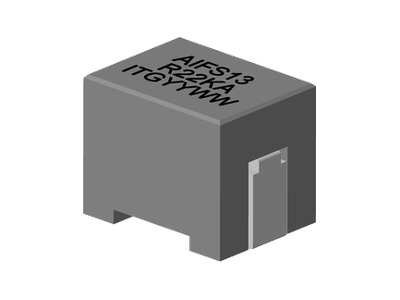

AIFS13 シリーズ
• • Designed for use with Infineon® DrBlade.
• • Ferrite based SMD inductor with lower core loss.
• • Inductance range: 79.0 nH to 300.0 nH , custom values are welcomed.
• • High current output chokes up to 117.0 Amp with approx. 20% roll off.
• • Low profile 9.00 mm Max. height with 0.9mm clearness.
• • 11.00 x 8.20 mm Foot Print.
• • Perfect for high density designs with limited board space.
• • Saves 50% of application board area when compared to standard design approach.
• • Operating frequency of up to 5.0MHz.
• • Operating temperature range of -55°C to + 130°C. RoHS & HF compliant.
• • T & R Qty’s: 400pcs, 13'' Reel.
• • Ferrite based SMD inductor with lower core loss.
• • Inductance range: 79.0 nH to 300.0 nH , custom values are welcomed.
• • High current output chokes up to 117.0 Amp with approx. 20% roll off.
• • Low profile 9.00 mm Max. height with 0.9mm clearness.
• • 11.00 x 8.20 mm Foot Print.
• • Perfect for high density designs with limited board space.
• • Saves 50% of application board area when compared to standard design approach.
• • Operating frequency of up to 5.0MHz.
• • Operating temperature range of -55°C to + 130°C. RoHS & HF compliant.
• • T & R Qty’s: 400pcs, 13'' Reel.
| 部品番号 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | ダウンロード | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 9 | 0.3 | 0.19 | 62 | 38 | 30 | 11 | 8.2 | 0.3uH, 10%, 0.19mOhm, 38Amp Max. SMD Ferrite Inductor | Data Sheet | ||
| 9 | 0.27 | 0.19 | 62 | 40 | 33 | 11 | 8.2 | 0.27uH, 10%, 0.19mOhm, 40Amp Max. SMD Ferrite Inductor | Data Sheet | ||
| 9 | 0.22 | 0.19 | 62 | 51 | 44 | 11 | 8.2 | 0.22uH, 10%, 0.19mOhm, 51Amp Max. SMD Ferrite Inductor | Data Sheet | ||
| 9 | 0.18 | 0.19 | 62 | 64 | 55 | 11 | 8.2 | 0.18uH, 10%, 0.19mOhm, 64Amp Max. SMD Ferrite Inductor | Data Sheet | ||
| 9 | 0.15 | 0.19 | 62 | 79 | 69 | 11 | 8.2 | 0.15uH, 10%, 0.19mOhm, 79Amp Max. SMD Ferrite Inductor | Data Sheet | ||
| 9 | 0.115 | 0.19 | 62 | 95 | 84 | 11 | 8.2 | 0.115uH, 10%, 0.19mOhm, 95Amp Max. SMD Ferrite Inductor | Data Sheet | ||
| 9 | 0.088 | 0.19 | 62 | 112 | 103 | 11 | 8.2 | 0.088uH, 15%, 0.19mOhm, 112Amp Max. SMD Ferrite Inductor | Data Sheet | ||
| 9 | 0.079 | 62 | 117 | 109 | 11 | 8.2 | 0.079uH, 15%, 0.19mOhm, 117Amp Max. SMD Ferrite Inductor | Data Sheet |
