- SMD

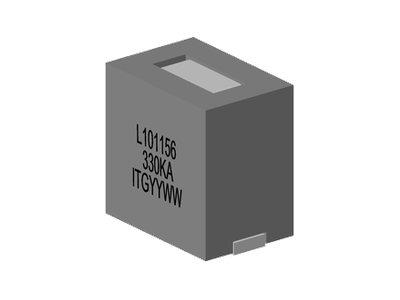

L101156 シリーズ
• T & R Qtys: 400 pcs , 13'' Reel.
• Operating Temperature Range -55°C to + 130°C.
• Rohs and HF Compliance Component.
• Operating frequency up to 1.0 MHz.
• Operating Temperature Range -55°C to + 130°C.
• Rohs and HF Compliance Component.
• Operating frequency up to 1.0 MHz.
| 部品番号 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | ダウンロード | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 0.33 | 0.4 | 44 | 42 | 35 | 10.6 | 7 | 0.33uH, 10%, 0.4mOhm, 42Amp Max. SMD Power bead | Data Sheet | ||
| 10 | 0.27 | 0.4 | 44 | 52 | 43 | 10.6 | 7 | 0.27uH, 10%, 0.4mOhm, 52Amp Max. SMD Power bead | Data Sheet | ||
| 10 | 0.22 | 0.4 | 44 | 64 | 53 | 10.6 | 7 | 0.22uH, 10%, 0.4mOhm, 64Amp Max. SMD Power bead | Data Sheet | ||
| 10 | 0.18 | 0.4 | 44 | 77 | 66 | 10.6 | 7 | 0.18uH, 10%, 0.4mOhm, 77Amp Max. SMD Power bead | Data Sheet | ||
| 10 | 0.15 | 0.4 | 44 | 94 | 78 | 10.6 | 7 | 0.15uH, 10%, 0.4mOhm, 94Amp Max. SMD Power bead | Data Sheet |
