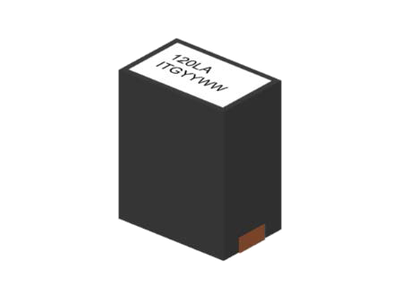

L101347A シリーズ
• Ferrite based SMD inductor with lower core loss.
• Inductance Range: 100.0nH to 120.0nH, Custom values are welcomed.
• High current output chokes, up to 129.0 Amp with approx. 20% roll off.
• Low Profile 12.00 mm Max. height .
• Foot Print 10.00 x 6.40 mm .
• Perfect for high density designs with limited board space.
• Operating frequency up to 5.0 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance .
• T & R Qtys: 300 pcs , 13'' Reel ;
• Inductance Range: 100.0nH to 120.0nH, Custom values are welcomed.
• High current output chokes, up to 129.0 Amp with approx. 20% roll off.
• Low Profile 12.00 mm Max. height .
• Foot Print 10.00 x 6.40 mm .
• Perfect for high density designs with limited board space.
• Operating frequency up to 5.0 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance .
• T & R Qtys: 300 pcs , 13'' Reel ;
| 部品番号 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | ダウンロード | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 0.12 | 0.125 | 78 | 107 | 92 | 10 | 6.4 | 120nH, 15%, 0.125mOhm, 107A Max. SMD Power Bead | Data Sheet | ||
| 12 | 0.1 | 0.125 | 78 | 129 | 110 | 10 | 6.4 | 100nH, 15%, 0.125mOhm, 129A Max. SMD Power Bead | Data Sheet |
