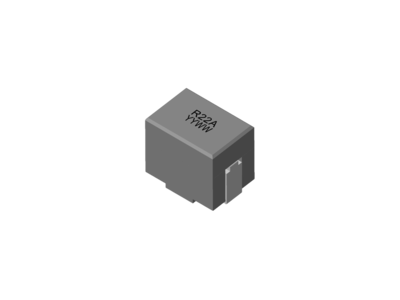

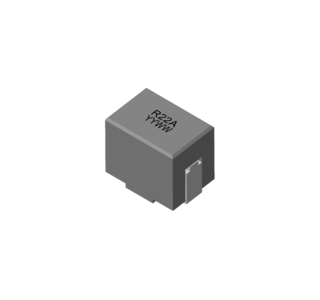

SL4138 シリーズ
• Ferrite based SMD Inductor with lower core loss.
• Inductance Range:220nH to 320nH. Custom values are welcomed.
• High current output chokes, upto 61 Amp with approx. 20% roll off.
• Low Profile 9.5mm Max. height.
• Foot Print 10.9 x 7.5 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs compliance.
• Inductance Range:220nH to 320nH. Custom values are welcomed.
• High current output chokes, upto 61 Amp with approx. 20% roll off.
• Low Profile 9.5mm Max. height.
• Foot Print 10.9 x 7.5 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs compliance.
| 部品番号 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | ダウンロード | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 9.5 | 0.32 | 0.22 | 45 | 36 | 31 | 10.9 | 7.5 | 0.32uH, 10%, 0.22mOhm, 36Amp Max. SMD Power bead | Data Sheet | ||
| 9.5 | 0.22 | 0.22 | 45 | 61 | 52 | 10.9 | 7.5 | 0.22uH, 10%, 0.22mOhm, 61Amp Max. SMD Power bead | Data Sheet |
