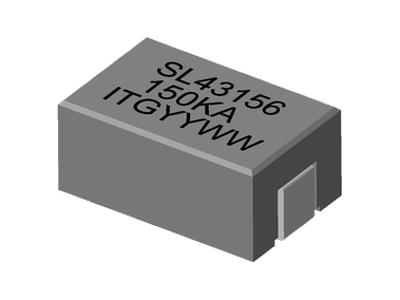

SL43156 シリーズ
• Ferrite based SMD inductor with lower core loss.
• Inductance Range: 100.0 nH to 320.0 nH , custom values are welcomed.
• High current output chokes, up to 48.0 Amp with approx. 20% roll off.
• Low Profile 4.2
• 4.0 mm Max. height.
• 11.00 x 7.00 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 5.0 MHz.
• Operating Temperature Range -55°C to + 130°C. RoHs & HF compliant.
• T & R Qtys: 1200 pcs , 13'' Reel.
• Inductance Range: 100.0 nH to 320.0 nH , custom values are welcomed.
• High current output chokes, up to 48.0 Amp with approx. 20% roll off.
• Low Profile 4.2
• 4.0 mm Max. height.
• 11.00 x 7.00 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 5.0 MHz.
• Operating Temperature Range -55°C to + 130°C. RoHs & HF compliant.
• T & R Qtys: 1200 pcs , 13'' Reel.
| 部品番号 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | ダウンロード | |
|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 0.32 | 0.35 | 12 | 10 | 11 | 7 | 0.32uH, 15%, 0.35 mOhm DCR, 12A SMD Power Bead | Data Sheet | ||
| 4 | 0.27 | 0.35 | 14 | 11 | 11 | 7 | 0.27uH, 15%, 0.35 mOhm DCR, 14A SMD Power Bead | Data Sheet | ||
| 4.2 | 0.22 | 0.35 | 19 | 16 | 11 | 7 | 0.22uH, 10%, 0.35 mOhm DCR, 19A SMD Power Bead | Data Sheet | ||
| 4.2 | 0.18 | 0.35 | 23 | 19 | 11 | 7 | 0.18uH, 10%, 0.35 mOhm DCR, 23A SMD Power Bead | Data Sheet | ||
| 4.2 | 0.15 | 0.35 | 30 | 25 | 11 | 7 | 0.15uH, 10%, 0.35 mOhm DCR, 30A SMD Power Bead | Data Sheet | ||
| 4.2 | 0.12 | 0.35 | 42 | 36 | 11 | 7 | 0.12uH, 10%, 0.35 mOhm DCR, 42A SMD Power Bead | Data Sheet | ||
| 4.2 | 0.1 | 0.35 | 48 | 40 | 11 | 7 | 0.1uH, 10%, 0.35 mOhm DCR, 48A SMD Power Bead | Data Sheet |
