SL43328B シリーズ

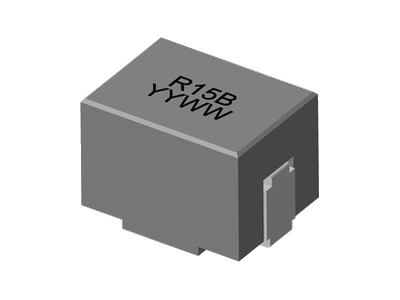

• Ferrite based SMD Inductor with lower core loss.
• Inductance Range:150nH to 200nH , Custom values are welcomed.
• High current output chokes, upto 88.0 Amp with approx. 20% roll off.
• Low Profile 7.9mm typical Height.
• 10.9 x 7.9 Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 450 pcs , 13'' Reel.
• Inductance Range:150nH to 200nH , Custom values are welcomed.
• High current output chokes, upto 88.0 Amp with approx. 20% roll off.
• Low Profile 7.9mm typical Height.
• 10.9 x 7.9 Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 450 pcs , 13'' Reel.
| 部品番号 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | ダウンロード | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 7.9 | 0.2 | 0.2 | 70 | 64 | 56 | 10.9 | 7.9 | 0.2uH, 10%, 0.195mOhm, 64Amp Max. SMD Power bead | Data Sheet | ||
| 7.9 | 0.17 | 0.2 | 70 | 79 | 70 | 10.9 | 7.9 | 0.17uH, 10%, 0.195mOhm, 79Amp Max. SMD Power bead | Data Sheet | ||
| 7.9 | 0.15 | 0.2 | 70 | 88 | 80 | 10.9 | 7.9 | 0.15uH, 10%, 0.195mOhm, 88Amp Max. SMD Power bead | Data Sheet |
