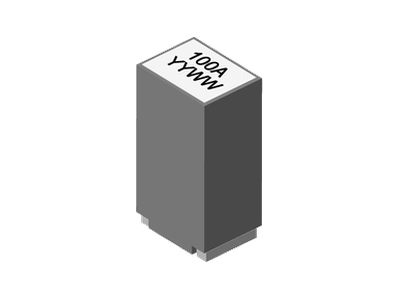

SLA26475A シリーズ
• Ferrite based SMD inductor with lower core loss
• Inductance Range: 100.0nH to 120.0nH, Custom values are welcomed
• High current output chokes, up to 96.0 Amp with approx. 20% roll off
• Low Profile 12.00 mm Max. height
• Foot Print 6.50 x 5.00 mm Max
• Perfect for high density designs with limited board space
• Operating frequency up to 5.0 MHz application
• Operating Temperature Range -55 ℃ to + 130 ℃, RoHs & HF compliance
• T & R Qtys: 350 pcs , 13'' Reel
• Inductance Range: 100.0nH to 120.0nH, Custom values are welcomed
• High current output chokes, up to 96.0 Amp with approx. 20% roll off
• Low Profile 12.00 mm Max. height
• Foot Print 6.50 x 5.00 mm Max
• Perfect for high density designs with limited board space
• Operating frequency up to 5.0 MHz application
• Operating Temperature Range -55 ℃ to + 130 ℃, RoHs & HF compliance
• T & R Qtys: 350 pcs , 13'' Reel
| 部品番号 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | ダウンロード | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 0.12 | 0.23 | 60 | 78 | 66 | 6.2 | 5 | 120nH, 10%, 0.23mOhm, 78.0A Max. SMD Power Bead | Data Sheet | ||
| 12 | 0.1 | 0.23 | 60 | 96 | 82 | 6.2 | 5 | 100nH, 10%, 0.23mOhm, 96.0A Max. SMD Power Bead | Data Sheet |
