- SMD

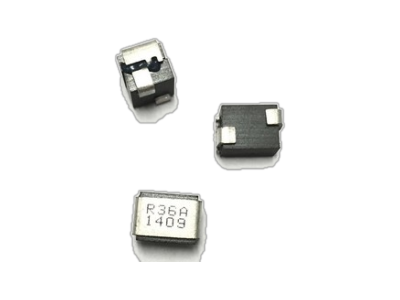

SLM40327 シリーズ
• Ferrite based SMD inductor with lower core loss.
• Inductance range: 180.0 nH to 1,390.0 nH , custom values are welcomed.
• High current output chokes, upto 85.0 Amp with approx. 20% roll off.
• Low profile 8.00 mm Max. height.
• 10.00 x 7.00 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1.0 MHz.
• Operating Temperature Range -55°C to + 130°C. RoHs & HF compliant.
• T & R Qtys: 450 pcs ,13'' Reel.
• Inductance range: 180.0 nH to 1,390.0 nH , custom values are welcomed.
• High current output chokes, upto 85.0 Amp with approx. 20% roll off.
• Low profile 8.00 mm Max. height.
• 10.00 x 7.00 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1.0 MHz.
• Operating Temperature Range -55°C to + 130°C. RoHs & HF compliant.
• T & R Qtys: 450 pcs ,13'' Reel.
| 部品番号 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | ダウンロード | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 8 | 1.39 | 0.85 | 30 | 8 | 7 | 7 | 10 | 1.39uH, 20%, 0.85mOhm, 8Amp Max. SMD Power bead | Data Sheet | ||
| 8 | 0.95 | 0.85 | 30 | 14 | 12.5 | 7 | 10 | 0.95uH, 20%, 0.85mOhm, 14Amp Max. SMD Power bead | Data Sheet | ||
| 8 | 0.835 | 0.85 | 30 | 16 | 14 | 7 | 10 | 0.835uH, 20%, 0.85mOhm, 16Amp Max. SMD Power bead | Data Sheet | ||
| 8 | 0.728 | 0.85 | 30 | 20 | 17 | 7 | 10 | 0.728uH, 20%, 0.85mOhm, 20Amp Max. SMD Power bead | Data Sheet | ||
| 8 | 0.53 | 0.85 | 30 | 28 | 24 | 7 | 10 | 0.53uH, 20%, 0.85mOhm, 28Amp Max. SMD Power bead | Data Sheet | ||
| 8 | 0.475 | 0.85 | 30 | 32 | 27 | 7 | 10 | 0.475uH, 20%, 0.85mOhm, 32Amp Max. SMD Power bead | Data Sheet | ||
| 8 | 0.405 | 0.85 | 30 | 38 | 32 | 7 | 10 | 0.405uH, 20%, 0.85mOhm, 38Amp Max. SMD Power bead | Data Sheet | ||
| 8 | 0.36 | 0.85 | 30 | 43 | 36 | 7 | 10 | 0.36uH, 20%, 0.85mOhm, 43Amp Max. SMD Power bead | Data Sheet | ||
| 8 | 0.28 | 0.85 | 30 | 57 | 48 | 7 | 10 | 0.28uH, 20%, 0.85mOhm, 57Amp Max. SMD Power bead | Data Sheet | ||
| 8 | 0.22 | 0.85 | 30 | 70 | 59 | 7 | 10 | 0.22uH, 20%, 0.85mOhm, 70Amp Max. SMD Power bead | Data Sheet | ||
| 8 | 0.18 | 0.85 | 30 | 85 | 75 | 7 | 10 | 0.18uH, 20%, 0.85mOhm, 85Amp Max. SMD Power bead | Data Sheet |
