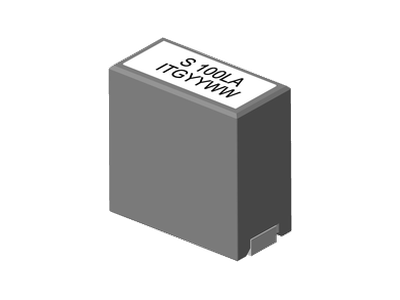

SLR47476A シリーズ
• Ferrite based SMD inductor with lower core loss
• Inductance Range: 70.0nH to 120.0nH, Custom values are welcomed
• High current output chokes, up to 180.0 Amp with approx. 20% roll off
• Low Profile 12.0 mm Max. height
• Foot Print 12.00 x 6.00 mm
• Co-Layout Single Inductor for AHA47476A Series of TLVR Inductor
• Operating frequency up to 5.0 MHz application
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance
• T & R Qtys: 400 pcs , 13'' Reel
• Inductance Range: 70.0nH to 120.0nH, Custom values are welcomed
• High current output chokes, up to 180.0 Amp with approx. 20% roll off
• Low Profile 12.0 mm Max. height
• Foot Print 12.00 x 6.00 mm
• Co-Layout Single Inductor for AHA47476A Series of TLVR Inductor
• Operating frequency up to 5.0 MHz application
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance
• T & R Qtys: 400 pcs , 13'' Reel
| 部品番号 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | ダウンロード | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 0.12 | 0.14 | 78 | 110 | 91 | 12 | 6 | 120.0nH, 15%, 0.140mOhm, 110Amp Max. SMD Power bead | Data Sheet | ||
| 12 | 0.1 | 0.14 | 78 | 128 | 105 | 12 | 6 | 100.0nH, 15%, 0.140mOhm, 128Amp Max. SMD Power bead | Data Sheet | ||
| 12 | 0.07 | 0.14 | 78 | 180 | 150 | 12 | 6 | 70.0nH, 15%, 0.140mOhm, 180Amp Max. SMD Power bead | Data Sheet |
