- Filter

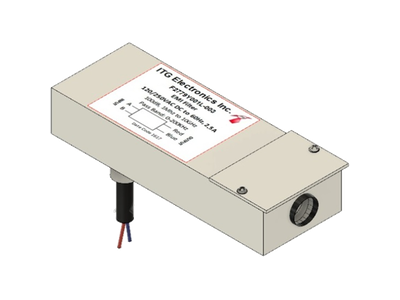

F2779Y001L シリーズ
• MRI Room data line filters provide clean communication lines into MRI rooms. The filters are designed with minimum leakage current to ground and provide 100dB attenuation from 1MHz to 10GHz, Pass Band 0-200KHz.
• Voltage Rating: 120
• 250V
• Frequency: DC to 60Hz
• Hi-Pot: Line to Ground: 1000VDC for 2 sec Line to Line: VDC for 2 sec
• Ambient Temperature Range: -25°C To +85°C
• Filter components are encapsulated in a plated metal enclosure
• Leakage Current: 5mA @ 120VAC 60Hz
• Comply with UL and cUL construction requirements
• Voltage Rating: 120
• 250V
• Frequency: DC to 60Hz
• Hi-Pot: Line to Ground: 1000VDC for 2 sec Line to Line: VDC for 2 sec
• Ambient Temperature Range: -25°C To +85°C
• Filter components are encapsulated in a plated metal enclosure
• Leakage Current: 5mA @ 120VAC 60Hz
• Comply with UL and cUL construction requirements
| 部品番号 | Description | ダウンロード | ||
|---|---|---|---|---|
| MRI Room data line filter,1Amp, #22 AWG wire for output connections | Data Sheet | 3D Step File | Data Sheet |
