T301373SP

LLC Transformer for GAN System 3K Watt 75.0uH, 18.0mOhm

T201210A

Flyback Transformer 120.0uH, 10%, 150.0mOhm, 4.0Amp Isat ITG P/N T201210A-007 ( Flyback Transformer) and C201517BQ-103(10mH common mode choke)are designed and developed for ST USB-PD 65 W Active Clamp Flyback (ACF) converter board with ST STACF01 controllerST P/N EVLSTACF01-65WU.

L30509

L301308

105uH-7.0mH, 10%, 14.5mOhm-1100mOhm, 25.0A-3.0A Max. Toroid DIP.

L201314A

100.00uH to 1000.00uH, 26.00mOhm to 950mOhm, 3.2A to 1.0A. DIP Toroidal Inductor. Custom Values are welcomed.

AP1184xxx

High Power through hole Toroidal Inductor for Switch Mode Power Supplies application, 200uH to 300uH 12 Amp Max. Custom Values are welcomed.

AP11681xxx

High Power through hole Toroidal Inductor for Switch Mode Power Supplies application, 200uH to 300uH,10.5 Amp Max. Custom Values are welcomed.

AP1157xxx

200uH to 300uH, 20% , 42.61mOhm to 54.62mOhm, 9.5Amp to 7.5Amp DIP Toroidal Inductor

AP1106xxx

150uH to 300uH, 20% , 25.1mOhm to 49.5mOhm, 6.0Amp to 4.2Amp DIP Toroidal Inductor.

AP

High Power through hole Toroidal Inductor for output chokes application, 0.5uH to 4.5uH Custom Values are welcomed.

L101374SP

Resonant Inductor 15.0uH - 56.0uH, 10%, 6.0mOhm - 15.0mOhm, 71.0Amp to 17.0Amp

L30864

Inductor, 1.42mH, 35.0A, 42.0mΩDCR.

L30762

Inductor, 1,100uH (1.1mH), 15.0A, 120.0mΩ DCR.

L30750

L30742

L30741

L30649

Inductor, 1,500uH, 12.0A, 70.0mΩ DCR.

L30648

Inductor, 1.50mH, 10.0A, 75.0mΩ DCR.

L30647

Inductor, 2.0mH,10.0A, 80.0mΩ DCR.

L30640

L30638

L30584

L30568

L30544

L30541

L30539

L30536

L30535

L30526

L30432

L30431

L301055

Inductor,0.78 mH, 40.0A, 35.0mΩ DCR.

PFC212236A

105uH to 1000uH, 10% , 14.5mOhm to 106.5mOhm, 55.5Amp to 18.0Amp DIP PFC Chokes.

PFC212138A

105uH to 1000uH, 10% , 14.5mOhm to 106.5mOhm, 55.5Amp to 18.0Amp DIP PFC Chokes.

L30439-1

Inductor, 507uH, 18A, 55mΩ DCR

PQ87

0.47uH to 2.2uH, 20% or 15%, 0.73mOhm to 1.75mOhm, 40Amp to 33Amp SMD Flat Wire Inductor

PQ108081H

100.0uH to 1000.0uH, 20%, 28.5mOhm to 206.0mOhm, 10.3Amp to 3.1Amp SMD Flat Wire Inductor.

PQ108081

3.3uH to 560uH, 20%, 2.5mOhm to 95.0mOhm, 89.0Amp to 4.0Amp SMD Flat Wire Inductor.

L30927

3.3uH to 33.0uH, 10% , 2.3mOhm, 108Amp to 10.3Amp DIP Flat Wire Inductor.

DHP106095S

3.3uH to 100.0uH, 20%, 2.2mOhm to 15.5mOhm, 89Amp to 8.9Amp DIP Flat Wire Inductor

F1504A015B

Custom Power Entry EMI Filter 15 Amp with Fast-On Terminal.

SCH4744T

3.3uH to 1000.0uH, 20% or 10%, 7mOhm to 1525mOhm, 14.0Amp to 0.84Amp DIP Drum Inductor.

SCH3753T

3.3uH to 1000.0uH, 20% or 10%, 9mOhm to 1469mOhm, 11.7Amp to 0.7Amp DIP Drum Inductor

SCH3539T

1.0uH to 1000.0uH, 20% or 10%, 4.5mOhm to 2050mOhm, 21.0Amp to 0.72Amp DIP Drum Inductor.

SCH3532T

3.3uH to 1000.0uH, 20% or 10%, 15mOhm to 3800mOhm, 12.3Amp to 0.72Amp DIP Drum Inductor.

SCH3524T

3.3uH to 1000.0uH, 20% or 10%, 20mOhm to 5000mOhm, 8.5Amp to 0.5Amp DIP Drum Inductor.

SCH3028T

3.3uH to 1000.0uH, 20% or 10%, 13mOhm to 3400mOhm, 5.5Amp to 0.34Amp DIP Drum Inductor.

DR4044

1.0uH to 2200.0uH, 5% to 20%, 5.2mOhm to 5800.0mOhm, 10Amp to 0.45Amp DIP Drum Inductor

L301152

Common Mode Choke, 2.9mH, 6.0mΩ DCR

FCM897316A-240

240.0Z, 30%, 0.10mOhm, 105.0A Max. DIP Common Mode Choke

DCN181713H

Nanocrystalline Common Mode Chokes Ideally used for AC circuits, and noise filter for TV and VCR.

DCN181320V

Nanocrystalline Common Mode Chokes Ideally used for AC circuits, and noise filter for TV and VCR.

DCM372645VB

3.5mH to 90.0mH, 55mOhm to 1100mOhm, 7.5Amp to 1.7Amp DIP Common Mode Chokes

DCM372645VC

3.5mH to 90.0mH, 45mOhm to 910mOhm, 8.2Amp to 1.85Amp DIP Common Mode Chokes

DCM321835V

1.8mH to 27.0mH, 30%, 36mOhm to 400mOhm, 6.0Amp to 1.6Amp DIP Common Mode Chokes

DCM282818H

2.2mH to 25.0mH, 30%, 34mOhm to 430mOhm, 6.0Amp to 1.5Amp DIP Common Mode Chokes

DCM251515H

10.0mH to 100.0mH, 30% to 50%, 260mOhm to 2670mOhm, 1.6Amp to 0.45Amp DIP Common Mode Chokes

DCM232315H

1.0mH to 20.0mH, 30%, 35mOhm to 520mOhm, 5.0Amp to 0.7Amp DIP Common Mode Chokes

DCM211714H

Common Mode Choke 10.5mH,1.8 Amp, 180.0mΩ.

DCM181713H

0.7mH to 39.0mH, 30%, 27mOhm to 1700mOhm, 5.0Amp to 0.3Amp DIP Common Mode Chokes

C30540

3.0mH to 4.5mH, 2.6mOhm to 3.5mOhm, 45Amp to 40Amp DIP Common Mode Chokes

C30530

9.0mH to 65.0mH, 8.5mOhm to 138mOhm, 14.5Amp to 1.7Amp DIP Common Mode Chokes

C301306H

0.52mH - 1.55mH, 30%, 3.4mOhm - 6.0mOhm, 35.0A -23.0A Max. DIP Common Mode Choke

C20882

1.5mH to 30.0mH, 0.125Ohm to 2.5Ohm, 1.9Amp to 0.4Amp DIP Common Mode Chokes

C20881

3.3mH to 51.0mH, 0.71Ohm to 9.12Ohm, 0.65Amp to 0.15Amp DIP Common Mode Chokes

C20880

0.47mH to 10.0mH, 0.15Ohm to 4.0Ohm, 1.0Amp to 0.2Amp DIP Common Mode Chokes

C20540

3.0mH to 4.5mH, 2.6mOhm to 3.5mOhm, 45Amp to 40Amp DIP Common Mode Chokes

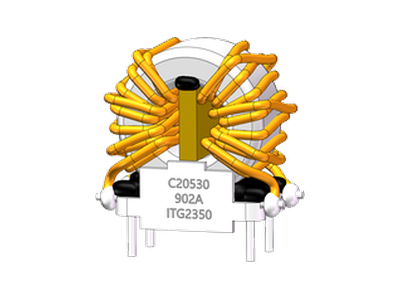

C20530A

4.5mH to 65.0mH, 5.6mOhm to 138.0mOhm, 17.0Amp to 2.8Amp DIP Common Mode Chokes

C20200

1mH to 50mH, 0.01Ohm to 0.45Ohm, 25Amp to 1.0Amp DIP Common Mode Chokes

C201540A

200.0uH-20.0mH, 30%,3.5mOhm-270.0mOhm, 12.0A-1.5A Max. DIP Common Mode Choke

C201517BQ

10.0mH, +50%/-30%, 85.0mOhm, 2.0A. DIP Common Mode Choke AEC-Q200 Grade 1 ITG P/N T201210A-007 ( Flyback Transformer) and C201517BQ-103(10mH common mode choke)are designed and developed for ST USB-PD 65 W Active Clamp Flyback (ACF) converter board with ST STACF01 controllerST P/N EVLSTACF01-65WU.

C201426A

1.0mH-39.0mH, 30%,45.0mOhm-2700.0mOhm, 2.0A-0.3A Max. DIP Common Mode Choke

C201021A

1.0mH-20.0mH, 30%, 30.0mOhm-540.0mOhm, 3.0A-0.5A Max. DIP Common Mode Choke

C201041-1P

COMMON MODE CHOKE ,1.3mH ,8.5mΩDCR

C101168

SMD Common Mode Choke,9.0uH,15.0mΩ DCR

C101167

SMD Common Mode Choke,11.0uH,30.0mΩ DCR
