- DIP

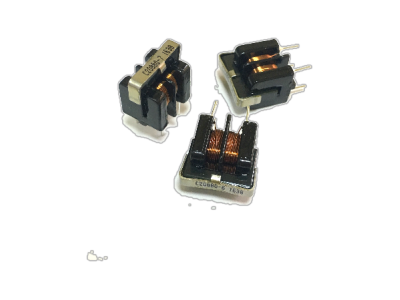

C20880 系列
• 16.5×11.0mm Max.(L×W), 16.5mm Max. Height.
• Inductance range: 0.47mH～10mH. Custom values are welcomed.
• Rated current up to 1.0A.
• Ideally used as AC common mode noise filter for TV, VCR, Switching power supply, PC＆PC related advice, measurement attenuation and control unit with better characteristics in low frequency band.
• Operating Temperature Range -40°C to + 125°C ; RoHs & HF compliance.
• Inductance range: 0.47mH～10mH. Custom values are welcomed.
• Rated current up to 1.0A.
• Ideally used as AC common mode noise filter for TV, VCR, Switching power supply, PC＆PC related advice, measurement attenuation and control unit with better characteristics in low frequency band.
• Operating Temperature Range -40°C to + 125°C ; RoHs & HF compliance.
| 零件編號 | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | 下載 | ||||
|---|---|---|---|---|---|---|---|---|---|
| 16.5 | 25,000uH, 3600mOhm, 0.2Amp Max. DIP Common Mode Chokes | Data Sheet | |||||||
| 16.5 | 16.5 | 11 | 1,800uH, 310mOhm, 0.5Amp Max. DIP Common Mode Chokes | Data Sheet | |||||
| 16.5 | 16.5 | 11 | 10,000uH, 4000mOhm, 0.2Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 16.5 | 16.5 | 11 | 6,800uH, 2500mOhm, 0.25Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 16.5 | 16.5 | 11 | 4,700uH, 1600mOhm, 0.34Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 16.5 | 16.5 | 11 | 3,900uH, 1200mOhm, 0.38Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 16.5 | 16.5 | 11 | 2,200uH, 700mOhm, 0.5Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 16.5 | 16.5 | 11 | 1,000uH, 350mOhm, 0.7Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 16.5 | 16.5 | 11 | 680uH, 250mOhm, 0.85Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 16.5 | 16.5 | 11 | 470uH, 150mOhm, 1Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter |
