SLNR8340 系列

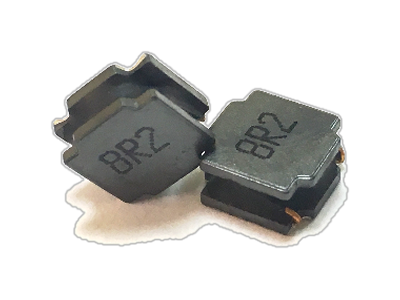

• Miniature SMD shielded power inductor.
• Low profile 4.2mm max height.
• Inductance range of 0.82uH to 330.0uH.
• Ideal for DC to DC power converter application.
• Operating temperature range of -55.0°C up to +130.0°C.
• RoHS and HF compliant.
• Tape and Reel quantities: 1,000pcs, 13” Reel.
• Low profile 4.2mm max height.
• Inductance range of 0.82uH to 330.0uH.
• Ideal for DC to DC power converter application.
• Operating temperature range of -55.0°C up to +130.0°C.
• RoHS and HF compliant.
• Tape and Reel quantities: 1,000pcs, 13” Reel.
| 零件編號 | Length (mm) Max | Height (mm) Max | Dimension W (mm) Max | Description | 下載 | |
|---|---|---|---|---|---|---|
| 8.3 | 4.2 | 8.3 | 0.82uH, 30%, 8mOhm, 13.8Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 8.3 | 4.2 | 8.3 | 91uH, 20%, 272mOhm, 1.2Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 8.3 | 4.2 | 8.3 | 8.2uH, 20%, 26mOhm, 4.2Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 8.3 | 4.2 | 8.3 | 75uH, 20%, 211mOhm, 1.35Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 8.3 | 4.2 | 8.3 | 6.8uH, 20%, 24mOhm, 4.55Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 8.3 | 4.2 | 8.3 | 6.2uH, 30%, 21mOhm, 4.45Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 8.3 | 4.2 | 8.3 | 68uH, 20%, 196mOhm, 1.45Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 8.3 | 4.2 | 8.3 | 62uH, 20%, 182mOhm, 1.5Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 8.3 | 4.2 | 8.3 | 5.6uH, 30%, 21mOhm, 6Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 8.3 | 4.2 | 8.3 | 5.1uH, 30%, 19mOhm, 4.7Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 8.3 | 4.2 | 8.3 | 56uH, 20%, 148mOhm, 1.55Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 8.3 | 4.2 | 8.3 | 51uH, 20%, 142mOhm, 1.7Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 8.3 | 4.2 | 8.3 | 4.7uH, 30%, 18mOhm, 4.9Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 8.3 | 4.2 | 8.3 | 47uH, 20%, 136mOhm, 1.75Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 8.3 | 4.2 | 8.3 | 43uH, 20%, 113mOhm, 1.9Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 8.3 | 4.2 | 8.3 | 3.9uH, 30%, 17mOhm, 5.75Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 8.3 | 4.2 | 8.3 | 3.3uH, 30%, 17mOhm, 6.5Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 8.3 | 4.2 | 8.3 | 3uH, 30%, 14mOhm, 6.1Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 8.3 | 4.2 | 8.3 | 39uH, 20%, 107mOhm, 1.95Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 8.3 | 4.2 | 8.3 | 36uH, 20%, 102mOhm, 2Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 8.3 | 4.2 | 8.3 | 330uH, 20%, 889mOhm, 0.68Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 8.3 | 4.2 | 8.3 | 33uH, 20%, 97mOhm, 2.05Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 8.3 | 4.2 | 8.3 | 2.2uH, 30%, 12mOhm, 7.1Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 8.3 | 4.2 | 8.3 | 2uH, 30%, 12mOhm, 9.25Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 8.3 | 4.2 | 8.3 | 27uH, 20%, 78mOhm, 2.15Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 8.3 | 4.2 | 8.3 | 220uH, 20%, 599mOhm, 0.85Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 8.3 | 4.2 | 8.3 | 22uH, 20%, 66mOhm, 2.4Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 8.3 | 4.2 | 8.3 | 1.5uH, 30%, 10mOhm, 8.15Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 8.3 | 4.2 | 8.3 | 1uH, 30%, 8mOhm, 9.85Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 8.3 | 4.2 | 8.3 | 18uH, 20%, 53mOhm, 2.7Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 8.3 | 4.2 | 8.3 | 15uH, 20%, 47mOhm, 2.95Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 8.3 | 4.2 | 8.3 | 120uH, 20%, 334mOhm, 1.05Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 8.3 | 4.2 | 8.3 | 100uH, 20%, 290mOhm, 1.15Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 8.3 | 4.2 | 8.3 | 10uH, 20%, 29mOhm, 3.6Amp Max. SMD Shielded Drum Inductor | Data Sheet |
