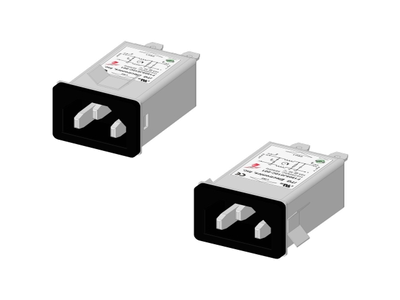

F1505 系列
• Single stage multi-purpose press fit Power Entry EMI Filter Modules
• Designed to suppress Common and Differential mode emissions
• Current Rating: 1A to 10A
• Voltage Rating: 115
• 250VAC
• Frequency: 50
• 60Hz
• Hi-Pot Rating: Line to Ground 2250VDC for 2 sec
• Hi-Pot Line to Line: 1450VDC for 2 sec
• Ambient Temperature Range: -25°C To +85°C
• Filter components are encapsulated in a plated metal enclosure
• Leakage Current: 0.45mA max. @ 250VAC 50Hz
• Power Supplies, UPS, Inverters, Convertors, Industrial equipment, etc.
• cURus recognized and CE certified
• Designed to suppress Common and Differential mode emissions
• Current Rating: 1A to 10A
• Voltage Rating: 115
• 250VAC
• Frequency: 50
• 60Hz
• Hi-Pot Rating: Line to Ground 2250VDC for 2 sec
• Hi-Pot Line to Line: 1450VDC for 2 sec
• Ambient Temperature Range: -25°C To +85°C
• Filter components are encapsulated in a plated metal enclosure
• Leakage Current: 0.45mA max. @ 250VAC 50Hz
• Power Supplies, UPS, Inverters, Convertors, Industrial equipment, etc.
• cURus recognized and CE certified
| 零件編號 | Description | 下載 |
|---|---|---|
| Single stage multi-purpose press fit Power Entry EMI Filter Modules, 10 Amp,Fast-on 6.35x0.8 for output connections | Data Sheet | |
| Single stage multi-purpose press fit Power Entry EMI Filter Modules, 6 Amp,Fast-on 6.35x0.8 for output connections | Data Sheet | |
| Single stage multi-purpose press fit Power Entry EMI Filter Modules, 3 Amp,Fast-on 6.35x0.8 for output connections | Data Sheet | |
| Single stage multi-purpose press fit Power Entry EMI Filter Modules, 1 Amp,Fast-on 6.35x0.8 for output connections | Data Sheet |
