- SMD

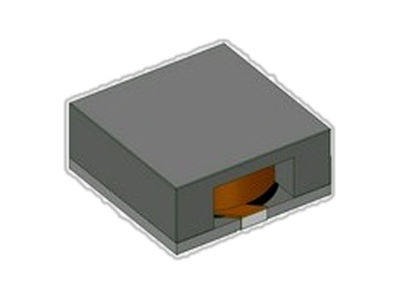

SC7236 系列
• Ferrite base SMD Inductor with lower core loss.
• Custom values are welcomed.
• High current output chokes, up to 18.8 Amp with approx. 30% roll off.
• Flat wire windings provide extremely low DC and AC resistance.
• Operating temperature range -55°C to +130°C, RoHS & HF compliant.
• T & R Qtys: 150 pcs, 13” Reel.
• Custom values are welcomed.
• High current output chokes, up to 18.8 Amp with approx. 30% roll off.
• Flat wire windings provide extremely low DC and AC resistance.
• Operating temperature range -55°C to +130°C, RoHS & HF compliant.
• T & R Qtys: 150 pcs, 13” Reel.
| 零件編號 | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | 下載 | |
|---|---|---|---|---|---|---|
| 9.5 | 19.3 | 18.8 | 68uH, 20%, 45mOhm, 6.5Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 9.5 | 19.3 | 18.8 | 47uH, 20%, 33.5mOhm, 7.2Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 9.5 | 19.3 | 18.8 | 33uH, 20%, 21.7mOhm, 9.2Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 9.5 | 19.3 | 18.8 | 22uH, 20%, 14.6mOhm, 11.5Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 9.5 | 19.3 | 18.8 | 15uH, 20%, 9mOhm, 14.5Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 9.5 | 19.3 | 18.8 | 100uH, 20%, 50mOhm, 4.7Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 9.5 | 19.3 | 18.8 | 10uH, 20%, 6.9mOhm, 18.8Amp Max. SMD Flat Wire Inductor | Data Sheet |
