- SMD

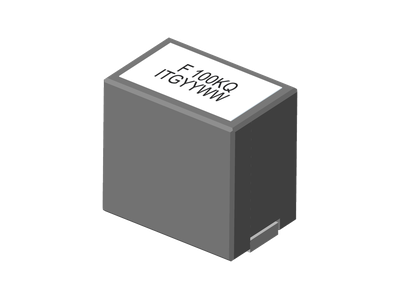

AF13Q 系列
• AEC-Q200 Compliant .
• Ferrite based SMD inductor with lower core loss.
• Inductance range: 65.0 nH to 300.0 nH, custom values are welcomed.
• High current output chokes , up to 165.0 Amp with approx. 20% roll off.
• Low Profile 9.00 mm Max. height .
• 9.60 x 6.40 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency of up to 5.0MHz.Operating temperature range of -55°C to + 130°C. RoHS & HF compliant.
• T & R Qty’s: 500pcs, 13'' Reel.
• Ferrite based SMD inductor with lower core loss.
• Inductance range: 65.0 nH to 300.0 nH, custom values are welcomed.
• High current output chokes , up to 165.0 Amp with approx. 20% roll off.
• Low Profile 9.00 mm Max. height .
• 9.60 x 6.40 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency of up to 5.0MHz.Operating temperature range of -55°C to + 130°C. RoHS & HF compliant.
• T & R Qty’s: 500pcs, 13'' Reel.
| 零件編號 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | 下載 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 9 | 0.3 | 0.17 | 66 | 33 | 29 | 9.6 | 6.4 | 300nH, 10%, 0.17mOhm, 33.0A Max. SMD Power Bead | Data Sheet | ||
| 9 | 0.28 | 0.17 | 66 | 35 | 30 | 9.6 | 6.4 | 280nH, 10%, 0.17mOhm, 35.0A Max. SMD Power Bead | Data Sheet | ||
| 9 | 0.22 | 0.17 | 66 | 44 | 39 | 9.6 | 6.4 | 220nH, 10%, 0.17mOhm, 44.0A Max. SMD Power Bead | Data Sheet | ||
| 9 | 0.21 | 0.17 | 66 | 48 | 43 | 9.6 | 6.4 | 210nH, 10%, 0.17mOhm, 48.0A Max. SMD Power Bead | Data Sheet | ||
| 9 | 0.18 | 0.17 | 66 | 60 | 52 | 9.6 | 6.4 | 180nH, 10%, 0.17mOhm, 60.0A Max. SMD Power Bead | Data Sheet | ||
| 9 | 0.17 | 0.17 | 66 | 65 | 56 | 9.6 | 170nH, 10%, 0.17mOhm, 65.0A Max. SMD Power Bead | Data Sheet | |||
| 9 | 0.15 | 0.17 | 66 | 75 | 65 | 9.6 | 6.4 | 150nH, 10%, 0.17mOhm, 75.0A Max. SMD Power Bead | Data Sheet | ||
| 9 | 0.12 | 0.17 | 66 | 94 | 80 | 9.6 | 6.4 | 120nH, 10%, 0.17mOhm, 124.0A Max. SMD Power Bead | Data Sheet | ||
| 9 | 0.1 | 0.17 | 66 | 124 | 102 | 9.6 | 6.4 | 100nH, 10%, 0.17mOhm, 124.0A Max. SMD Power Bead | Data Sheet | ||
| 9 | 0.09 | 0.17 | 66 | 134 | 114 | 9.6 | 6.4 | 90nH, 10%, 0.17mOhm, 120.0A Max. SMD Power Bead | Data Sheet | ||
| 9 | 0.075 | 0.17 | 66 | 140 | 120 | 9.6 | 6.4 | 75nH, 10%, 0.17mOhm, 140.0A Max. SMD Power Bead | Data Sheet | ||
| 9 | 0.065 | 0.17 | 66 | 165 | 145 | 9.6 | 6.4 | 65nH, 15%, 0.17mOhm, 165.0A Max. SMD Power Bead | Data Sheet |
