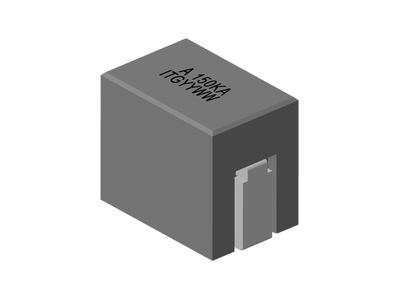

AH3933 系列
• Ferrite based SMD inductor with lower core loss.
• Inductance range: 120.0nH to 150.0nH , custom values are welcomed.
• High current output chokes of up to 75.0 Amp with approx. 20% roll off.
• Low profile 8.50 mm Max. height.
• 10.00 x 6.40 mm max Foot Print.
• Perfect for high density designs with limited board space.
• Operating frequency of up to 5.0MHz.
• Operating temperature range of -55°C to + 130°C.
• RoHS & HF compliant.
• T & R Qty’s: 550pcs, 13'' Reel.
• Inductance range: 120.0nH to 150.0nH , custom values are welcomed.
• High current output chokes of up to 75.0 Amp with approx. 20% roll off.
• Low profile 8.50 mm Max. height.
• 10.00 x 6.40 mm max Foot Print.
• Perfect for high density designs with limited board space.
• Operating frequency of up to 5.0MHz.
• Operating temperature range of -55°C to + 130°C.
• RoHS & HF compliant.
• T & R Qty’s: 550pcs, 13'' Reel.
| 零件編號 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | 下載 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 8.5 | 0.15 | 0.2 | 61 | 58 | 52 | 10 | 6.4 | 0.15uH, 10%, 0.2mOhm, 58Amp Max. SMD Power bead | Data Sheet | ||
| 8.5 | 0.12 | 0.2 | 61 | 75 | 68 | 10 | 6.4 | 0.12uH, 10%, 0.2mOhm, 75Amp Max. SMD Power bead | Data Sheet | ||
| 8.5 | 0.09 | 0.2 | 61 | 105 | 93 | 6.4 | 10 | 90nH, 10%, 0.2mOhm, 105Amp Max. Power Bead SMD | Data Sheet | ||
| 8.5 | 0.065 | 0.2 | 61 | 110 | 95 | 6.4 | 10 | 65nH, 15%, 0.2mOhm, 110Amp Max. Power Bead SMD | Data Sheet |
