- SMD

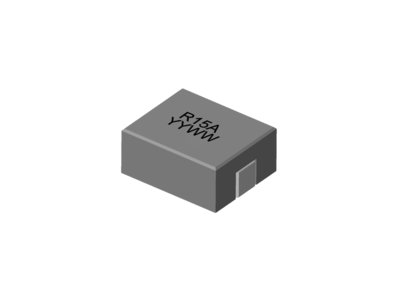

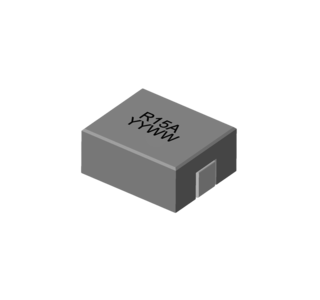

AH43209 系列
• Ferrite based SMD Inductor with lower core loss.
• Inductance Range: 150 nH. Custom values are welcomed.
• High current output chokes, upto 53.0 Amp with max. 20% roll off.
• Low Profile 5.0 mm Max. height.
• Foot Print 11.0 x 9.0 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 2.0 MHz application.
• Operating Temperature Range -55°C to + 130°C
• T & R Qty’s: 1000pcs, 13'' Reel. RoHS & HF compliant.
• Inductance Range: 150 nH. Custom values are welcomed.
• High current output chokes, upto 53.0 Amp with max. 20% roll off.
• Low Profile 5.0 mm Max. height.
• Foot Print 11.0 x 9.0 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 2.0 MHz application.
• Operating Temperature Range -55°C to + 130°C
• T & R Qty’s: 1000pcs, 13'' Reel. RoHS & HF compliant.
| 零件編號 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | 下載 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5 | 0.15 | 0.35 | 62 | 53 | 46 | 11 | 9 | 0.15uH, 10%, 0.35mOhm, 53Amp Max. SMD Power bead | Data Sheet |
