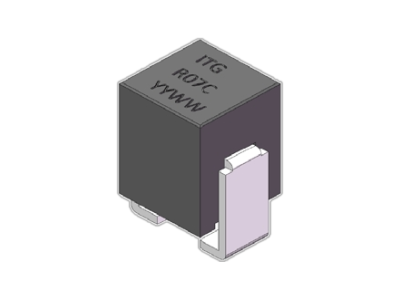

AHD3032C 系列
• Ferrite based SMD inductor with lower core loss.
• Inductance Range: 70.0 nH to 200.0 nH , custom values are welcomed.
• High current output chokes, up to 70.0 Amp with approx. 20% roll off.
• Low Profile 10.00 mm Max. height.
• Foot Print 7.20 x 6.20 mm Max.
• Perfect for high density designs with limited board space.
• Operating frequency up to 1.0 MHz.
• Operating Temperature Range -55°C to + 130°C. RoHs & HF compliant.
• T & R Qtys: 500 pcs , 13'' Reel.
• Inductance Range: 70.0 nH to 200.0 nH , custom values are welcomed.
• High current output chokes, up to 70.0 Amp with approx. 20% roll off.
• Low Profile 10.00 mm Max. height.
• Foot Print 7.20 x 6.20 mm Max.
• Perfect for high density designs with limited board space.
• Operating frequency up to 1.0 MHz.
• Operating Temperature Range -55°C to + 130°C. RoHs & HF compliant.
• T & R Qtys: 500 pcs , 13'' Reel.
| 零件編號 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | 下載 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 0.2 | 0.22 | 39 | 19 | 17 | 7.2 | 6.2 | 0.2uH, 20%, 0.22mOhm, 19Amp Max. SMD Power bead | Data Sheet | ||
| 10 | 0.15 | 0.22 | 39 | 28 | 25 | 7.2 | 6.2 | 0.15uH, 20%, 0.22mOhm, 28Amp Max. SMD Power bead | Data Sheet | ||
| 10 | 0.13 | 0.22 | 39 | 34 | 30 | 7.2 | 6.2 | 0.13uH, 15%, 0.22mOhm, 34Amp Max. SMD Power bead | Data Sheet | ||
| 10 | 0.1 | 0.22 | 39 | 46 | 41 | 7.2 | 6.2 | 0.1uH, 15%, 0.22mOhm, 46Amp Max. SMD Power bead | Data Sheet | ||
| 10 | 0.09 | 0.22 | 39 | 54 | 46 | 7.2 | 6.2 | 0.09uH, 15%, 0.22mOhm, 54Amp Max. SMD Power bead | Data Sheet | ||
| 10 | 0.08 | 0.22 | 39 | 65 | 56 | 7.2 | 6.2 | 0.08uH, 15%, 0.22mOhm, 65Amp Max. SMD Power bead | Data Sheet | ||
| 10 | 0.07 | 0.22 | 39 | 70 | 60 | 7.2 | 6.2 | 0.07uH, 15%, 0.22mOhm, 70Amp Max. SMD Power bead | Data Sheet |
