SL36326 系列

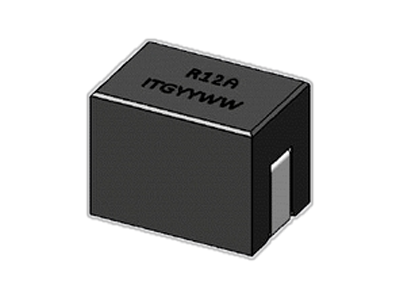

• Ferrite based SMD Inductor with lower core loss.
• Custom values are welcomed.
• High current output chokes, upto 80 Amp with approx. 20% roll off.
• Low Profile 8.0mm Max. height.
• Foot Print 9.1 x 6.3 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C, RoHs & HF compliance.
• Custom values are welcomed.
• High current output chokes, upto 80 Amp with approx. 20% roll off.
• Low Profile 8.0mm Max. height.
• Foot Print 9.1 x 6.3 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C, RoHs & HF compliance.
| 零件編號 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | 下載 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 8 | 0.125 | 0.18 | 64 | 64 | 57 | 9.1 | 6.3 | 0.125uH, 10%, 0.18mOhm, 64Amp Max. SMD Power bead | Data Sheet | ||
| 8 | 0.095 | 0.18 | 64 | 80 | 73 | 9.1 | 6.3 | 0.095uH, 10%, 0.18mOhm, 80Amp Max. SMD Power bead | Data Sheet |
