- SMD

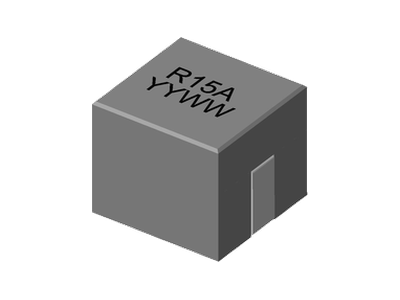

SL423510 系列
• Ferrite based SMD Inductor with lower core loss.
• Custom values are welcomed.
• High current output chokes, upto 99.0 Amp with approx. 20% roll off.
• Low Profile 9.10mm Max. height.
• Foot Print 10.60 x 10.10 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• Custom values are welcomed.
• High current output chokes, upto 99.0 Amp with approx. 20% roll off.
• Low Profile 9.10mm Max. height.
• Foot Print 10.60 x 10.10 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
| 零件編號 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | 下載 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 9.1 | 0.15 | 0.2 | 78 | 99 | 92 | 10.6 | 10.1 | 0.15uH, 10%, 0.2mOhm, 99Amp Max. SMD Power bead | Data Sheet |
