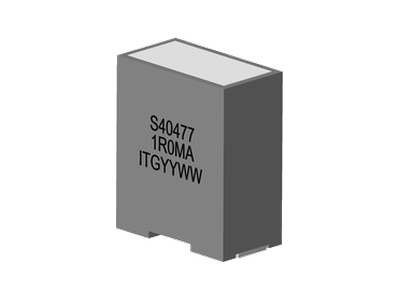

SLQ40477A 系列
• Ferrite based SMD inductor with lower core loss
• Inductance Range: 0.33uH to 3.30uH, Custom values are welcomed
• High current output chokes, up to 73.0 Amp with approx. 20% roll off
• Low Profile 12.00 mm Max. height
• Foot Print 10.00 x 7.00 mm
• Perfect for high density designs with limited board space
• Operating frequency up to 5.0 MHz application
• Operating Temperature Range -55°C to + 130°C , RoHs& HF compliance
• T & R Qtys: 300 pcs , 13'' Reel
• Inductance Range: 0.33uH to 3.30uH, Custom values are welcomed
• High current output chokes, up to 73.0 Amp with approx. 20% roll off
• Low Profile 12.00 mm Max. height
• Foot Print 10.00 x 7.00 mm
• Perfect for high density designs with limited board space
• Operating frequency up to 5.0 MHz application
• Operating Temperature Range -55°C to + 130°C , RoHs& HF compliance
• T & R Qtys: 300 pcs , 13'' Reel
| 零件編號 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | 下載 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 3.3 | 1.1 | 27 | 5.5 | 4 | 10 | 7 | 3.3uH, 20%, 1.1mOhm, 5.5A Max. SMD Power Bead | Data Sheet | ||
| 12 | 2.2 | 1.1 | 27 | 10.5 | 9 | 10 | 7 | 2.2uH, 20%, 1.1mOhm, 10.5A Max. SMD Power Bead | Data Sheet | ||
| 12 | 1.5 | 1.1 | 27 | 14.5 | 12 | 10 | 7 | 1.5uH, 20%, 1.1mOhm, 14.5A Max. SMD Power Bead | Data Sheet | ||
| 12 | 1.2 | 1.1 | 27 | 20 | 17 | 10 | 7 | 1.2uH, 20%, 1.1mOhm, 20.0A Max. SMD Power Bead | Data Sheet | ||
| 12 | 1 | 1.1 | 27 | 23 | 19 | 10 | 7 | 1.0uH, 20%, 1.1mOhm, 23.0A Max. SMD Power Bead | Data Sheet | ||
| 12 | 0.68 | 1.1 | 27 | 34 | 28 | 10 | 7 | 0.68uH, 20%, 1.1mOhm, 34.0A Max. SMD Power Bead | Data Sheet | ||
| 12 | 0.56 | 1.1 | 27 | 46 | 39 | 10 | 7 | 0.56uH, 20%, 1.1mOhm, 46.0A Max. SMD Power Bead | Data Sheet | ||
| 12 | 0.47 | 1.1 | 27 | 53 | 45 | 10 | 7 | 0.47uH, 20%, 1.1mOhm, 53.0A Max. SMD Power Bead | Data Sheet | ||
| 12 | 0.33 | 1.1 | 27 | 73 | 61 | 10 | 7 | 0.33uH, 20%, 1.1mOhm, 73.0A Max. SMD Power Bead | Data Sheet |
