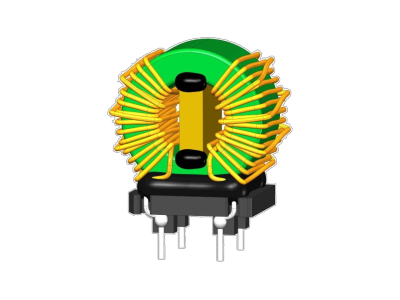

C201540A Series
• 24.00 × 16.00mm Max.(L×W), 25.50mm Max. Height.
• Inductance range: 200uH～20.0mH,Custom values are welcomed.
• AC common mode noise filter for Power Supplies and Lighting Application.
• Rated Voltage: 250VAC.
• Dielectric strength:1500Vrms,winding to winding.
• UL 94 V-0 Material.
• Operating temperature: -40 to +125℃.
• RoHs & HF Compliant Components.
• Inductance range: 200uH～20.0mH,Custom values are welcomed.
• AC common mode noise filter for Power Supplies and Lighting Application.
• Rated Voltage: 250VAC.
• Dielectric strength:1500Vrms,winding to winding.
• UL 94 V-0 Material.
• Operating temperature: -40 to +125℃.
• RoHs & HF Compliant Components.
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | ||||
|---|---|---|---|---|---|---|---|---|---|
| 26.5 | 25 | 17 | 1.0mH, 30%, 13.0mOhm, 6.0A Max. DIP Common Mode Choke | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 25.5 | 23 | 13.8 | 10.0mH, 30%, 125.0mOhm, 2.0A Max. DIP Common Mode Choke | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 25.5 | 24 | 16 | 0.2mH, 30%, 3.5mOhm, 12.0A Max. DIP Common Mode Choke | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 25.5 | 23 | 13.8 | 20.0mH, 30%, 270.0mOhm, 1.5A Max. DIP Common Mode Choke | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 25.5 | 23.5 | 13.8 | 2.2mH, 30%, 30.0mOhm, 4.0A Max. DIP Common Mode Choke | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 25.5 | 24 | 16 | 0.3mH, 30%, 4.6mOhm, 10.0A Max. DIP Common Mode Choke | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 25.5 | 23.5 | 13.5 | 3.3mH, 30%, 53.0mOhm, 2.8A Max. DIP Common Mode Choke | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 25.5 | 23 | 13.5 | 5.0mH, 30%, 95.0mOhm, 2.5A Max. DIP Common Mode Choke | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 25.5 | 24 | 16 | 0.52mH, 30%, 7.5mOhm, 8.0A Max. DIP Common Mode Choke | Data Sheet | LT Spice | LT Spice | S Parameter |
