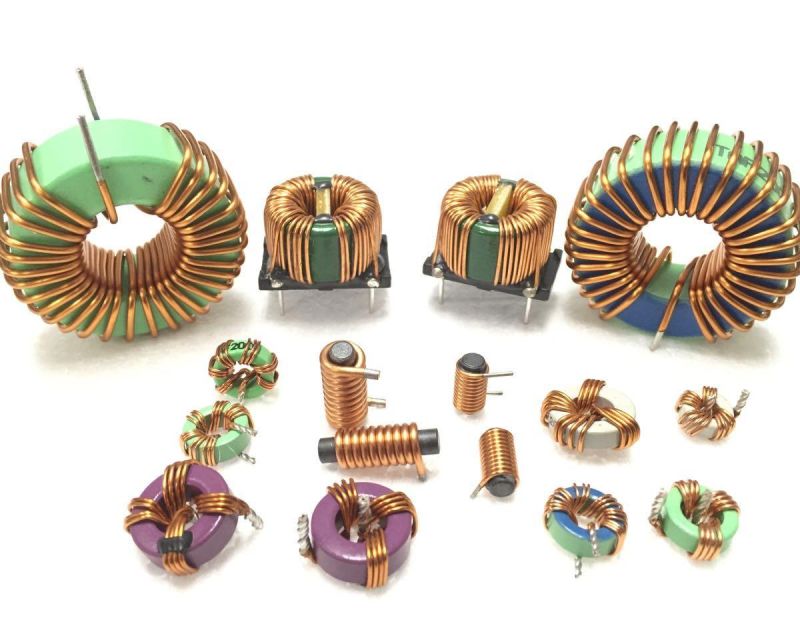

ITG offers a comprehensive portfolio of common mode chokes using MnZn ferrite, nanocrystalline, amorphous, and other advanced magnetic materials. Products are available in vertical, horizontal, flat-wire, and three-phase configurations to meet different requirements for PCB area, component height, current capacity, thermal performance, and EMI suppression.
Based on proven standard platforms, ITG also provides application-specific customization of magnetic material, impedance, inductance, current rating, winding structure, dimensions, and terminals. This enables faster development and an optimized balance of electrical performance, mechanical requirements, and total cost.
Product Category
Common Mode Chokes;
Read More

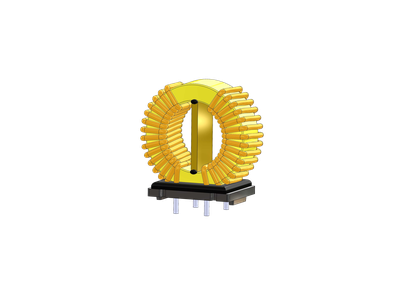

DCM232412B
Features of DCM232412B Series :<br /> •58.0 ×31.0mm Max.(L×W),61.5mm Max. Height.<br /> •Inductance range: 2.1mH～50.0mH,Custom values are welcomed.<br /> •AC common mode noise filter for Power Supplies and Lighting Application.<br /> •Rated Voltage: 300VAC.<br /> •Dielectric strength:2100Vrms,winding to winding.<br /> •Insulation material meet requirement of UL510 flame retardant.<br /> •UL94V-0 compliant for plastic material.<br /> •Operating temperature: -40 to +125℃.<br /> •RoHs & HF Compliant Components.
- DIP
Read More
Read More
Read More
Read More
Read More
Read More
Read More
Read More
DCN181713H
Nanocrystalline Common Mode Chokes Ideally used for AC circuits, and noise filter for TV and VCR.
- DIP
Read More
DCN181320V
Nanocrystalline Common Mode Chokes Ideally used for AC circuits, and noise filter for TV and VCR.
- DIP
Read More

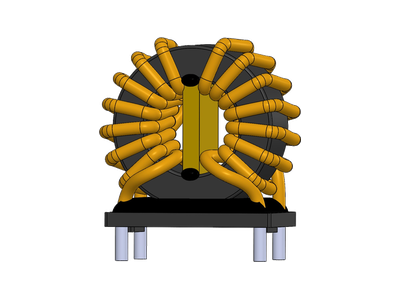

DCN151509AQ
0.9mH to 190.0mH, +50%/-30%, 1.1mOhm to 310.0mOhm, 32.0Amp to 2.0Amp Automotive Grade DIP Common Mode Chokes
- DIP
Read More

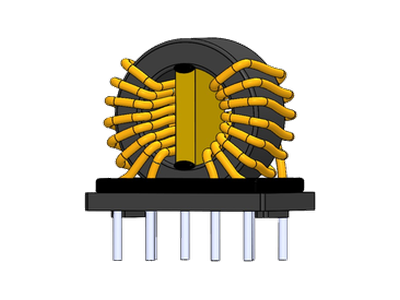

DCN121307AQ
0.7mH to 82.0mH, +50%/-30%, 1.8mOhm to 170.0mOhm, 24.0Amp to 2.5Amp Automotive Grade DIP Common Mode Chokes
- DIP
