DC/DC Converter

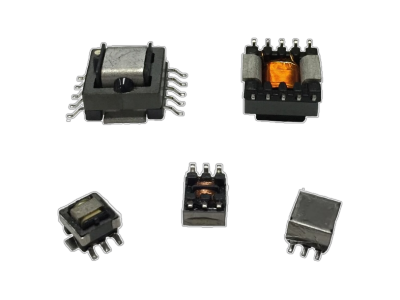

TREE0502ABQ

SMD Transformer in 8.38 x 7.21mmmm Max. DCR range: 0.55mOhm to 6.50mOhm

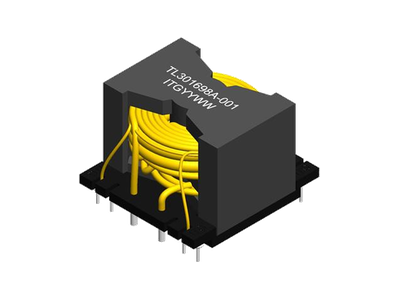

TL301698A

Transformer Integrated Resonant Inductor 25.0uH, 10%, upto 70.0A Irms

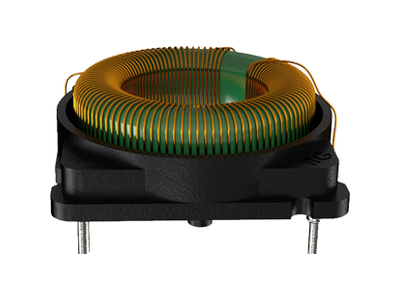

T301214

14mH-184mH, 20%, 0.60Ohm-5.65Ohm, 1:70-1:250 Turn Ratio. Current Sense Transformer

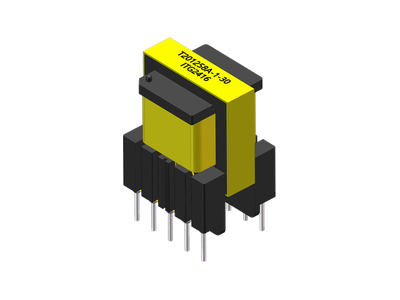

T201258A

Flyback Transformer 1.30mH, 10%, 4.0Ohm, 0.7Amp Isat

T181516

Half-bridge dual active LLC transformer, 26.7uH to 129.0uH, 10%, 0.16mOhm to 19.5mohm, 17.0Amp

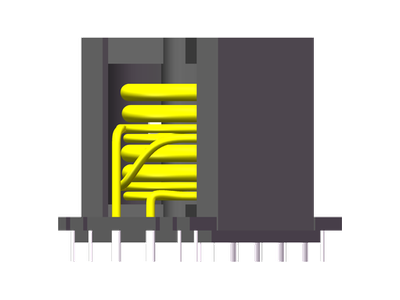

T181416

Half-bridge dual active LLC transformer, 33.0uH to 129.0uH, 10%, 0.33mOhm to 24.54mohm, 13.0Amp

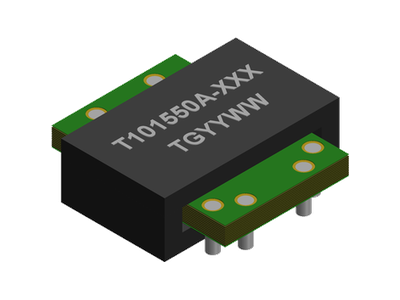

T101550A

SMD Planar Transformer 1.5uH to 6.0uH, 1.0mOhm to 2.2mOhm DCR, 26.0A to 35.0A Current

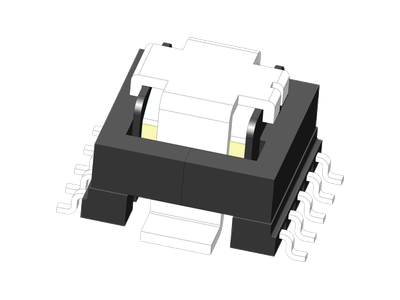

T10135

Current Sense Transformer 1.5mH to 224.0mH, 0.08mOhm to 0.28mOhm DCR, 50.0A to 80.0A Current

SLA694719C

Ferrite based Transformer 2.2uH to 3.2uH, 0.65mOhm DCR, 42.0A Current

SLA694717A

Ferrite based Transformer 2.2uH to 2.4uH, 0.6mOhm DCR, 42.0A Current

L101456

ST 48V 1500 Watt Integrated Coupled Inductor OCL: 2.7uH, Lk: 1.4uH, 0.86mOhm, 94.0Amp

L301314A

69.63uH to 300.00uH, 18.5mOhm to 170mOhm, 3.8A to 1.8A. DIP Toroidal Inductor

L301307

1.8mH-7.0mH, 10%, 125.0mOhm-650.0mOhm, 1.5A, 0.7A MAX. Toriod DIP

RL130815

Resonant Inductor 1.1uH - 33.0uH, 5% or 10%, 0.68mOhm - 7.55mOhm DCR, 4.4mOhm - 165.0mOhm ACR, 105.0Amp to 14.0Amp

L101374SP

Resonant Inductor 15.0uH - 56.0uH, 10%, 6.0mOhm - 15.0mOhm, 71.0Amp to 17.0Amp

QS110910MM

Inductor, 230.0nH, 50.0A, 0.45mΩ DCR.

QS110809F

Inductor, 0.26uH, 60A, 0.78mΩ DCR.

QS08087

Inductor, 230.0nH, 50.0A, 0.83mΩ DCR.

LR4332A

Inductor, 0.30uH, 50A, 0.65mΩ DCR.

LR3124H

Inductor, 300.0nH, 45.0A, 1.05mΩ DCR.

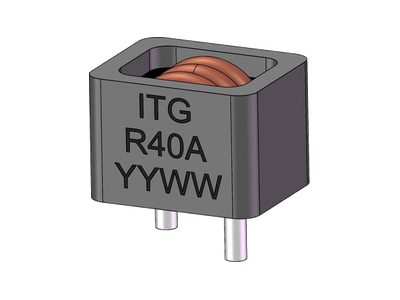

LR1108A

Inductor, 400.0nH, 30.0A, 0.77mΩ DCR.

SLR47476A

70nH to 120nH, 15%, 0.140mOhm, 180.0Amp to 110.0Amp SMD Power bead

SLR4730

Inductor, 1.0uH, 18.0A, 0.30mohm DCR.

SLR4340

0.33uH to 0.47uH, 20%, 1.05mOhm, 52.0Amp to 37.0Amp SMD Power bead.

SLR43327

SMD Power bead in 11.00 x 7.20mm Max. Inductance: 150.0nH

SLR41245A

70nH to 150nH, 15%, 0.50mOhm, 100.0Amp to 45.0Amp SMD Power bead.

SLR40475C

70nH to 150nH, 15%, 0.16mOhm, 135.0Amp to 64.0Amp SMD Power bead.

SLR3747A

70nH to 300nH, 15%, 0.145mOhm, 155.0Amp to 39.0Amp SMD Power bead.

SLR37408

0.10uH to 0.18uH, 15%, 0.16mOhm, 120.0Amp to 69.0Amp SMD Power bead.

SLQ40477A

0.33uH to 3.30uH, 20%, 1.10mOhm, 73.0Amp to 5.5Amp SMD Power bead.

SLQ40476A

0.33uH to 1.5uH, 20%, 0.8mOhm, 50.0Amp to 9.0Amp SMD Power bead.

SLQ40409A

0.33uH to 3.30uH, 20%, 1.05mOhm, 77.0Amp to 6.5Amp SMD Power bead.

SLQ40407A

0.20uH to 1.50uH, 20%, 0.73mOhm, 96.0Amp to 10.0Amp SMD Power bead.

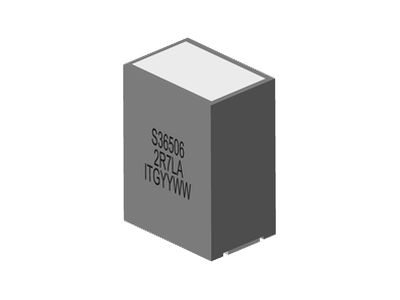

SLQ36506A

Inductance range: 470.0nH to 3.3uH. High current of up to 57.0A (20% Roll off)

SLQ36386A

0.36uH - 2.70uH, 15%, 1.30mOhm, 55.0-5.50A Max. SMD Power Bead

SLQ36385A

0.22uH - 1.50uH, 15%, 0.95mOhm, 68.0-7.50A Max. SMD Power Bead

SLM705918A

0.5uH-2.5uH, 20%, 0.55mOhm, 160A-24A Max. SMD Power Bead

SLM534214

0.22uH to 2.8uH, 20%, 0.42mOhm, 165Amp to 12Amp SMD Power bead.

SLM533514

SMD Power bead in 14.50 x 13.50mm Max. Inductance: 750.0nH.

SLM474712

0.39uH to 1.2uH, 20%, 0.69mOhm, 81.0Amp to 23.0Amp SMD Power bead.

SLM463710

0.22uH to 1.3uH, 20%, 0.35mOhm, 96.0Amp to 19.0Amp SMD Power bead.

SLM40327

0.18uH to 1.39uH, 20%, 0.85mOhm, 85.0Amp to 8.0Amp SMD Power bead.

SLD422810

SMD Power Bead in 10.70 x 10.00mm Max. Inductance value: 0.135uH.

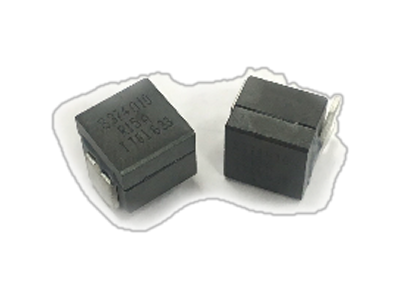

SLD3740A

0.1uH to 0.47uH, 10% or 15%, 0.29mOhm, 95Amp to 18Amp SMD Power bead.

SLAE4732

SMD Power bead in 13.40 x 10.84mm Max. Inductance: 210.0nH.

SLA47436A

70nH to 170nH, 15%, 0.125mOhm, 165.0Amp to 74.0Amp SMD Power bead.

SLA42487A

0.070uH to 0.22uH, 10%, 0.15mOhm, 230.0Amp to 75.0Amp SMD Power bead.

SLA41245B-R1

Immersion cooling ready Inductor 35nH to 120.0nH,180.0A to 54.0A, 0.20mΩ DCR

SLA41245B

35.0nH to 330.0nH, 15%, 0.20mOhm, 180.0A to 17.0A Max. SMD Power Bead

SLA406111

0.07uH to 0.60uH, 15%, 0.075mOhm, 248.0Amp to 29.0Amp SMD Power bead.

SLA40476B-R1

Immersion cooling ready Inductor 70nH to 580.0nH,170.0A to 18.0A, 0.125mΩ DCR

SLA40475A

70.0nH-100.0nH, 15%, 0.165mOhm, 135.0A-94.0A Max. SMD Power Bead

SLA40346A

80nH to 100nH, 15%, 0.125mOhm, 105.0Amp to 83.0Amp SMD Power bead

SLA3747A

70.0nH to 400.0nH, 10% to 15%, 0.175mOhm, 200.0A to 34.0A Max. SMD Power Bead

SLA3740A

70nH to 100nH, 15%, 0.125mOhm, 125.0Amp to 92.0Amp SMD Power bead.

SLA36386A

0.070uH to 0.330uH, 15%, 0.125mOhm, 130.0Amp to 27.0Amp SMD Power bead.

SLA36385B

0.150uH to 0.47uH, 15% or 20%, 0.40mOhm, 73.0Amp to 21.0Amp SMD Power bead

SLA36385A-R1

Immersion cooling ready Inductor 0.035uH to 0.47uH, 15%, 0.125mOhm, 230.0Amp to 16Amp SMD Power bead.

SLA36385A

0.035uH to 0.47uH, 15%, 0.125mOhm, 230.0Amp to 16Amp SMD Power bead.

SLA3247A-R1

Immersion cooling ready Inductor 70nH to 470.0nH,168.0A to 23.0A, 0.18mΩ DCR

SLA3247

0.07uH to 0.47uH, 10% or 15%, 0.18mOhm, 168.0Amp to 23.0Amp SMD Power Bead.

SLA3232A-R1

Immersion cooling ready Inductor 50nH to 180.0nH,169.0A to 46.0A, 0.18mΩ DCR

SLA3232A

0.05uH to 0.18uH, 10%, 0.18mOhm, 169.0Amp to 46.0Amp SMD Power Bead

SLA2843B-R1

Immersion cooling ready Inductor 60nH - 420nH, 15%, 0.16mOhm, 165.0A - 20.0A Max. SMD Power Bead

SLA26475A

100nH to 120nH, 10%, 0.23mOhm, 96.0Amp to 78Amp SMD Power bead

SL5920

0.055uH to 0.4uH, 10% or 15% , 0.47mOhm, 190Amp to 24Amp SMD Power bead.

SL5032

0.21uH to 0.44uH, 10%, 0.18mOhm, 71Amp to 35Amp SMD Power bead.

SL4330

0.15uH to 0.51uH, 10% or 15%, 0.245mOhm or 0.29mOhm, 72.0Amp to 19.0Amp SMD Power bead.

SL4320

55nH to 400nH, 10%, 0.35mOhm, 160.0Amp to 21.0Amp SMD Power bead.

SL4128

0.12uH to 0.39uH, 10% or 15%, 0.29mOhm, 88.0Amp to 28.0Amp SMD Power bead.

SL4125

0.10uH to 0.31uH, 10% or 15%, 0.48mOhm, 95.0Amp to 31.0Amp SMD Power bead.

SL3732AQ

70.0nH-510.0nH, 10%-15%, 0.29mOhm, 132.0A-14.0A. AEC-Q200 Grade 1 SMD Molded Inductor

SL3732-R1

Immersion cooling ready Inductor Inductance range: 70.0nH to 510.0nH. High current of up to 132.0A (20% Roll off). 9.60 x 6.40mm foot print with 8.00mm max height.

SL3028

50.0nH to 220.0nH, 10%, 0.5mOhm, 150.0Amp to 35.0Amp SMD Power bead.

SL30207

55nH to 200nH, 10%, 0.17mOhm, 90A to 20A Max. SMD Power Bead

SL2820

50.0nH to 250.0nH, 15% or 20%, 0.25mOhm to 0.32mOhm, 90.0Amp to 19.0Amp SMD Power bead.

SL2218

55nH to 160nH, 15%, 0.20mOhm, 63.0Amp to 18.0Amp SMD Power bead.

SL2026C

22nH to 150nH, 20%, 0.185mOhm, 110.0Amp to 22.0Amp SMD Power bead.

SL1616AQ

50.0nH-100.0nH, 15%-20%, 0.32mOhm, 29.0A-17.0A. AEC-Q200 Grade 1 SMD Molded Inductor

SL1616

Inductance range: 50.0nH to 100.0nH. High current of up to 29.0A (20% Roll off). 4.00 x 4.00mm foot print with 4.00mm max height.

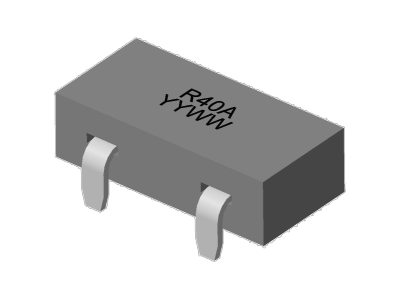

L30956

SMD Power Bead in 17.00 x 9.80mm Max. DCR value: 0.4mOhm.

L101423A-R1

Immersion cooling ready Inductor 70.0nH to 240.0nH. High current of up to 115.0A (20% Roll off). 6.50 x 6.50mm foot print with 10.00mm max height.

L101423A

Inductance range: 70.0nH to 240.0nH. High current of up to 115.0A (20% Roll off). 6.50 x 6.50mm foot print with 10.00mm max height.

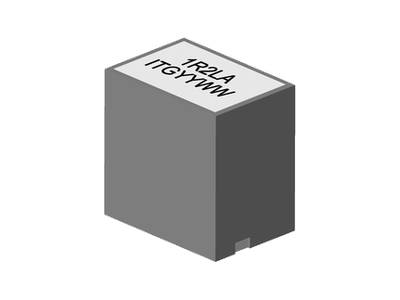

L101158

0.33uH to 1.6uH, 15%, 0.81mOhm, 65.0Amp to 14.0Amp SMD Power bead.

FB13A

0.09uH to 0.3uH, 10%, 0.17mOhm, 134Amp to 33Amp SMD Power bead

AHR4053

70.0 nH to 150.0 nH. 0.125mOhm DCR. 180.0A to 84.0 A Max. 10.0 x 6.40 mm foot print with 13.50 mm max height.

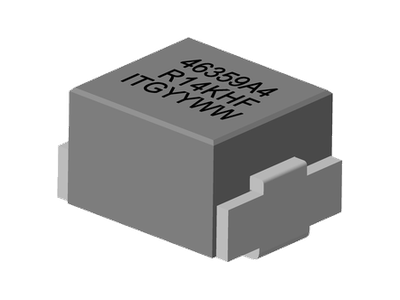

AHD46359

0.14uH to 0.15uH, 10% , 0.10mOhm, 76 to 70Amp SMD Power Bead.

AHD46359

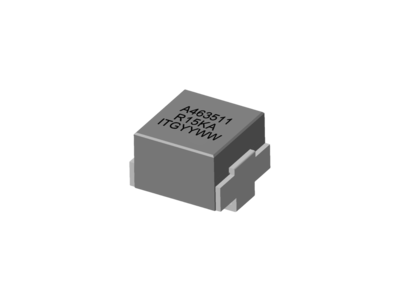

AHD463511

0.15uH, 10%, 0.15mOhm, 83Amp SMD Power Bead. 0.17uH, 10%, 0.1mOhm, 68Amp SMD Power bead

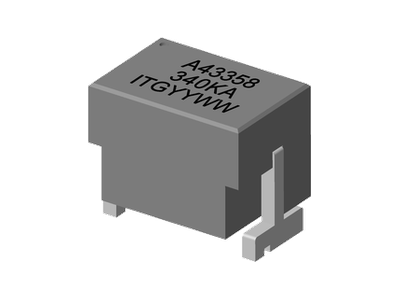

AHD43358

0.34uH, 10%, 0.41mOhm, 35Amp SMD Power Bead.

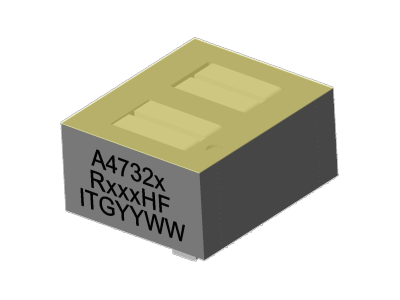

AHAE4732

Inductance: 210.0 nH. High current of up to 48.0 A (20% Roll off). 13.20 x 10.85 mm foot print with 8.64 mm max height.

AHA47476A-R1

Immersion cooling ready Coupling Inductor for TLVR 70nH to 250.0nH,180.0A to 55.0A, 0.14mΩ to 0.45mΩ DCR

AHA47476A

Coupling Inductor for TLVR ,70nH to 250.0nH,180.0A to 55.0A, 0.14mΩ to 0.45mΩ DCR

AHA47475C

Coupling Inductor for TLVR, 100nH to 120.0nH, 105.0A to 86.0A, 0.125mΩ to 0.45mΩ DCR

AHA47475A-R1

Immersion cooling ready Coupling Inductor for TLVR 70nH to 180.0nH,150.0A to 55.0A, 0.145mΩ to 0.65mΩ DCR

AHA47475A

Coupling Inductor for TLVR ,70nH to 180.0nH,150.0A to 55.0A, 0.145mΩ to 0.65mΩ DCR

AHA47436Q

Automotive Grade Coupling Inductor for TLVR 70nH to 200.0nH,165.0A to 62.0A, 0.125mΩ to 0.40mΩ DCR

AHA47436A-R1

Immersion cooling ready Coupling Inductor for TLVR 70nH to 200.0nH,165.0A to 62.0A, 0.125mΩ to 0.40mΩ DCR

AHA47436A

Coupling Inductor for TLVR ,70nH to 200.0nH,165.0A to 62.0A, 0.125mΩ to 0.40mΩ DCR

AHA47326A-R1

Immersion cooling ready Coupling Inductor for TLVR 80.0nH-120.0nH, 15%, 0.10mOhm, 105.0A-70.0A Max. SMD Power Bead

AHA47326A

80.0nH-120.0nH, 15%, 0.10mOhm, 105.0A-70.0A Max. SMD Power Bead

AHA43325A

Coupling Inductor for TLVR, 70nH to 100.0nH, 105.0A to 74.0A, 0.23mΩ to 0.65mΩ DCR

AHA41245A

Coupling Inductor for TLVR, 70nH to 150.0nH, 100.0A to 45.0A, 0.50mΩ to 0.75mΩ DCR

AHA40476A

Coupling Inductor for TLVR ,70nH to 170.0nH, 165.0A to 63.0A, 0.125mΩ to 0.53mΩ DCR

AHA40475A

Coupling Inductor for TLVR ,70nH to 150.0nH,135.0A to 64.0A, 0.16mΩ to 0.6mΩ DCR

AHA3747A

Coupling Inductor for TLVR ,100nH to 170.0nH,110.0A to 65.0A, 0.145mΩ to 0.55mΩ DCR

AHA3740A

Coupling Inductor for TLVR ,100nH to 150.0nH,125.0A to 65.0A, 0.125mΩ to 0.45mΩ DCR

AH4715

Inductance: 125.0 nH to 610.0 nH. High current of up to 53.0 A (20% Roll off). 12.10 x 10.00 mm foot print with 4.00 mm max height.

AH4240

Inductance: 70.0 nH to 330.0 nH. 0.165mOhm DCR. High current of up to 200.0 A (20% Roll off). 10.90 x 8.00 mm foot print with 10.00 - 10.60mm max height.

AH42328C

100nH, 10%, 0.18mOhm, 125A Max. Power Bead SMD

AH42308

Inductance: 120.0 nH to 150.0 nH. High current of up to 95.0 A (20% Roll off). 10.90 x 8.00mm foot print with 7.50 mm max height.

AH3933

Inductance: 65.0nH to 150.0nH. High current of up to 110.0 A (20% Roll off). 10.00 x 6.40mm foot print with 8.50 mm max height.

AH2520

Inductance: 72.0 nH to 150.0 nH. High current of up to 60.0 A (20% Roll off). 7.00 x 7.00 mm foot print with 4.96 mm max height.

AFA47476A

70nH-250nH, 15%, 0.14mOhm, 180.0A-55.0A Max. SMD Power Bead

AFA47325A

Coupling Inductor for TLVR ,70nH to 120.0nH, 93.0A to 54.0A, 0.105mΩ to 0.45mΩ DCR

AFA41405B

40.0nH - 220.0nH, 15%, 0.23mohm, 220.0A - 42.0A Max. SMD Power Bead

AFA40476

80nH to 120nH, 15%, 0.125mOhm, 160 A to 105 A Max. 10.0mm x 6.0mm x 12.0mm SMD Power Bead

AFA3732A-R1

Immersion cooling ready Inductor 40nH to 300.0nH, 210.0A to 26.0A, 0.145mΩ DCR

AFA3732

40nH-300nH, 15%, 0.145mOhm, 210.0A-26.0A Max. SMD Power Bead

AF50175A

Inductance range: 50.0 nH to 100.0 nH, High current output chokes , up to 130.0 Amp with approx. 20% roll off. Low Profile 4.30mm max height

AF24245A

30nH to 35nH, 15%, 0.185mOhm, 120.0Amp to 102.0Amp SMD Inductor

AF2218A

Inductance range: 35.0 nH to 105.0 nH, High current output chokes , up to 90.0 Amp with approx. 20% roll off. Low Profile 4.60 to 4.80 mm max height

AF13A

Inductance: 0.065 uH to 0.30 uH. High current of up to 165.0 A (10% Roll off). 9.60 x 6.40 mm foot print with 9.00 mm max height.

SMX40187A

0.09uH-0.47uH, 20%, 0.33mOhm-1.25mOhm, 120.0A-50.0A Max. SMD Molded Inductor

SMX40157A

70nH to 150nH, 20%, 0.23mOhm to 0.42mOhm, 105.0Amp to 75.0Amp SMD Molded Inductor

SMX2511A

0.10uH-22.0uH, 20%, 0.68mOhm-130.5mOhm, 70.0-4.3A Max. SMD Molded Inductor

SMHC5026

0.3uH to 22.0uH, 20%, 0.72mOhm to 34.5mOhm, 80.0Amp to 10.0Amp SMD Molded Inductor.

SMHC5020

0.15uH to 10.0uH, 20%, 0.35mOhm to 17.7mOhm, 75.0Amp to 14.0Amp SMD Molded Inductor.

SMHC5013A

0.47uH to 4.7uH, 20%, 1.25mOhm to 13.25mOhm, 55.0Amp to 24.0Amp SMD Molded Inductor.

SMHC4020

0.36uH to 2.8uH, 20%, 0.75mOhm to 6.0mOhm, 32.0Amp to 18.0Amp SMD Molded Inductor.

SMHC40156A

0.10uH-0.36uH, 20%, 0.60mOhm-1.36mOhm, 120.0A-58.0A Max. SMD Molded Inductor

SMHC4015

0.19uH to 100.0uH, 20%, 0.95mOhm to 270.0mOhm, 90.0Amp to 2.25Amp SMD Molded Inductor.

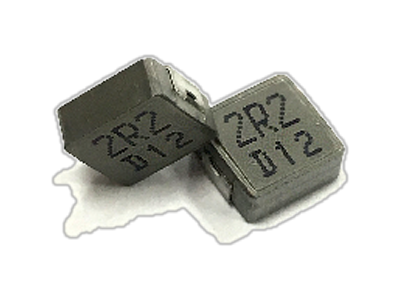

SMHC2511J

0.1uH to 10.0uH, 20%, 1.4mOhm to 97.0mOhm, 60.0Amp to 7.0Amp SMD Molded Inductor.

SMHC2511A

1.0uH to 22.0uH, 20%, 7.6mOhm to 135.0mOhm, 22.0Amp to 2.5Amp SMD Molded Inductor.

SMHC2511

0.1uH to 10.0uH, 20%, 1.5mOhm to 105.0mOhm, 60.0Amp to 7.0Amp SMD Molded Inductor.

SMHC2011

0.2uH to 6.8uH, 20%, 4.2mOhm to 66.0mOhm, 25.0Amp to 4.5Amp SMD Molded Inductor.

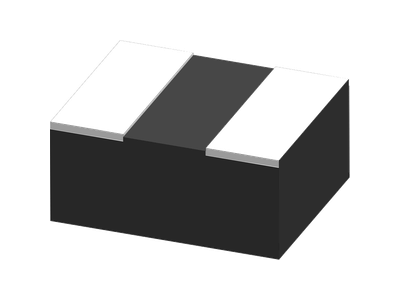

SMF252012A

0.33uH-2.2uH, 20%, 7.8mOhm-54.0mOhm, 9.5A-3.0A Max. SMD Molded Inductor

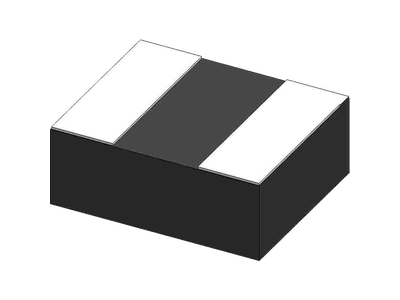

SMF252010A

0.1uH-4.7uH, 20%, 5.8mOhm-145.0mOhm, 9.0A-2.1A Max. SMD Molded Inductor

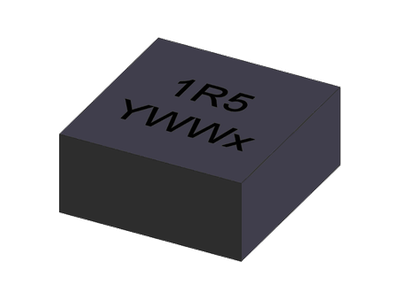

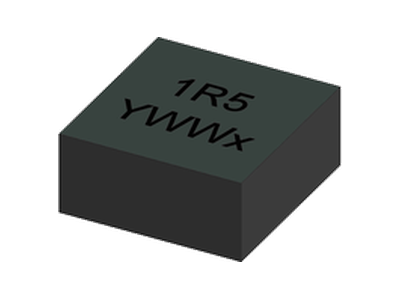

SMF2511B

0.18uH-4.5uH, 20%, 1.52mOhm-21.0mOhm, 40.0A-8.0A Max. SMD Molded Inductor

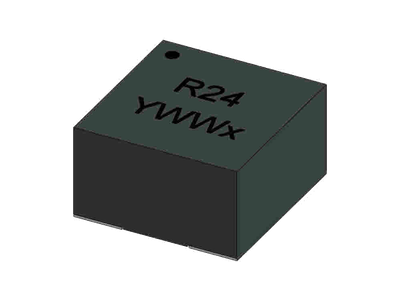

SMF2511A

0.10uH-3.3uH, 20%, 0.55mOhm-14.0mOhm, 78.0A-14.0A Max. SMD Molded Inductor

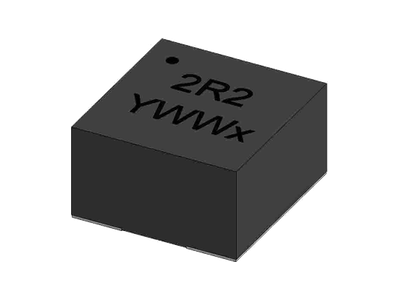

SMF2011B

0.10uH-4.7uH, 20%, 0.74mOhm-16.5mOhm, 53.0A-7.2A Max. SMD Molded Inductor

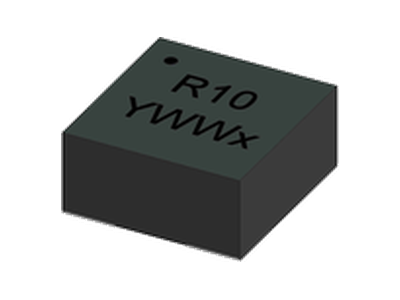

SMF2009A

0.10uH-0.33uH, 20%, 0.83mOhm-2.00mOhm, 56.0A-34.0A Max. SMD Molded Inductor

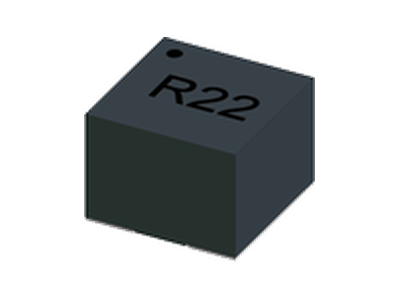

SMF1611B

0.10uH to 6.8uH, 20%, 1.2mOhm to 47.0mOhm, 45.0Amp to 5.0Amp SMD Molded Inductor

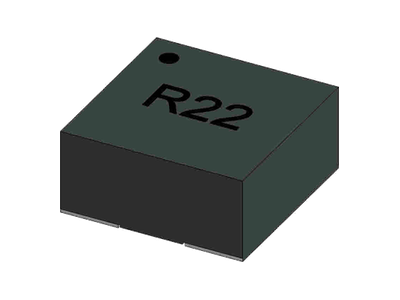

SMF1608B

0.1uH-4.7uH, 20%, 1.3mOhm-33.0mOhm, 35.0A-5.0A Max. SMD Molded Inductor

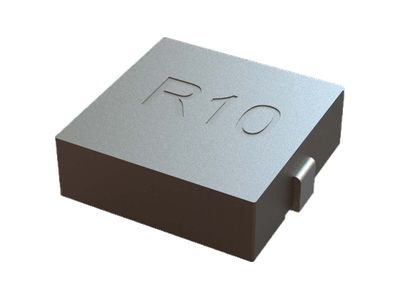

SMF1605A

0.1uH, 20%, 4.85mOhm, 20.0Amp SMD Molded Inductor.

SMF1205B

0.1uH to 1.0uH, 20%, 7.8mOhm to 32.0mOhm, 20.0Amp to 5.5Amp SMD Molded Inductor.

SMEC2511A

0.22uH-10.0uH, 20%, 2.15mOhm-60.00mOhm, 34.0A-5.5A Max. SMD Molded Inductor

SM6827A

0.47uH to 100uH, 20%, 0.78mOhm to 95.0mOhm, 85.5Amp to 4.5Amp SMD Molded Inductor

SM5026Q

0.22uH-33.0uH, 20%, 0.53mOhm-40.20mOhm, 105.0A-8.0A Max. SMD Power Bead

SM5026A

0.15uH - 47.0uH, 20%, 0.42mOhm - 70.0mOhm, 125.0A - 9.5A Max. SMD Molded Inductor

SM5024A

Inductor, 120.0uH, 3.2A, 0.235Ω DCR.

SM5018A

0.15uH to 47.0uH, 20%, 0.35mOhm to 90.5mOhm, 75.0Amp to 5.0Amp SMD Molded Inductor.

SM5018

0.47uH to 1.0uH, 20%, 1.1mOhm to 2.1mOhm, 65.0Amp to 50.0Amp SMD Molded Inductor.

SM4024

SMD Molded Inductor in 11.7x10mmmm Max. Inductance: 330.0nH

SM4020A

0.47uH-100.0uH, 20%, 1.06mOhm-308.0mOhm, 45.0A-2.5A Max. SMD Molded Inductor

SM4018Q

0.68uH-47.0uH, 20%, 1.6mOhm-96.0mOhm, 32.0A-4.5A Max. SMD Power Bead

SM4015A

0.10uH to 68.0uH, 20%, 0.34mOhm to 209.0mOhm, 95.0Amp to 3.0Amp SMD Molded Inductor.

SM4015

0.45uH to 2.2uH, 20%, 1.10mOhm to 8.20mOhm, 50.0Amp to 25.6Amp SMD Molded Inductor.

SM4013A

0.12uH - 3.30uH, 20%, 0.455mOhm - 9.5mOhm, 70.0A - 11.0A Max. SMD Molded Inductor

SM4007

Inductor, 2.20uH, 11.0A, 23.0mΩ DCR.

SM3315A

0.10uH-33.0uH, 20%, 0.48mOhm-120.0mOhm, 72.0-4.0A Max. SMD Molded Inductor

SM2518A

0.22uH to 6.8uH, 20%, 1.1mOhm to 36.0mOhm, 32.0Amp to 6.5Amp SMD Molded Inductor.

SM2518

0.22uH to 1.0uH, 20%, 1.2mOhm to 5.6mOhm, 50.0Amp to 17.0Amp SMD Molded inductor

SM2515B

Inductor, 2.2uH, 11.0A, 11.0mΩ DCR.

SM2515A

0.10uH-22uH, 20%, 0.66mOhm-114.20mOhm, 65.0A-3A Max. SMD Molded Inductor

SM2511B

Inductor, 2.2uH, 10.0A, 11.0mΩ DCR.

SM2511A

0.033uH to 33.0uH, 20%,0.26mOhm to 310.0mOhm, 100.0Amp to 2.5Amp SMD Molded Inductor.

SM2511

0.1uH to 10.0uH, 20%, 1.5mOhm to 105.0mOhm, 60.0Amp to 7.0Amp SMD Molded Inductor.

SM2509A

0.1uH to 22uH, 20%, 0.8mOhm to 238mOhm, 52Amp to 2.25Amp SMD Power Inductor

SM2507A

SM2506A

0.045uH to 0.22uH, 20%, 1.0mOhm to 5.4mOhm, 45Amp to 27Amp SMD Molded Inductor

SM2504

1.0uH to 10.0uH, 20%, 36.0mOhm to 265.0mOhm, 6.0Amp to 2.1Amp SMD Molded Inductor.

SM2011TK

3.3uH to 4.7uH, 20%, 38.0mOhm to 61.0mOhm, 4.20Amp to 3.50Amp SMD Molded Inductor.

SM2011A

0.1uH to 10.0uH, 20%, 2.4mOhm to 119.5mOhm, 33.0Amp to 3.9Amp SMD Molded Inductor.

SM2011

0.2uH to 4.7uH, 20%, 4.2mOhm to 63.9mOhm, 26.5Amp to 6.0Amp SMD Molded Inductor.

SM2008A

0.47uH - 3.30uH, 20%, 7.5mOhm - 42.0mOhm, 17.0A - 7.0A Max. SMD Molded Inductor

SM2007A

Molded inductor ideal for portable devices, Tablets and high density DC to DC converter.

SM2006A

0.22uH-3.30uH, 20%, 3.85mOhm-89.00mOhm, 17.0A-4.25A Max. SMD Molded Inductor

SM1608A

0.02uH to 22.0uH, 20%, 0.355mOhm to 330.0mOhm, 78.0Amp to 1.65Amp SMD Molded Inductor.

SM1608

0.1uH to 6.8uH, 20%, 4.5mOhm to 162.0mOhm, 11.0Amp to 2.0Amp SMD Molded Inductor.

SQE43xx

0.36uH to 1.0uH, 20%, 0.9mOhm to 3.0mOhm, 40.0Amp to 21.0Amp Elevated Flat Wire Inductor.

SQ7040A

2.0uH, 1.30mOhm Max, 37A Max. Flat Wire SMD

SQ4331

0.4uH to 1.0uH, 20%, 0.91mOhm to 1.76mOhm, 43.0Amp to 26.0Amp SMD Flat Wire Inductor.

SQ4126

0.42uH to 10.0uH, 20%, 1.2mOhm to 9.169mOhm, 45.0Amp to 5.3Amp SMD Flat Wire Inductor.

SQ4121

Power Inductor, 1.5uH, 16.0A,2.48mΩ DCR.

SQ4120

0.62uH to 1.5uH, 1.10mOhm Max, 23A to 8.0A Max. Flat Wire SMD

SQ4115

0.62uH to 1.40uH, 1.15mOhm-2.90mOhm, 24A to 10A Max. Flat Wire SMD

SQ10

0.33uH to 4.7uH, 20%, 1.3mOhm to 12.35mOhm, 50.0Amp to 13.0Amp SMD Flat Wire Inductor.

SC7236D

7.6uH to 85.0uH, 20%, 3.9mOhm to 50.0mOhm, 26.0Amp to 7.8Amp SMD Flat Wire Inductor.

SC7236

10.0uH to 100.0uH, 20%, 6.9mOhm to 50.0mOhm, 18.8Amp to 4.7Amp SMD Flat Wire Inductor.

SC7232

0.1uH to 3.0uH, 20%, 1.02mOhm to 22.2mOhm, 22.0Amp to 6.5Amp SMD Flat Wire Inductor.

SC6020 & SC6027

0.33uH to 19.0uH, 20%, 0.58mOhm to 13.5mOhm, 60.0Amp to 11.0Amp SMD Flat Wire Inductor.

SC5113

0.27uH to 3.3uH, 20%, 0.85mOhm to 8.6mOhm, 23.0Amp to 10.0Amp SMD Flat Wire Inductor

SC5032

1.5uH to 10.0uH, 20%, 1.42mOhm to 9.5mOhm, 40Amp to 17Amp SMD Flat Wire Inductor

SC5026H

10.0uH to 22.0uH, 20%, 11.70mOhm to 24.50mOhm, 8.0Amp to 13.0Amp SMD Flat Wire Inductor.

SC5024

0.47uH - 5.4uH, 20%, 0.75mOhm - 7.7mOhm, 37.0A - 11.0A. SMD Flatwire Inductor

SC5022

6.0uH to 10.0uH, 20%, 10.0mOhm to 13.9mOhm, 16.0Amp to 12.0Amp SMD Flat Wire Inductor

SC5021

0.5uH to 1.0uH, 20%, 0.82mOhm to 1.42mOhm, 60.0Amp to 37.0Amp SMD Flat Wire Inductor

SC5020

0.22uH to 9.0uH, 20%, 0.5mOhm to 13.9mOhm, 80.0Amp to 13.0Amp SMD Flat Wire Inductor

SC5018

1.2uH to 2.7uH, 20%, 1.64mOhm to 4.1mOhm, 35.0Amp to 24.0Amp SMD Flat Wire Inductor

SC5015

0.67uH to 1.2uH, 20%, 1.28mOhm to 2.58mOhm, 35.0Amp to 23.5Amp SMD Flat Wire Inductor

SC4025-13

SMD Flat Wire Inductor in 10.40 x 10.40mm foot print, 3.6mm to 6.35mm height. Inductance range: 0.75uH to 0.47uH

SC4018

0.20uH to 3.9uH, 20%, 0.5mOhm to 7.4mOhm, 33Amp to 10.5Amp SMD Flat Wire Inductor

SC4015

0.15uH to 4.7uH, 20%, 0.68mOhm to 14mOhm, 30Amp to 8.0Amp SMD Flat Wire Inductor

SC3020

0.3uH to 6.8uH, 20%, 0.83mOhm to 19.5mOhm, 36Amp to 8.0Amp SMD Flat Wire Inductor

SC3018S

0.4uH to 6.8uH, 20%, 1.8mOhm to 22.5mOhm, 35Amp to 8Amp SMD Flat Wire Inductor

SC3018

0.23uH to 4.7uH, 20%, 0.75mOhm to 16.5mOhm, 29.0Amp to 9.1Amp SMD Flat Wire Inductor.

SC3015

0.25uH to 0.47uH, 20%, 1.0mOhm to 1.6mOhm, 42Amp to 35Amp SMD Flat Wire Inductor

SC3013

0.11uH to 1.22uH, 20%, 0.45mOhm to 5.7mOhm, 35.0Amp to 13.0Amp SMD Flat Wire Inductor.

SC3011

0.11uH to 1.35uH, 20%, 0.63mOhm to 8.45mOhm, 32.0Amp to 12.0Amp SMD Flat Wire Inductor.

SC2517

Inductor, 0.33uH, 22.0A, 1.5mΩ DCR.

SC2515

0.33uH to 5.0uH, 20%, 1.88mOhm to 34.3mOhm, 40.0Amp to 7.3Amp SMD Flat Wire Inductor

SC2511

0.1uH to 10uH, 20%, 1.0mOhm to 106.5mOhm, 23Amp to 2.4Amp SMD Flat Wire Inductor

PQ87

0.47uH to 2.2uH, 20% or 15%, 0.73mOhm to 1.75mOhm, 40Amp to 33Amp SMD Flat Wire Inductor

PQ108081H

100.0uH to 1000.0uH, 20%, 28.5mOhm to 206.0mOhm, 10.3Amp to 3.1Amp SMD Flat Wire Inductor.

PQ108081

3.3uH to 560uH, 20%, 2.5mOhm to 95.0mOhm, 89.0Amp to 4.0Amp SMD Flat Wire Inductor.

L301316

0.96uH to 11.60uH, 20%, 0.25mOhm to 1.00mOhm DCR, 100A to 75A Isat. DIP Flat Wire Inductor

L201316

0.96uH - 11.60uH, 20%, 0.25mOhm - 1.0mOhm, 100.0A - 75.0A Max. Flatwire DIP Inductor

L101353A

None Coupling Dual Phase shielded Inductor. 1.0uH-10.0uH, 20%, 1.06mOhm 170.0Amp Max L101353A-3R6MHF for ST 48V Solution

DHP106095S

3.3uH to 100.0uH, 20%, 2.2mOhm to 15.5mOhm, 89Amp to 8.9Amp DIP Flat Wire Inductor

AQ50xx

0.22uH to 10.0uH, 15%, 0.76mOhm to 8.1mOhm, 45Amp to 7Amp SMD Flat Wire Inductor

AQ4024

0.75uH to 12.0uH, 15% or 20%, 2.2mOhm to 16.0mOhm, 19.0Amp to 3.5Amp SMD Flat Wire Inductor.

AQ10

0.33uH to 4.7uH, 20%, 1.3mOhm to 12.35mOhm, 50Amp to 13Amp Elevated Flat Wire Inductor

SPNR4220A

0.47uH - 10.0uH, 20%, 16.0mOhm - 185.0mOhm, 17.0A - 3.6A Max. SMD Drum Inductor

SPNR4213A

0.33uH - 22.0uH, 20%, 25.0mOhm - 628.0mOhm, 11.5A - 1.25A Max. SMD Drum Inductor

SPNR3213A

0.33uH-10.0uH, 20%-30%, 21.0mOhm-370.0mOhm, 9.5A-1.35A Max. SMD Drum Inductor Miniature SMD Shielded Power Inductor in a 3.2*3.2mm foot print. Low profile : 1.35mm max. height.

SPNR252012A

Inductance: 0.33 uH to 10.00 uH. High current of up to 7.0 A (30% Roll off). 2.80 x 2.35 mm foot print with 1.30 mm max height.

SLNR4320

1.0uH to 100.0uH, 20% or 30%, 29mOhm to 1350mOhm, 4.85Amp to 0.52Amp SMD Drum Inductor.

SLNR4318

1.0uH to 220.0uH, 20% or 30%, 30mOhm to 4000mOhm, 4.0Amp to 0.27Amp SMD Drum Inductor.

SLNR4312

0.82uH to 100.0uH, 20% or 30%, 50mOhm to 2210mOhm, 3.53Amp to 0.25Amp SMD Drum Inductor.

SLNR4310

1.0uH to 47.0uH, 20% or 30%, 100mOhm to 1810mOhm, 1.8Amp to 0.24Amp SMD Drum Inductor.

SLNR3315

1.0uH to 68.0uH, 20% or 30%, 30mOhm to 2700mOhm, 2.3Amp to 0.28Amp SMD Drum Inductor.

SLNR3312

0.82uH to 100.0uH, 20% or 30%, 30mOhm to 2860mOhm, 2.05Amp to 0.21Amp SMD Drum Inductor.

SLNR3310

1.0uH to 56.0uH, 20% or 30%, 65mOhm to 2320mOhm, 1.4Amp to 0.21Amp SMD Drum Inductor.

SLNR8340

0.82uH to 330.0uH, 20% or 30%, 8.0mOhm to 889mOhm, 13.8Amp to 0.68Amp SMD Drum Inductor.

SLNR6345

0.82uH to 330.0uH, 20% or 30%, 8.0mOhm to 1270mOhm, 10.35Amp to 0.57Amp SMD Drum Inductor.

SLNR6328

1.5uH to 100.0uH, 20% or 30%, 13mOhm to 545mOhm, 6.0Amp to 0.75Amp SMD Drum Inductor.

SLNR6320

0.5uH to 22.0uH, 20% or 30%, 13mOhm to 204mOhm, 4.9Amp to 1.25Amp SMD Drum Inductor.

SLNR6312

2.5uH to 100.0uH, 20% or 30%, 90mOhm to 2180mOhm, 2.1Amp to 0.35Amp SMD Drum Inductor.

SLNR6310

1.5uH to 22.0uH, 20% or 30%, 90mOhm to 580mOhm, 2.4Amp to 0.65Amp SMD Drum Inductor.

SLNR6247

Power Inductor, 4.7uH, 6.7A, 31.0mΩ DCR.

SLNR5341

1.0uH to 680.0uH, 20% or 30%, 14mOhm to 3846mOhm, 7.5Amp to 0.3Amp SMD Drum Inductor.

SLNR5320

0.75uH to 100.0uH, 20% or 30%, 14mOhm to 1060mOhm, 6.32Amp to 0.57Amp SMD Drum Inductor.

SLNR4330

Inductance range: 0.91uH to 120.0uH. High current of up to 6.25A (30% Roll off). 4.30 x 4.30mm foot print with 3.00mm max height.

SLNR252012

0.68uH to 15.0uH, 20% or 30%, 65mOhm to 1250mOhm, 3.06Amp to 0.67Amp SMD Drum Inductor.

SLNR252010

0.47uH to 10.0uH, 20% or 30%, 47mOhm to 1092mOhm, 3.35Amp to 0.78Amp SMD Drum Inductor.

SDRT63

3.0uH to 100.0uH, 10%, 20% or 30%, 17.0mOhm to 535.0mOhm, 3.0Amp to 0.54Amp SMD Drum Inductor.

SDRT53

1.2uH to 180.0uH, 10%, 20% or 30%, 23.6mOhm to 1540.0mOhm, 2.56Amp to 0.22Amp SMD Drum Inductor.

SDRS104

1.5uH to 330.0uH, 20% or 30%, 8.1mOhm to 1090mOhm, 10.5Amp to 0.85Amp SMD Drum Inductor

SDRR07645

1.2uH to 100.0uH, 25%, 5.8mOhm to 455.8mOhm, 13.0Amp to 1.7Amp SMD Drum Inductor.

SDRR07630

1.2uH to 470.0uH, 25%, 6.94mOhm to 2687.5mOhm, 8.0Amp to 0.4Amp SMD Drum Inductor.

SDRR06830

1.0uH to 120.0uH, 25%, 7.21mOhm to 785.3mOhm, 8.5Amp to 0.8Amp SMD Drum Inductor.

SDRR06825

0.65uH to 100.0uH, 25%, 6.51mOhm to 686.5mOhm, 7.0Amp to 0.6Amp SMD Drum Inductor.

SDRH74B

1.0uH to 1000.0uH, 20%, 0.0085mOhm to 5.40mOhm, 10.2Amp to 0.31Amp SMD Drum Inductor

SDRH73B

1.0uH to 1000.0uH, 20%, 0.0091Ohm to 6.072Ohm, 8.0Amp to 0.24Amp SMD Drum Inductor

SDRH127B

Inductance range: 0.82uH to 1000.0uH. High current of up to 38.0A (30% Roll off). 12.5 x 12.5mm foot print with 8.10mm max height.

SDRH127

1.5uH to 1000.0uH, 20% or 30%, 7mOhm to 1820mOhm, 9.8Amp to 0.55Amp SMD Drum Inductor.

SDRH125B

SMD Shielded Drum inductor in 12.5 x 12.5mm foot print, 6.0mm height. Inductance range: 0.82 uH to 1000.0 uH

SDRH125

SMD Shielded Drum inductor in 12.5 x 12.5mm foot print, 6.0mm height. Inductance range: 1.0uH to 1000uH

SDRH124

SMD Shielded Drum inductor in 12.5 x 12.5mm foot print, 4.5mm height. Inductance range: 2.4uH to 330uH

SDRD6035

Power Inductor, 3.3uH, 2.57A, 26mΩ DCR.

SDBL8040

680uH, 20%, 2.2Ohm, 0.3Amp SMD Drum Inductor Foot Print 8.6x8.7mm 4.3mm height.

SD54

Inductance: 0.60 uH to 220.0 uH. High current of up to 11.0 A (10% Roll off). 6.10 x 5.50 mm foot print with 4.85 mm max height

L201392A

150.0uH-1000.0uH, 10%, 0.255mOhm-1.780mOhm, 1.50A-0.56A Max. DIP Drum Inductor

BF5220

1.0uH to 1000uH, 0.009 to 2.47mOhm, 14.4 to 0.45Amp miniature SMD power inductor.

FCM897316A-240

240.0Z, 30%, 0.10mOhm, 105.0A Max. DIP Common Mode Choke

FCM232214H

6.0mH to 15.0mH, 53.0mOhm to 200mOhm, 1.5Amp to 3.2Amp DIP Common Mode Chokes

FCM231426V

6.0mH to 15.0mH, 53.0mOhm to 200mOhm, 1.5Amp to 3.2Amp DIP Common Mode Chokes

C201368A

1.0mH-5.0mH, 30%, 8.5mOhm-54mOhm, 11.0A-5.0A Max. DIP Common Mode Choke

C201367A

1.0mH-5.0mH, 30%, 8.0mOhm-45.0mOhm, 12.0A-5.0A Max. DIP Common Mode Choke
