- DIP

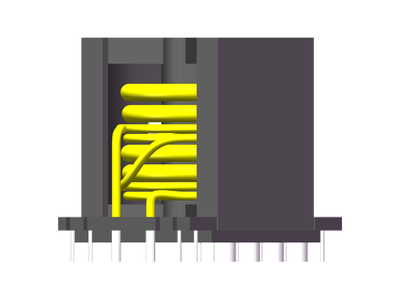

T181416 Series
• Half-bridge dual active LLC transformer ,The power of 1500W to 2500W
• operating frequency range:100KHz to 500KHz
• The inductance tolerance of 10%
• Inductance range:33.0uH to 129.0uH,custom values are welcomed
• The leakage inductance can be adjusted to match the resonant inductance
• Maximum footprint:45.0 x 41.5 mm, with a maximum height of 35.0 mm
• Input voltage is 400 VDC to 800VDC
• The turn ratio can be easily customized per application
• Dielectric strength:3500VDC(pri to sec), 3500VDC(pri to core), 2500VDC(sec to core).
• Operating temperature range: -55 ℃ to +130 ℃, RoHs&HF compliant
• operating frequency range:100KHz to 500KHz
• The inductance tolerance of 10%
• Inductance range:33.0uH to 129.0uH,custom values are welcomed
• The leakage inductance can be adjusted to match the resonant inductance
• Maximum footprint:45.0 x 41.5 mm, with a maximum height of 35.0 mm
• Input voltage is 400 VDC to 800VDC
• The turn ratio can be easily customized per application
• Dielectric strength:3500VDC(pri to sec), 3500VDC(pri to core), 2500VDC(sec to core).
• Operating temperature range: -55 ℃ to +130 ℃, RoHs&HF compliant
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 35 | 45 | 41.5 | 33.0uH, 10%, 0.33mOhm to 24.54mOhm DCR, 13Amp, 16:1:1, DIP Half-bridge dual active LLC Transformer | Data Sheet | ||
| 35 | 45 | 41.5 | 129.0uH, 10%, 0.50mOhm to 24.54mOhm DCR, 13Amp, 16:2:2, DIP Half-bridge dual active LLC Transformer | Data Sheet | ||
| 35 | 45 | 41.5 | 129.0uH, 10%, 0.84mOhm to 24.54mOhm DCR, 13Amp, 16:3:3, DIP Half-bridge dual active LLC Transformer | Data Sheet | ||
| 35 | 45 | 41.5 | 129.0uH, 10%, 0.99mOhm to 24.54mOhm DCR, 13Amp, 16:4:4, DIP Half-bridge dual active LLC Transformer | Data Sheet |
