Switch Mode Power Supplies

T201210A

Flyback Transformer 120.0uH, 10%, 150.0mOhm, 4.0Amp Isat ITG P/N T201210A-007 ( Flyback Transformer) and C201517BQ-103(10mH common mode choke)are designed and developed for ST USB-PD 65 W Active Clamp Flyback (ACF) converter board with ST STACF01 controllerST P/N EVLSTACF01-65WU.

L30509

L301314A

69.63uH to 300.00uH, 18.5mOhm to 170mOhm, 3.8A to 1.8A. DIP Toroidal Inductor

L301308

105uH-7.0mH, 10%, 14.5mOhm-1100mOhm, 25.0A-3.0A Max. Toroid DIP.

L301307

1.8mH-7.0mH, 10%, 125.0mOhm-650.0mOhm, 1.5A, 0.7A MAX. Toriod DIP

L201314A

100.00uH to 1000.00uH, 26.00mOhm to 950mOhm, 3.2A to 1.0A. DIP Toroidal Inductor. Custom Values are welcomed.

AP1184xxx

High Power through hole Toroidal Inductor for Switch Mode Power Supplies application, 200uH to 300uH 12 Amp Max. Custom Values are welcomed.

AP11681xxx

High Power through hole Toroidal Inductor for Switch Mode Power Supplies application, 200uH to 300uH,10.5 Amp Max. Custom Values are welcomed.

AP1157xxx

200uH to 300uH, 20% , 42.61mOhm to 54.62mOhm, 9.5Amp to 7.5Amp DIP Toroidal Inductor

AP1106xxx

150uH to 300uH, 20% , 25.1mOhm to 49.5mOhm, 6.0Amp to 4.2Amp DIP Toroidal Inductor.

AP

High Power through hole Toroidal Inductor for output chokes application, 0.5uH to 4.5uH Custom Values are welcomed.

AKU1416200160F-3R7MU

DIP Choke Coil Inductor in 16.5x7.0mm foot print. Inductance : 3.7uH

AK

0.68uH to 2.2uH, 20%, 2.2mOhm to 5mOhm DIP Rod Chokes

L30864

Inductor, 1.42mH, 35.0A, 42.0mΩDCR.

L30762

Inductor, 1,100uH (1.1mH), 15.0A, 120.0mΩ DCR.

L30750

L30742

L30741

L30649

Inductor, 1,500uH, 12.0A, 70.0mΩ DCR.

L30648

Inductor, 1.50mH, 10.0A, 75.0mΩ DCR.

L30647

Inductor, 2.0mH,10.0A, 80.0mΩ DCR.

L30640

L30638

L30584

L30568

L30544

L30541

L30539

L30536

L30535

L30526

L30432

L30431

L301055

Inductor,0.78 mH, 40.0A, 35.0mΩ DCR.

SLM705918A

0.5uH-2.5uH, 20%, 0.55mOhm, 160A-24A Max. SMD Power Bead

SLA40407A

0.10uH to 0.33uH, 15%, 0.125mOhm, 128.0Amp to 40Amp SMD Power bead.

SL4128

0.12uH to 0.39uH, 10% or 15%, 0.29mOhm, 88.0Amp to 28.0Amp SMD Power bead.

AH42328C

100nH, 10%, 0.18mOhm, 125A Max. Power Bead SMD

PFC433835D

Power Factor Correction Chokes 90.0uH to 285.0uH, 20% , 6.0mOhm to 18.2mOhm, 49.6Amp to 28.1Amp

PFC433835B

Power Factor Correction Chokes 90.0uH to 285.0uH, 20% , 6.0mOhm to 18.2mOhm, 50.0Amp to 28.3Amp

PFC423938B

Power Factor Correction Chokes 160.0uH, 20% , 7.9mOhm, 45.0Amp

PFC383637D

Power Factor Correction Chokes 185.0uH to 360.0uH, 20% , 11.0mOhm to 22.0mOhm, 32.2Amp to 23.2Amp

PFC383637B

Power Factor Correction Chokes 185.0uH to 360.0uH, 20% , 11.0mOhm to 22.0mOhm, 32.4Amp to 23.3Amp

PFC333236D

Power Factor Correction Chokes 240.0uH to 360.0uH, 20% , 16.5mOhm to 25.0mOhm, 25.0Amp to 20.3Amp

PFC333236B

Power Factor Correction Chokes 240.0uH to 360.0uH, 20% , 16.5mOhm to 25.0mOhm, 27.3Amp to 22.1Amp

PFC333232DH

Power Factor Correction Chokes 82.0uH to 1600.0uH, 10% , 22.5mOhm to 466.2mOhm, 41.9Amp to 9.6Amp

PFC282829D

Power Factor Correction Chokes 115.0uH to 700.0uH, 20% , 11.9mOhm to 86.0mOhm, 27.3Amp to 11.2Amp

PFC282829B

Power Factor Correction Chokes 115.0uH to 770.0uH, 20% , 11.9mOhm to 86.0mOhm, 28.0Amp to 11.5Amp

PFC282822D

Power Factor Correction Chokes 175.0uH to 380.0uH, 20% , 23.8mOhm to 56.3mOhm, 20.3Amp to 13.9Amp

PFC282822B

Power Factor Correction Chokes 175.0uH to 380.0uH, 20% , 23.8mOhm to 56.3mOhm, 20.4Amp to 14.0Amp

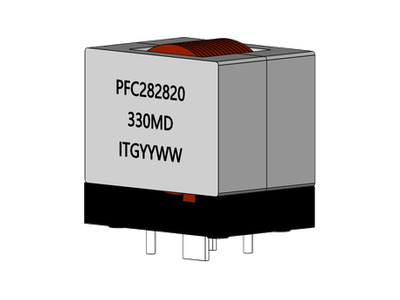

PFC282820D

Power Factor Correction Chokes 33.0uH to 330.0uH, 20% , 4.5mOhm to 51.6mOhm, 45.7Amp to 14.5Amp

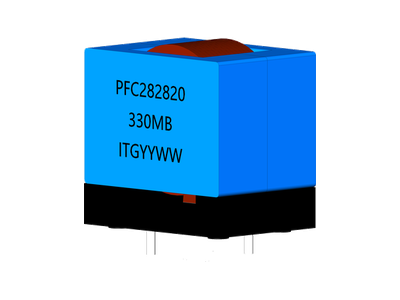

PFC282820B

Power Factor Correction Chokes 33.0uH to 330.0uH, 20% , 4.5mOhm to 51.6mOhm, 46.0Amp to 14.6Amp

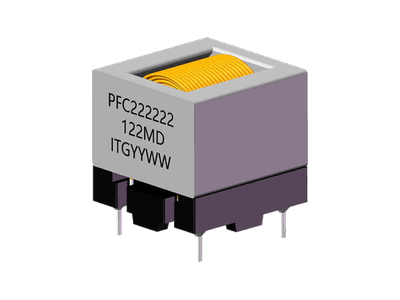

PFC222222D

Power Factor Correction Chokes 260.0uH to 4500.0uH, 20% , 61.2mOhm to 1548.0mOhm, 12.4Amp to 3.0Amp

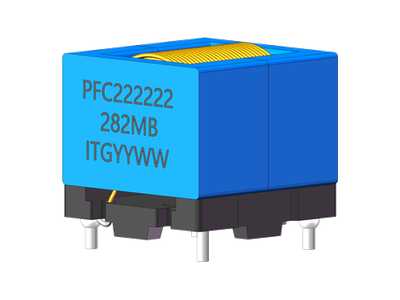

PFC222222B

Power Factor Correction Chokes 260.0uH to 4500.0uH, 20% , 61.2mOhm to 1548.0mOhm, 12.9Amp to 3.1Amp

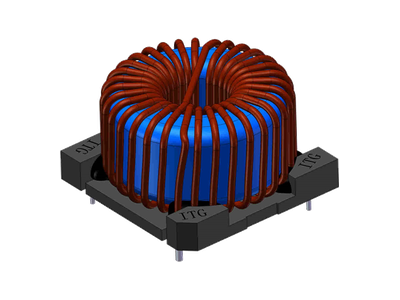

PFC219167D

Power Factor Correction Chokes 107.0uH to 2200.0uH, 10% , 12.5mOhm to 170.0mOhm, 61.0Amp to 13.2Amp

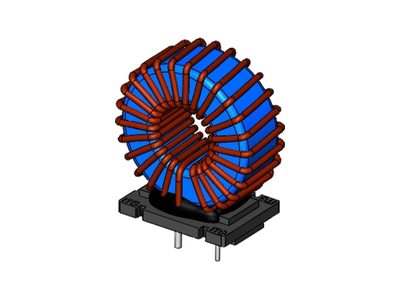

PFC212236D

Power Factor Correction Chokes 105.0uH to 1000.0uH, 10% , 14.5mOhm to 106.5mOhm, 52.3Amp to 17.0Amp

PFC212236A

105uH to 1000uH, 10% , 14.5mOhm to 106.5mOhm, 55.5Amp to 18.0Amp DIP PFC Chokes.

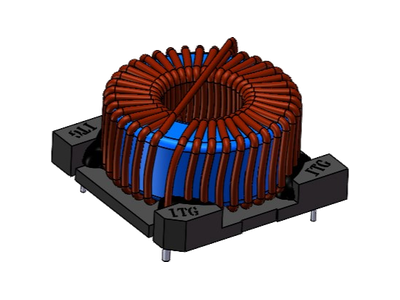

PFC212138D

105uH to 1000uH, 10% , 14.5mOhm to 106.5mOhm, 52.3Amp to 17.0Amp DIP PFC Chokes.

PFC212138A

105uH to 1000uH, 10% , 14.5mOhm to 106.5mOhm, 55.5Amp to 18.0Amp DIP PFC Chokes.

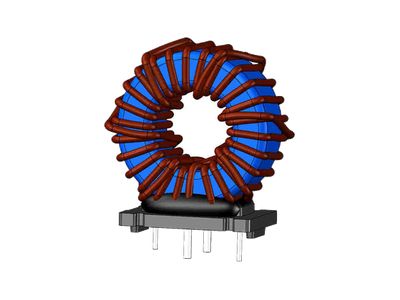

PFC199224D

Power Factor Correction Chokes 100.0uH to 1000.0uH, 10% , 13.8mOhm to 121.5mOhm, 45.3Amp to 14.3Amp

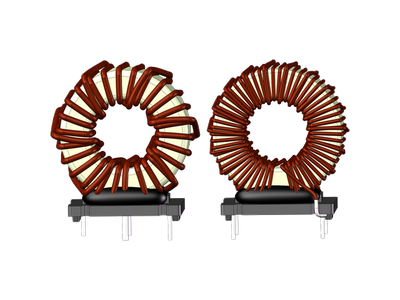

PFC199224B

Power Factor Correction Chokes 100.0uH to 1000.0uH, 10% , 13.8mOhm to 121.5mOhm, 46.6Amp to 14.9Amp

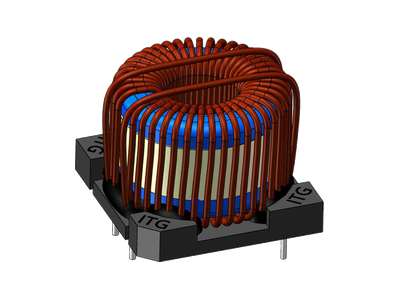

PFC183213D

Power Factor Correction Chokes 210.0uH to 500.0uH, 10% , 21.5mOhm to 42.0mOhm, 37.1Amp to 24.0Amp

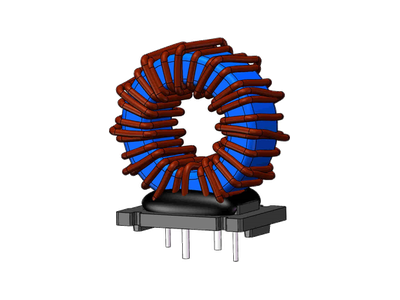

PFC183209D

Power Factor Correction Chokes 100.0uH to 1000.0uH, 10% , 17.0mOhm to 183.0mOhm, 38.4Amp to 12.1Amp

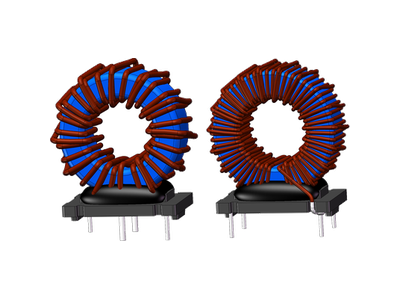

PFC183209B

Power Factor Correction Chokes 100.0uH to 1000.0uH, 10% , 17.0mOhm to 183.0mOhm, 39.8Amp to 12.5Amp

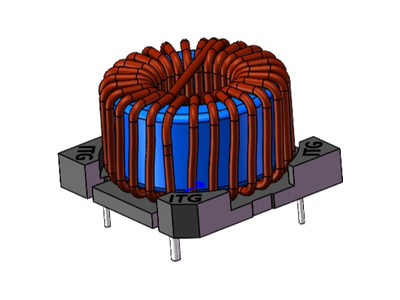

PFC173136D

Power Factor Correction Chokes 104uH to 2200uH, 10% , 17.3mOhm to 305mOhm, 37.1Amp to 7.8Amp

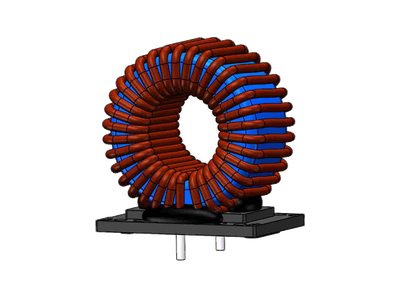

PFC171193D

Power Factor Correction Chokes 104uH to 2200uH, 10% , 17.3mOhm to 305mOhm, 37.1Amp to 7.8Amp

PFC167193D

Power Factor Correction Chokes 100.0uH to 1000.0uH, 10% , 20.5mOhm to 228.5mOhm, 28.5Amp to 9.1Amp

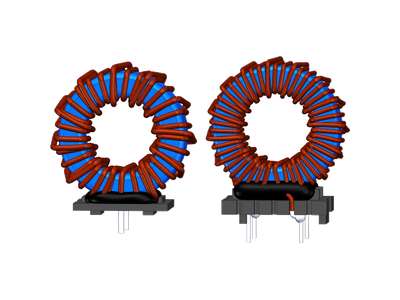

PFC167193B

Power Factor Correction Chokes 100.0uH to 1000.0uH, 10% , 20.5mOhm to 228.5mOhm, 29.5Amp to 9.4Amp

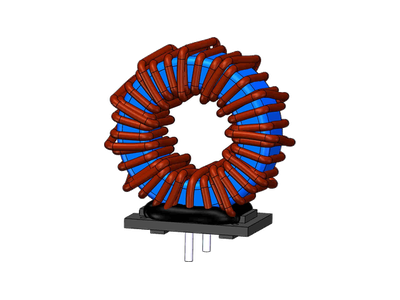

PFC157181D

Power Factor Correction Chokes 100.0uH to 1000.0uH, 10% , 20.0mOhm to 279.0mOhm, 27.1Amp to 8.6Amp

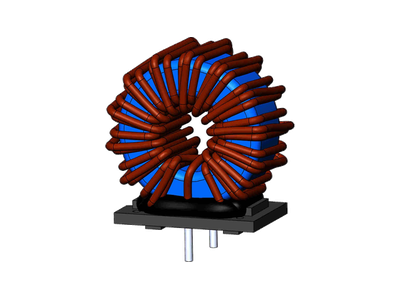

PFC130156D

Power Factor Correction Chokes 100.0uH to 1000.0uH, 10% , 23.0mOhm to 255.0mOhm, 23.4Amp to 7.4Amp

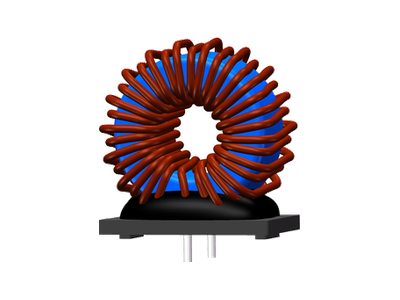

PFC130152D

Power Factor Correction Chokes 100.0uH to 1000.0uH, 10% , 22.6mOhm to 202.7mOhm, 26.2Amp to 8.2Amp

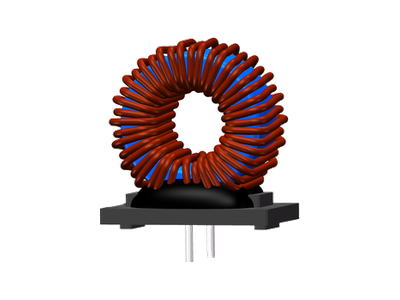

PFC114134D

Power Factor Correction Chokes 51.0uH to 1000.0uH, 10% , 16.4mOhm to 300.0mOhm, 26.6Amp to 6.0Amp

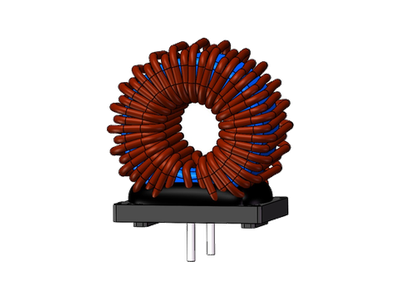

PFC104124D

Power Factor Correction Chokes 100.0uH to 1000.0uH, 10% , 40.0mOhm to 385.0mOhm, 16.1Amp to 5.1Amp

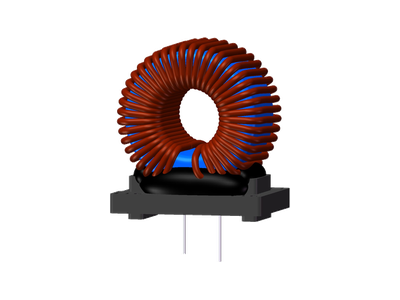

PFC087104D

Power Factor Correction Chokes 100.0uH to 1000.0uH, 10% , 54.0mOhm to 530.0mOhm, 14.4Amp to 4.5Amp

PFC02473452DV

220uH to 250uH, 20%, 51.4mOhm to 72.0mOhm, 16.8Amp to 16.5Amp DIP PFC Chokes.

PFC02454440DH

220uH to 250uH, 20% , 81.36mOhm to 80.78mOhm, 14Amp to 12Amp DIP PFC Chokes.

PFC01403925DV

155uH to 220uH, 20%, 66.3mOhm to 135.0mOhm, 14.0Amp to 13.7Amp DIP PFC Chokes.

L30439-1

Inductor, 507uH, 18A, 55mΩ DCR

L201316Q

1.0uH - 290.0uH, 20%, 0.21mOhm - 21.0mOhm, 98.0A - 15.0A Max. Flatwire DIP Inductor

SM5018A

0.15uH to 47.0uH, 20%, 0.35mOhm to 90.5mOhm, 75.0Amp to 5.0Amp SMD Molded Inductor.

SQ4331

0.4uH to 1.0uH, 20%, 0.91mOhm to 1.76mOhm, 43.0Amp to 26.0Amp SMD Flat Wire Inductor.

PQ87

0.47uH to 2.2uH, 20% or 15%, 0.73mOhm to 1.75mOhm, 40Amp to 33Amp SMD Flat Wire Inductor

PQ108081H

100.0uH to 1000.0uH, 20%, 28.5mOhm to 206.0mOhm, 10.3Amp to 3.1Amp SMD Flat Wire Inductor.

PQ108081

3.3uH to 560uH, 20%, 2.5mOhm to 95.0mOhm, 89.0Amp to 4.0Amp SMD Flat Wire Inductor.

L30927

3.3uH to 33.0uH, 10% , 2.3mOhm, 108Amp to 10.3Amp DIP Flat Wire Inductor.

L301316

0.96uH to 11.60uH, 20%, 0.25mOhm to 1.00mOhm DCR, 100A to 75A Isat. DIP Flat Wire Inductor

L201316

0.96uH - 11.60uH, 20%, 0.25mOhm - 1.0mOhm, 100.0A - 75.0A Max. Flatwire DIP Inductor

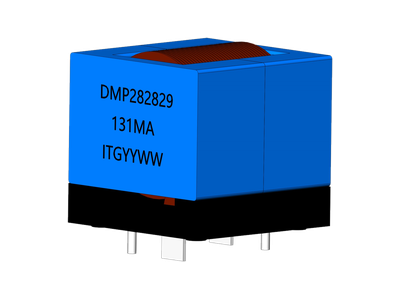

DMP282829A

115.0uH to 700.0uH, 20%, 11.9mOhm to 86.0mOhm, 16.8Amp to 6.9Amp DIP Flat Wire Inductor

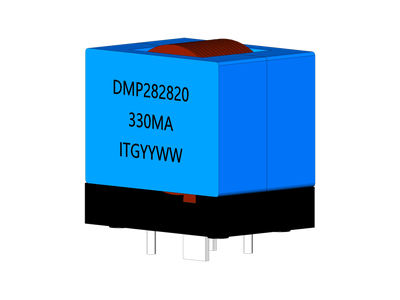

DMP282820A

33.0uH to 330.0uH, 20%, 4.5mOhm to 51.6mOhm, 27.6Amp to 8.7Amp DIP Flat Wire Inductor

F1504A015B

Custom Power Entry EMI Filter 15 Amp with Fast-On Terminal.

SCH4744T

3.3uH to 1000.0uH, 20% or 10%, 7mOhm to 1525mOhm, 14.0Amp to 0.84Amp DIP Drum Inductor.

SCH3753T

3.3uH to 1000.0uH, 20% or 10%, 9mOhm to 1469mOhm, 11.7Amp to 0.7Amp DIP Drum Inductor

SCH3539T

1.0uH to 1000.0uH, 20% or 10%, 4.5mOhm to 2050mOhm, 21.0Amp to 0.72Amp DIP Drum Inductor.

SCH3532T

3.3uH to 1000.0uH, 20% or 10%, 15mOhm to 3800mOhm, 12.3Amp to 0.72Amp DIP Drum Inductor.

SCH3524T

3.3uH to 1000.0uH, 20% or 10%, 20mOhm to 5000mOhm, 8.5Amp to 0.5Amp DIP Drum Inductor.

SCH3028T

3.3uH to 1000.0uH, 20% or 10%, 13mOhm to 3400mOhm, 5.5Amp to 0.34Amp DIP Drum Inductor.

SCH2433T

3.3uH to 1000.0uH, 20% or 10%, 17mOhm to 5626mOhm, 6.0Amp to 0.35Amp DIP Drum Inductor.

DX

3.3uH to 82000.0uH, 10%, 7.0mOhm to 48300.0mOhm, 4Amp to 0.039Amp DIP Drum Inductor

DR4044

1.0uH to 2200.0uH, 5% to 20%, 5.2mOhm to 5800.0mOhm, 10Amp to 0.45Amp DIP Drum Inductor

L301152

Common Mode Choke, 2.9mH, 6.0mΩ DCR

FCM897316A-240

240.0Z, 30%, 0.10mOhm, 105.0A Max. DIP Common Mode Choke

FCM426114A-180

Z: 180.0 Ohm, 0.215mOhm, 60.0A Max. DIP Common Mode Choke

FCM332813SH

6mH to 15mH, 20%, 53mOhm to 220mOhm SMD Common Mode Choke

DCN181713H

Nanocrystalline Common Mode Chokes Ideally used for AC circuits, and noise filter for TV and VCR.

DCN181320V

Nanocrystalline Common Mode Chokes Ideally used for AC circuits, and noise filter for TV and VCR.

DCM372645VC

3.5mH to 90.0mH, 45mOhm to 910mOhm, 8.2Amp to 1.85Amp DIP Common Mode Chokes

DCM372645VB

3.5mH to 90.0mH, 55mOhm to 1100mOhm, 7.5Amp to 1.7Amp DIP Common Mode Chokes

DCM333320H

1.8mH to 27mH, 30%, 0.036mOhm to 0.4mOhm, 6Amp to 1.6Amp DIP Common Mode Chokes

DCM321835V

1.8mH to 27.0mH, 30%, 36mOhm to 400mOhm, 6.0Amp to 1.6Amp DIP Common Mode Chokes

DCM282818H

2.2mH to 25.0mH, 30%, 34mOhm to 430mOhm, 6.0Amp to 1.5Amp DIP Common Mode Chokes

DCM251515H

10.0mH to 100.0mH, 30% to 50%, 260mOhm to 2670mOhm, 1.6Amp to 0.45Amp DIP Common Mode Chokes

DCM232315H

1.0mH to 20.0mH, 30%, 35mOhm to 520mOhm, 5.0Amp to 0.7Amp DIP Common Mode Chokes

DCM211714H

Common Mode Choke 10.5mH,1.8 Amp, 180.0mΩ.

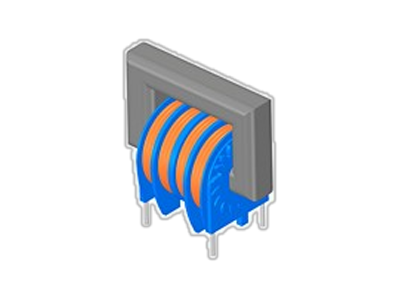

DCM211521V-273U

DIP Common Mode Choke 27.0mH, 0.7Amp, 1.0Ω.

DCM191320V

3.5mH to 47mH, 30%, 0.23Ohm to 2.75Ohm, 1.8Amp to 0.35Amp DIP Common Mode Chokes

DCM181713H

0.7mH to 39.0mH, 30%, 27mOhm to 1700mOhm, 5.0Amp to 0.3Amp DIP Common Mode Chokes

C30540

3.0mH to 4.5mH, 2.6mOhm to 3.5mOhm, 45Amp to 40Amp DIP Common Mode Chokes

C30530

9.0mH to 65.0mH, 8.5mOhm to 138mOhm, 14.5Amp to 1.7Amp DIP Common Mode Chokes

C301369H

103.30uH - 464.40uH, 30%, 2.35mOhm - 3.80mOhm, 26.0A -20.5A Max. DIP Common Mode Choke

C301369

2.5mH to 10.0mH, 23.0mOhm to 44.0mOhm, 8.2A to 6.0A Max. DIP Common Mode Choke

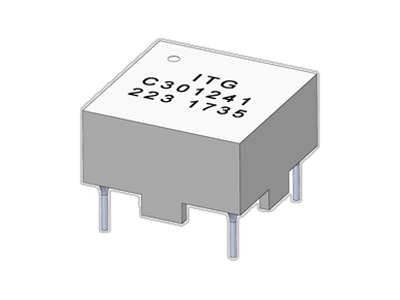

C301241

1.1mH～22.0mH, 0.3A-2A, through hole common mode choke

C20882

1.5mH to 30.0mH, 0.125Ohm to 2.5Ohm, 1.9Amp to 0.4Amp DIP Common Mode Chokes

C20881

3.3mH to 51.0mH, 0.71Ohm to 9.12Ohm, 0.65Amp to 0.15Amp DIP Common Mode Chokes

C20880

0.47mH to 10.0mH, 0.15Ohm to 4.0Ohm, 1.0Amp to 0.2Amp DIP Common Mode Chokes

C20540

3.0mH to 4.5mH, 2.6mOhm to 3.5mOhm, 45Amp to 40Amp DIP Common Mode Chokes

C20530A

4.5mH to 65.0mH, 5.6mOhm to 138.0mOhm, 17.0Amp to 2.8Amp DIP Common Mode Chokes

C20200

1mH to 50mH, 0.01Ohm to 0.45Ohm, 25Amp to 1.0Amp DIP Common Mode Chokes

C201426A

1.0mH-39.0mH, 30%,45.0mOhm-2700.0mOhm, 2.0A-0.3A Max. DIP Common Mode Choke

C201419A

12.3uH, 0.75mOhm, 44.0A Max. DIP Common Mode Choke

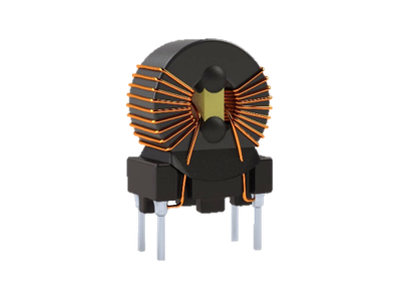

C201388A

0.35mH - 11.0mH, +50% / -30%, 9.0mOhm - 170.0mOhm, 6.5A - 1.5A Max. DIP Common Mode Choke

C201371A

0.4mH-11.0mH, 40%, 20.0mOhm-380.0mOhm, 4.5A-0.9A Max. DIP Common Mode Choke

C201368A

1.0mH-5.0mH, 30%, 8.5mOhm-54mOhm, 11.0A-5.0A Max. DIP Common Mode Choke

C201367A

1.0mH-5.0mH, 30%, 8.0mOhm-45.0mOhm, 12.0A-5.0A Max. DIP Common Mode Choke

C201305A

1.0mH to 47.0mH, 3.0mOhm to 180.0mOhm, 15.0Amp to 2.0Amp DIP Common Mode Chokes

C201041-1P

COMMON MODE CHOKE ,1.3mH ,8.5mΩDCR

C201021A

1.0mH-20.0mH, 30%, 30.0mOhm-540.0mOhm, 3.0A-0.5A Max. DIP Common Mode Choke

C101168

SMD Common Mode Choke,9.0uH,15.0mΩ DCR

C101167

SMD Common Mode Choke,11.0uH,30.0mΩ DCR

DMP222222A

260.0uH to 4500.0uH, 20%, 61.2mOhm to 1548.0mOhm, 7.1Amp to 1.7Amp DIP Power Inductor

L41200T23

5.96uH Q = 19 Typical at 100Khz Wireless Charging Transmission Coil
