- DIP

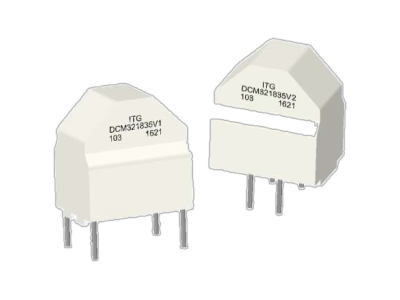

DCM321835V Series
• 32.5×18.5mm Max.(L×W),35.5mm Max. Height.
• Inductance range: 1.80mH～27.0mH, Custom values are welcomed.
• Ideally used as AC common mode noise filter for TV, VCR, switch mode power supply, inverter, industrial equipment, attenuation and control unit with better characteristics in low frequency band.
• Dielectric strength: 1500Vrms, winding to winding.
• UL Class B Compliant Common Mode Chokes.
• Two PCB Layouts (V1 & V2) for customer consideration.
• Operating temperature: -55℃ to +130℃.
• RoHS & HF compliant.
• Inductance range: 1.80mH～27.0mH, Custom values are welcomed.
• Ideally used as AC common mode noise filter for TV, VCR, switch mode power supply, inverter, industrial equipment, attenuation and control unit with better characteristics in low frequency band.
• Dielectric strength: 1500Vrms, winding to winding.
• UL Class B Compliant Common Mode Chokes.
• Two PCB Layouts (V1 & V2) for customer consideration.
• Operating temperature: -55℃ to +130℃.
• RoHS & HF compliant.
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 35.5 | 32.5 | 18.5 | 10,000uH, 30%, 155mOhm, 3Amp Max. DIP Common Mode Chokes | Data Sheet | ||
| 35.5 | 32.5 | 18.5 | 1,800uH, 30%, 36mOhm, 6Amp Max. DIP Common Mode Chokes | Data Sheet | ||
| 35.5 | 32.5 | 18.5 | 27,000uH, 30%, 400mOhm, 1.6Amp Max. DIP Common Mode Chokes | Data Sheet | ||
| 35.5 | 32.5 | 18.5 | 3,300uH, 30%, 70mOhm, 4Amp Max. DIP Common Mode Chokes | Data Sheet |
