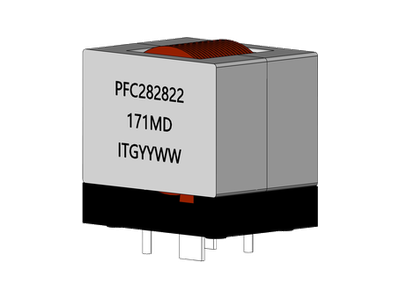

PFC282822D Series
• Alloy powder based DIP Inductor with lower core loss
• No thermal aging concerns
• Inductance Range: 175.0uH to 380.0uH, custom values are welcomed
• High current output chokes, up to 20.3 Amp with approx. 50% roll off
• Designed and developed for Power Factor Correction applications
• Foot Print: 27.5 x 21.5mm max., 28.0mm max. Height
• Surge Voltage: 400VDC
• Operating Temperature Range: -55°C to + 150°C
• RoHs & HF compliant
• MTBF = 2,083,333,333 hours, FIT = 0.48 ( per billions hour ) per Telcordia SR-332
• No thermal aging concerns
• Inductance Range: 175.0uH to 380.0uH, custom values are welcomed
• High current output chokes, up to 20.3 Amp with approx. 50% roll off
• Designed and developed for Power Factor Correction applications
• Foot Print: 27.5 x 21.5mm max., 28.0mm max. Height
• Surge Voltage: 400VDC
• Operating Temperature Range: -55°C to + 150°C
• RoHs & HF compliant
• MTBF = 2,083,333,333 hours, FIT = 0.48 ( per billions hour ) per Telcordia SR-332
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|
| 28 | 380 | 56.3 | 27.5 | 21.5 | Power Factor Correction Chokes 380.0uH, 13.9Amp, 56.3mOhm | Data Sheet | ||
| 28 | 175 | 23.8 | 27.5 | 21.5 | Power Factor Correction Chokes 175.0uH, 20.3Amp, 23.8mOhm | Data Sheet |
