- DIP

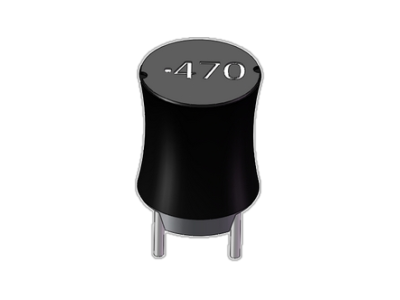

SCH3539T Series
• Radial leaded unshielded Drum Inductor.
• Low DC Resistance for high current application.
• With UL rated shrink sleeve wrap to protect the winding.
• Ideal for noise filtering, storage and DC
• DC convertor applications.
• Inductance Range of 3.3uH to 1000.0uH,Custom values are welcomed.
• Operating Temperature Range: -55°C to + 130°C , RoHS & HF compliant.
• Low DC Resistance for high current application.
• With UL rated shrink sleeve wrap to protect the winding.
• Ideal for noise filtering, storage and DC
• DC convertor applications.
• Inductance Range of 3.3uH to 1000.0uH,Custom values are welcomed.
• Operating Temperature Range: -55°C to + 130°C , RoHS & HF compliant.
| Part Number | Length (mm) Max | Height (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 9 | 10 | 9 | 10uH, 20%, 22mOhm, 7.5Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 10 | 9 | 100uH, 10%, 183mOhm, 2.3Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 10 | 9 | 1,000uH, 10%, 1,780mOhm, 0.72Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 10 | 9 | 12uH, 20%, 27mOhm, 6.8Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 10 | 9 | 120uH, 10%, 207mOhm, 2.1Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 10 | 9 | 15uH, 20%, 35mOhm, 6.1Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 10 | 9 | 150uH, 10%, 255mOhm, 1.9Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 10 | 9 | 18uH, 20%, 39mOhm, 5.5Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 10 | 9 | 180uH, 10%, 345mOhm, 1.8Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 10 | 9 | 1uH, 20%, 4.5mOhm, 21Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 10 | 9 | 22uH, 20%, 42mOhm, 5Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 10 | 9 | 220uH, 10%, 423mOhm, 1.5Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 10 | 9 | 27uH, 20%, 50mOhm, 4.5Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 10 | 9 | 2.2uH, 20%, 6.7mOhm, 14.5Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 10 | 9 | 33uH, 20%, 57mOhm, 4.2Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 10 | 9 | 330uH, 10%, 532mOhm, 1.35Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 10 | 9 | 39uH, 20%, 72mOhm, 3.5Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 10 | 9 | 3.3uH, 20%, 11mOhm, 12Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 10 | 9 | 47uH, 20%, 95mOhm, 3.4Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 10 | 9 | 470uH, 10%, 813mOhm, 1.15Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 10 | 9 | 4.7uH, 20%, 13mOhm, 10.5Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 10 | 9 | 56uH, 20%, 108mOhm, 3.25Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 10 | 9 | 560uH, 10%, 1050mOhm, 1Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 10 | 9 | 5.6uH, 20%, 15mOhm, 10Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 10 | 9 | 68uH, 20%, 138mOhm, 2.9Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 10 | 9 | 680uH, 10%, 1220mOhm, 0.9Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 10 | 9 | 6.8uH, 20%, 16mOhm, 9.2Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 10 | 9 | 82uH, 20%, 159mOhm, 2.7Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 10 | 9 | 820uH, 10%, 1,365mOhm, 0.82Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 10 | 9 | 8.2uH, 20%, 19mOhm, 8Amp Max. DIP Drum Inductor | Data Sheet |
