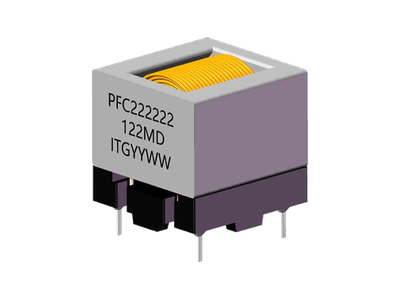

PFC222222D Series

• Alloy powder based DIP Inductor with lower core loss
• No thermal aging concerns
• Inductance Range: 260.0 uH to 4500.0 uH, custom values are welcomed
• High current output chokes, up to 12.4 Amp with approx. 50% roll off
• Designed and developed for Power Factor Correction applications
• Foot Print: 21.5 x 22.0mm max., 22.0mm max. Height
• Surge Voltage: 400VDC
• Operating Temperature Range: -55°C to + 150°C
• RoHs & HF compliant
• MTBF = 2,083,333,333 hours, FIT = 0.48 ( per billions hour ) per Telcordia SR-332

Data Sheet

Specification of PFC222222D Series

Library Sample Quotation Question

Part Number	Height (mm) Max	Inductance L (uH)	DCR @25℃ (mΩ)	Dimension L (mm) Max	Dimension W (mm) Max	Description	Download
PFC222222D-452MHF	22	4500	1548	21.5	22	Power Factor Correction Chokes 4500.0uH, 3.0Amp, 1548.0mOhm	Data Sheet
PFC222222D-282MHF	22	2800	960	21.5	22	Power Factor Correction Chokes 2800.0uH, 3.8Amp, 960.0mOhm	Data Sheet
PFC222222D-222MHF	22	2200	701	21.5	22	Power Factor Correction Chokes 2200.0uH, 4.3Amp, 701.0mOhm	Data Sheet
PFC222222D-152MHF	22	1500	558	21.5	22	Power Factor Correction Chokes 1500.0uH, 5.2Amp, 558.0mOhm	Data Sheet
PFC222222D-122MHF	22	1200	423	21.5	22	Power Factor Correction Chokes 1200.0uH, 5.8Amp, 423.0mOhm	Data Sheet
PFC222222D-102MHF	22	1000	384	21.5	22	Power Factor Correction Chokes 1000.0uH, 6.3Amp, 384.0mOhm	Data Sheet
PFC222222D-821MHF	22	820	288	21.5	22	Power Factor Correction Chokes 820.0uH, 7.0Amp, 288.0mOhm	Data Sheet
PFC222222D-561MHF	22	560	207	21.5	22	Power Factor Correction Chokes 560.0uH, 8.5Amp, 207.0mOhm	Data Sheet
PFC222222D-351MHF	22	350	138	21.5	22	Power Factor Correction Chokes 350.0uH, 10.7Amp, 138.0mOhm	Data Sheet	3D Step File
PFC222222D-261MHF	22	260	61.2	21.5	22	Power Factor Correction Chokes 260.0uH, 12.4Amp, 61.2mOhm	Data Sheet	3D Step File
