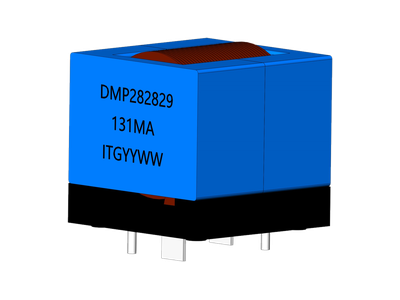

DMP282829A Series
• Alloy powder based DIP Inductor with lower core loss
• No thermal aging concerns
• Inductance Range: 115.0uH to 700.0uH, custom values are welcomed
• High current output chokes, up to 16.8 Amp with approx. 50% roll off
• Designed and developed for Power Factor Correction applications
• Foot Print: 27.5 x 28.5mm max., 28.0mm max. Height
• Surge Voltage: 400VDC
• Operating Temperature Range: -55°C to + 150°C
• RoHs & HF compliant
• MTBF = 2,083,333,333 hours, FIT = 0.48 ( per billions hour ) per Telcordia SR-332
• No thermal aging concerns
• Inductance Range: 115.0uH to 700.0uH, custom values are welcomed
• High current output chokes, up to 16.8 Amp with approx. 50% roll off
• Designed and developed for Power Factor Correction applications
• Foot Print: 27.5 x 28.5mm max., 28.0mm max. Height
• Surge Voltage: 400VDC
• Operating Temperature Range: -55°C to + 150°C
• RoHs & HF compliant
• MTBF = 2,083,333,333 hours, FIT = 0.48 ( per billions hour ) per Telcordia SR-332
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 28 | 27.5 | 28.5 | 115.0uH, 20%, 11.9mOhm, 16.8A Max. DIP Flat Wire Inductor | Data Sheet | ||
| 28 | 27.5 | 28.5 | 135.0uH, 20%, 14.0mOhm, 15.8A Max. DIP Flat Wire Inductor | Data Sheet | ||
| 28 | 27.5 | 28.5 | 210.0uH, 20%, 21.6mOhm, 12.6A Max. DIP Flat Wire Inductor | Data Sheet | ||
| 28 | 27.5 | 28.5 | 340.0uH, 20%, 36.6mOhm, 9.9A Max. DIP Flat Wire Inductor | Data Sheet | ||
| 28 | 27.5 | 28.5 | 700.0uH, 20%, 86.0mOhm, 6.9A Max. DIP Flat Wire Inductor | Data Sheet |
