- DIP

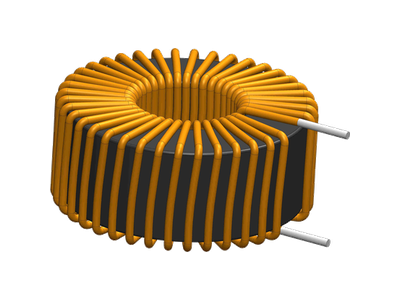

AP1184xxx Series
• Sendust core is used to realize lower core loss.
• No thermal aging concerns.
• Low leakage magnetic flux.
• Elimination for impulse (EMI) noise.
• Ideally used as Power Factor Correction choke.
• Also can be used as boost inductor in power supplies.
• Ø55.0 × 55.0 x 26.0mm Max. Custom values are welcomed.
• Operating Temperature Range -55°C to + 130°C; RoHs & HF compliance.
• No thermal aging concerns.
• Low leakage magnetic flux.
• Elimination for impulse (EMI) noise.
• Ideally used as Power Factor Correction choke.
• Also can be used as boost inductor in power supplies.
• Ø55.0 × 55.0 x 26.0mm Max. Custom values are welcomed.
• Operating Temperature Range -55°C to + 130°C; RoHs & HF compliance.
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download |
|---|---|---|---|---|---|
| 55 | 55 | 26 | 200uH, 20%, 24.14mOhm, 12Amp Max. DIP Toroidal Inductor | Data Sheet | |
| 55 | 55 | 26 | 220uH, 20%, 25.36mOhm, 11.5Amp Max. DIP Toroidal Inductor | Data Sheet | |
| 55 | 55 | 26 | 300uH, 20%, 29.92mOhm, 9.5Amp Max. DIP Toroidal Inductor | Data Sheet |
